Electric fields

EasyHard
123456789101112131415161718192021222324252627282930
Question 4
Easy

Two parallel, vertical metal plates are placed close to each other.

The left plate has a positive electric charge.

The right plate has a negative electric charge.

On Figure 1, draw at least three electric field lines between the two parallel plates and show the direction of this electric field.

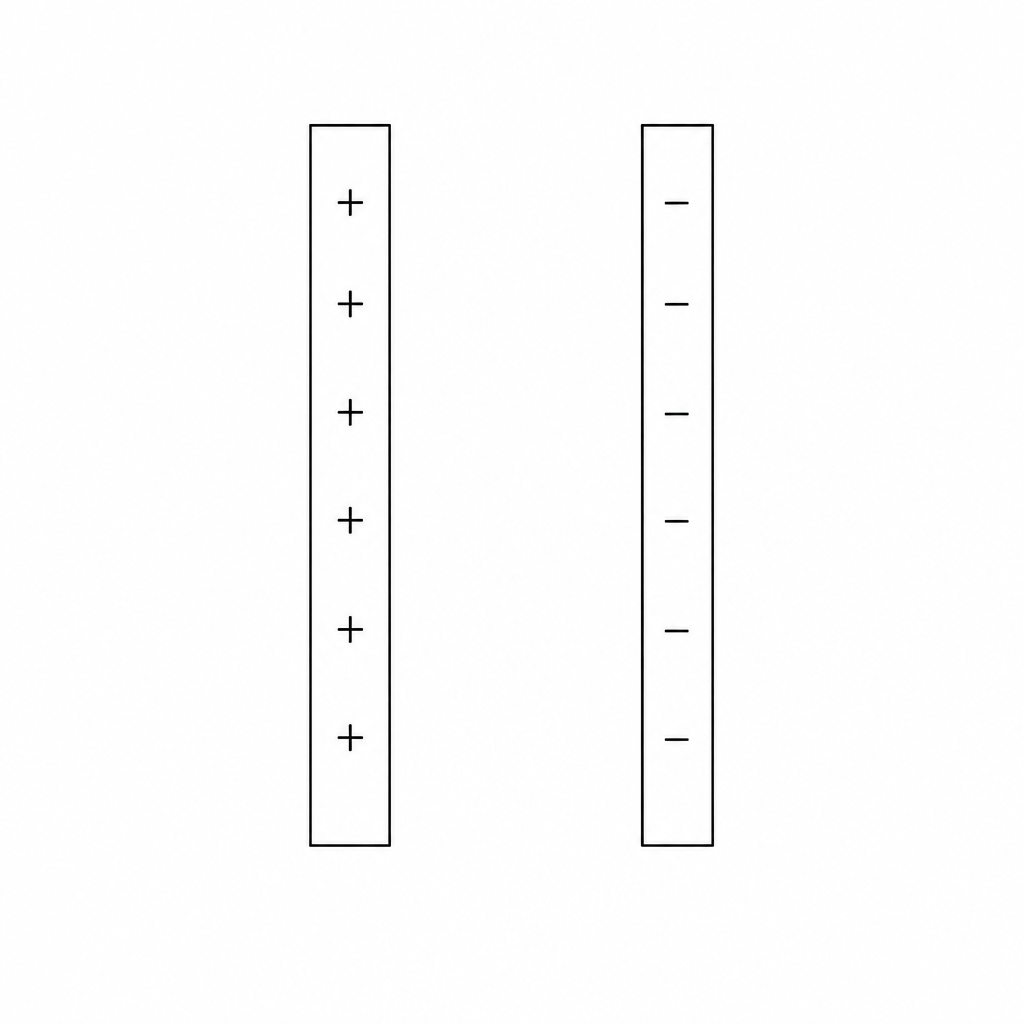

Figure 1 shows two parallel, vertically oriented metal plates separated by a gap. The plate on the left is labeled with several plus (+) symbols representing a positive charge. The plate on the right is labeled with several minus (-) symbols representing a negative charge.

[2]
