Figure 1 shows a pair of parallel, flat metal plates separated by an air gap.

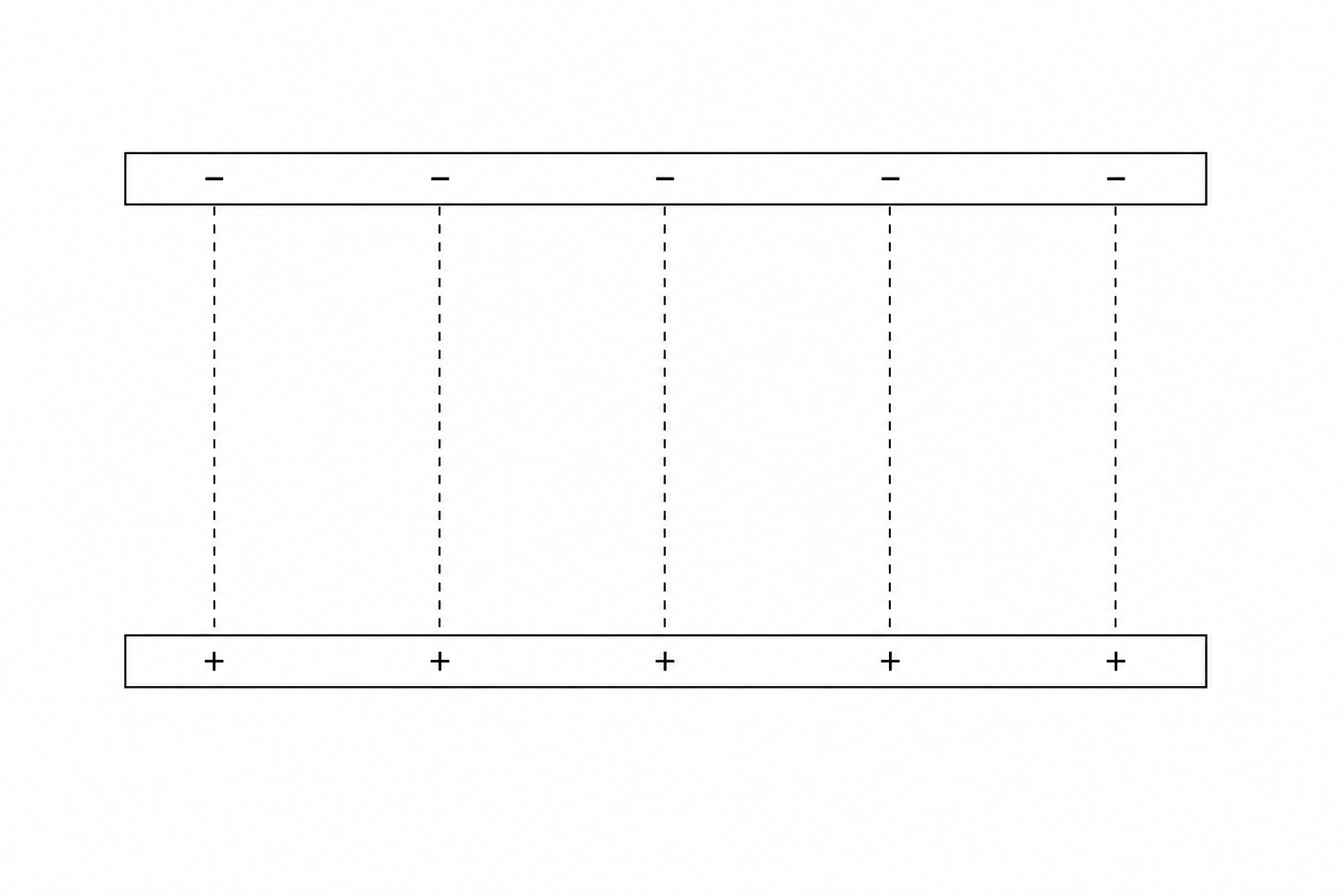

A diagram showing two parallel, flat metal plates separated by a horizontal gap. The upper horizontal plate is marked with five '-' signs, representing a net negative charge. The lower horizontal plate is marked with five '+' signs, representing a net positive charge. Several vertical dashed guidelines span the space between the plates to assist with drawing.

On Figure 1, draw at least three electric field lines to show the shape and direction of the electric field in the region between the plates.

[2]
