Question 10
Easy

Figure 1 shows two vertical, parallel metal plates that have been oppositely charged.

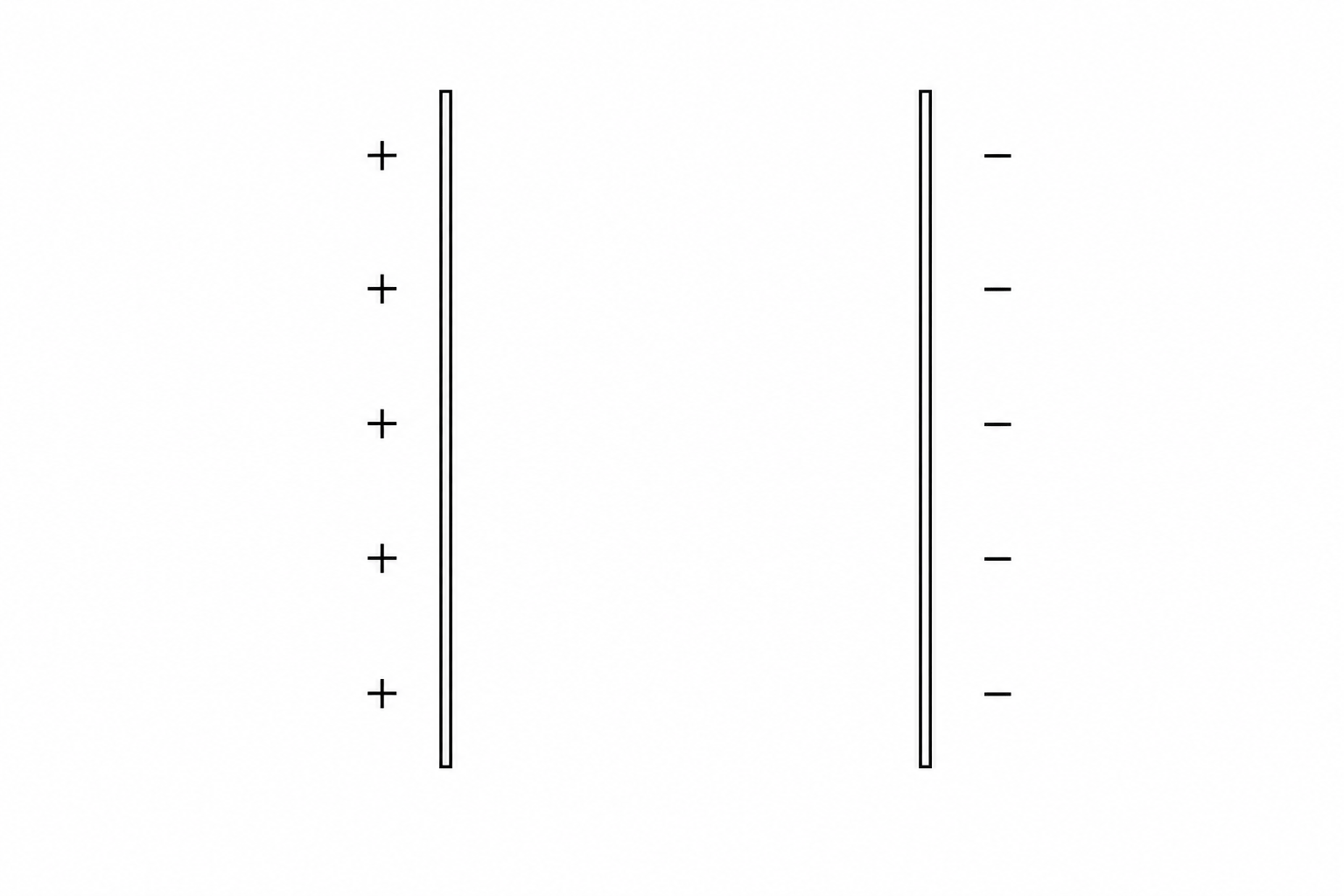

A diagram showing two vertical, parallel metal plates spaced a short distance apart. The left plate has several '+' signs next to it, indicating it is positively charged. The right plate has several '-' signs next to it, indicating it is negatively charged.

Draw on Figure 1 the shape and direction of the electric field between the plates.

[2]
