Question 10
Medium

A prototype wind turbine is installed inside an industrial ventilation shaft to harvest energy from flowing air.

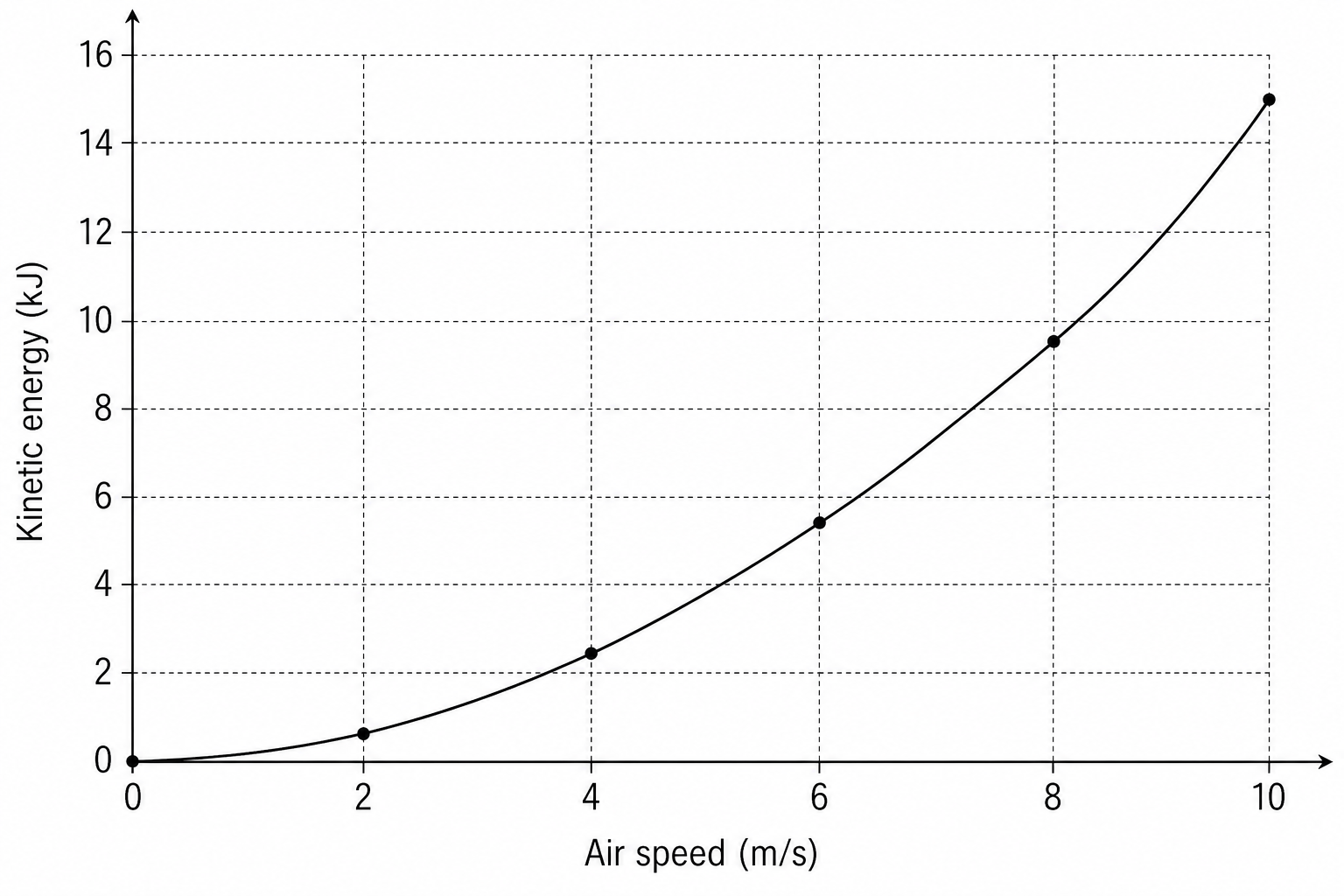

Figure 1 shows a graph of kinetic energy against air speed for a constant mass of moving air flowing through the ventilation shaft.

Figure 1: Kinetic energy against air speed

Air speed (m/s)Kinetic energy (kJ)
00.0
20.6
42.4
65.4
89.6
1015.0

Just before the air reaches the wind turbine, it has a speed of 10.0 m/s.

When the air has gone through the turbine, it has slowed down to a speed of 6.0 m/s.

As the air moves through the turbine, some of its kinetic energy is transferred to the turbine to generate electricity.

Use the information in Figure 1 to determine the percentage of the kinetic energy transferred to the turbine from the air.

[3]
