Question 15
Easy

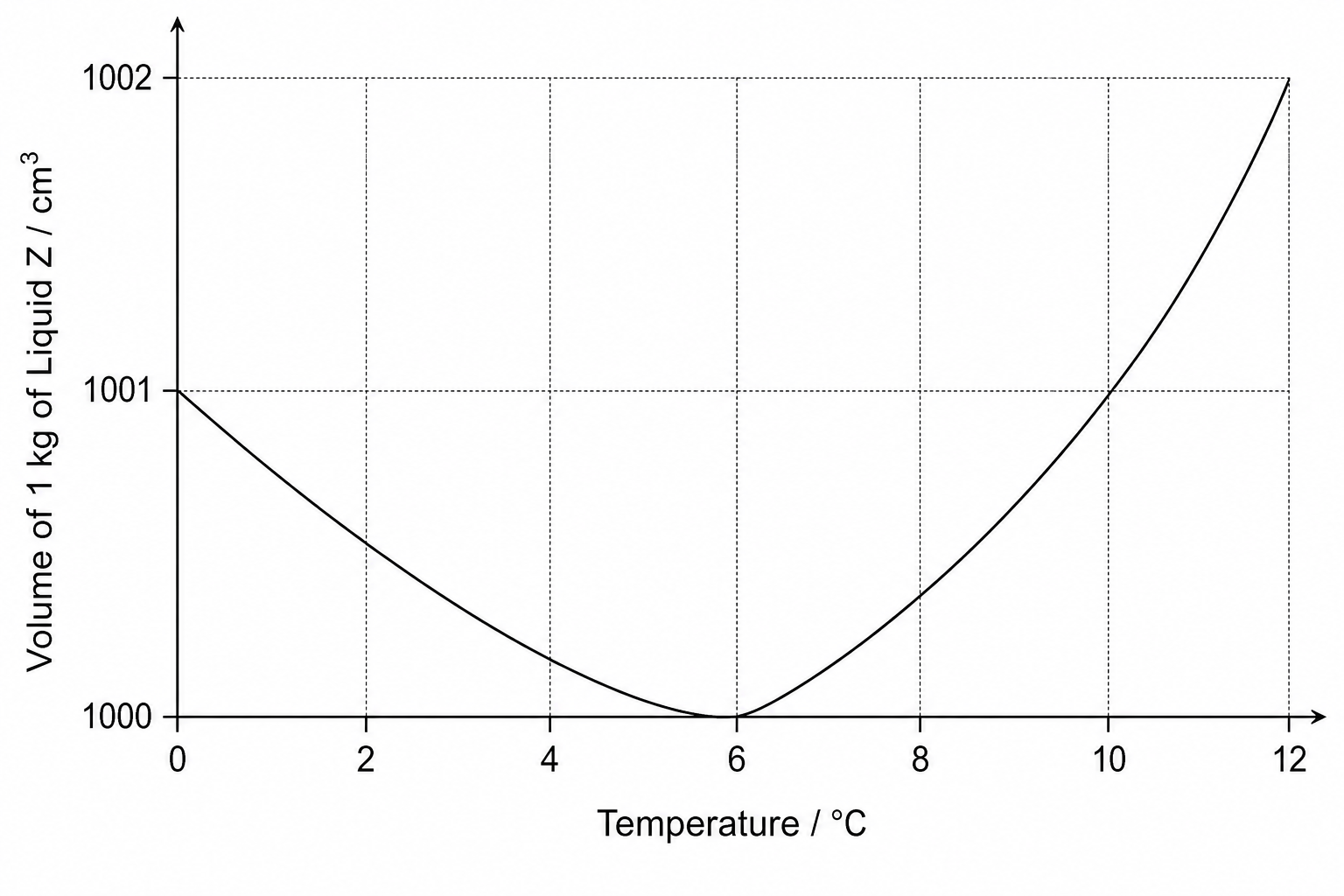

The graph below shows how the volume of 1 kg of a liquid, Liquid Z, changes with temperature.

A line graph showing the volume of 1 kg of Liquid Z in cm³ on the y-axis against temperature in °C on the x-axis, ranging from 0 to 12 °C. The curve starts at 1001 cm³ at 0 °C, decreases steadily to a minimum value of 1000 cm³ at 6 °C, and then increases steadily up to 1002 cm³ at 12 °C.

Describe how the density of Liquid Z changes with temperature over the range of temperature shown in the graph.

Calculations are not required.

[2]
