Question 13
Easy

Figure 1 shows an analogue voltmeter scale that can read up to 3 V.

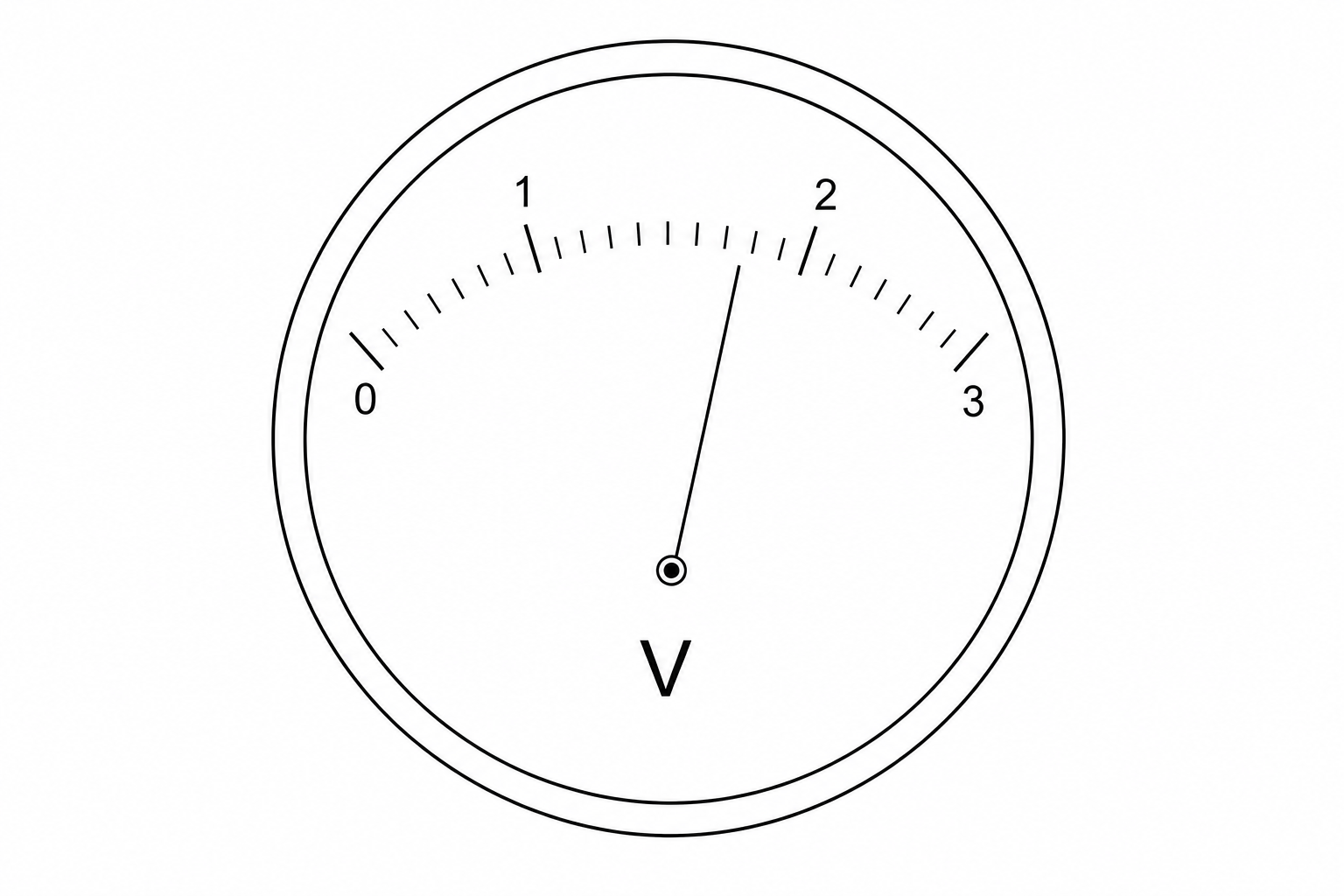

An analogue voltmeter scale ranging from 0 to 3 V. The major marked numbers are 0, 1, 2, and 3. Between each numbered mark, there are 10 equal subdivisions, which means each subdivision represents 0.1 V. The indicator needle points to the eighth small subdivision after the 1 V mark.

State the value of the potential difference shown on the voltmeter in Figure 1.

[1]
