Question 31

Easy

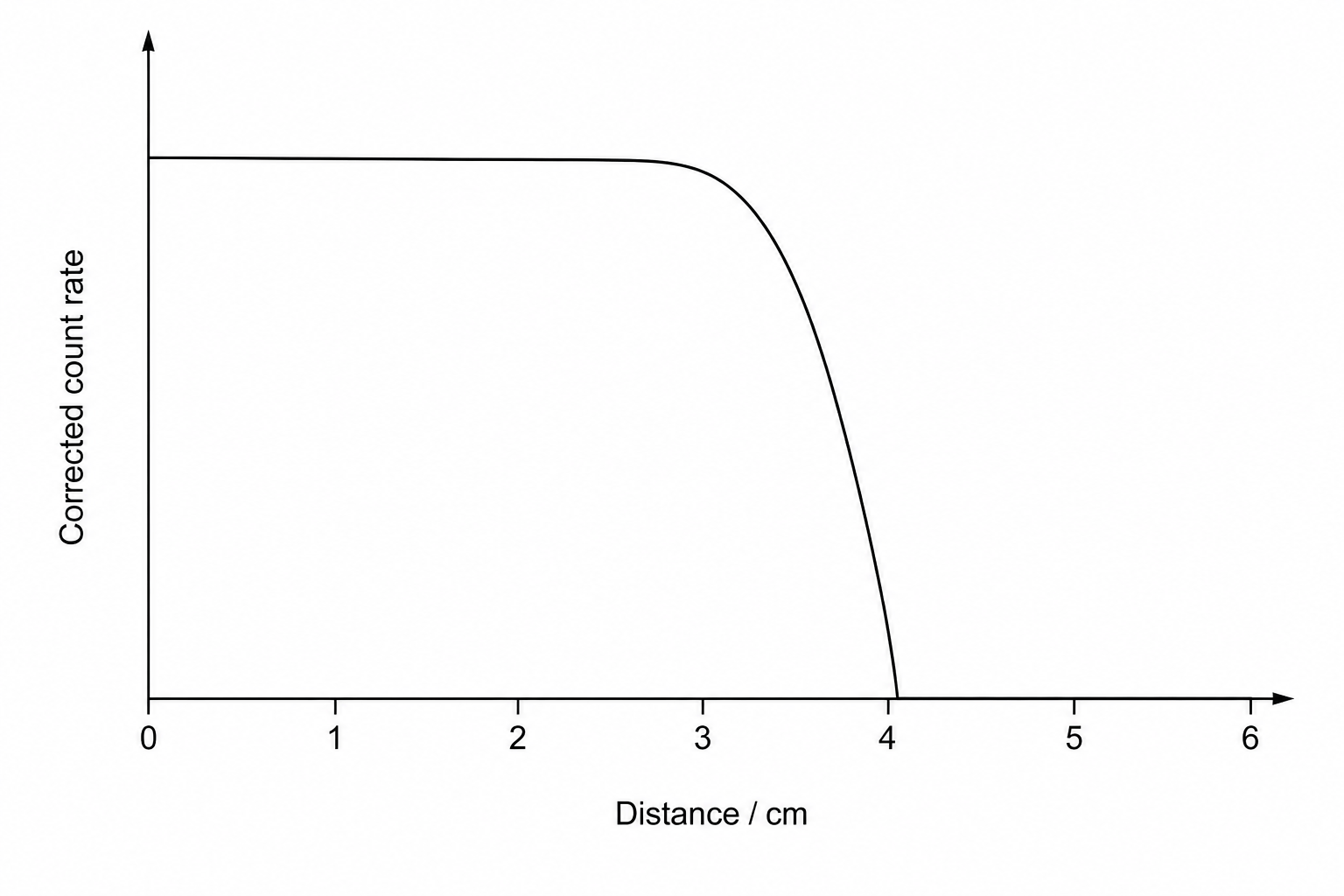

A student investigates the ionising radiation emitted by a radioisotope by measuring the corrected count rate at various distances in air using a Geiger-Müller (GM) tube. The results are shown in the graph below:

Alpha range graph

Which of the following correctly identifies the radiation type emitted by the source and its approximate maximum range in air under these conditions?

Radiation type: $β−\beta^-$ , Approximate maximum range: $mm4\text{ mm}$

Radiation type: $α\alpha$ , Approximate maximum range: $cm4\text{ cm}$

Radiation type: $β−\beta^-$ , Approximate maximum range: $m4\text{ m}$

Radiation type: $α\alpha$ , Approximate maximum range: $mm4\text{ mm}$
