Atomic structure and ionising radiation

EasyMedium
1234567891011121314151617181920212223242526272829303132333435363738394041424344454647484950515253545556575859606162636465666768697071727374
Question 12
Easy

A group of students are investigating a mechanical model of alpha particle scattering. They are provided with the apparatus shown in the diagram:

  • A flat paper sheet marked with parallel grid lines
  • A heavy brass cylinder at the center (representing a gold nucleus)
  • A small launching ramp that can be shifted sideways to vary the line of approach
  • A steel ball bearing
  • A protractor

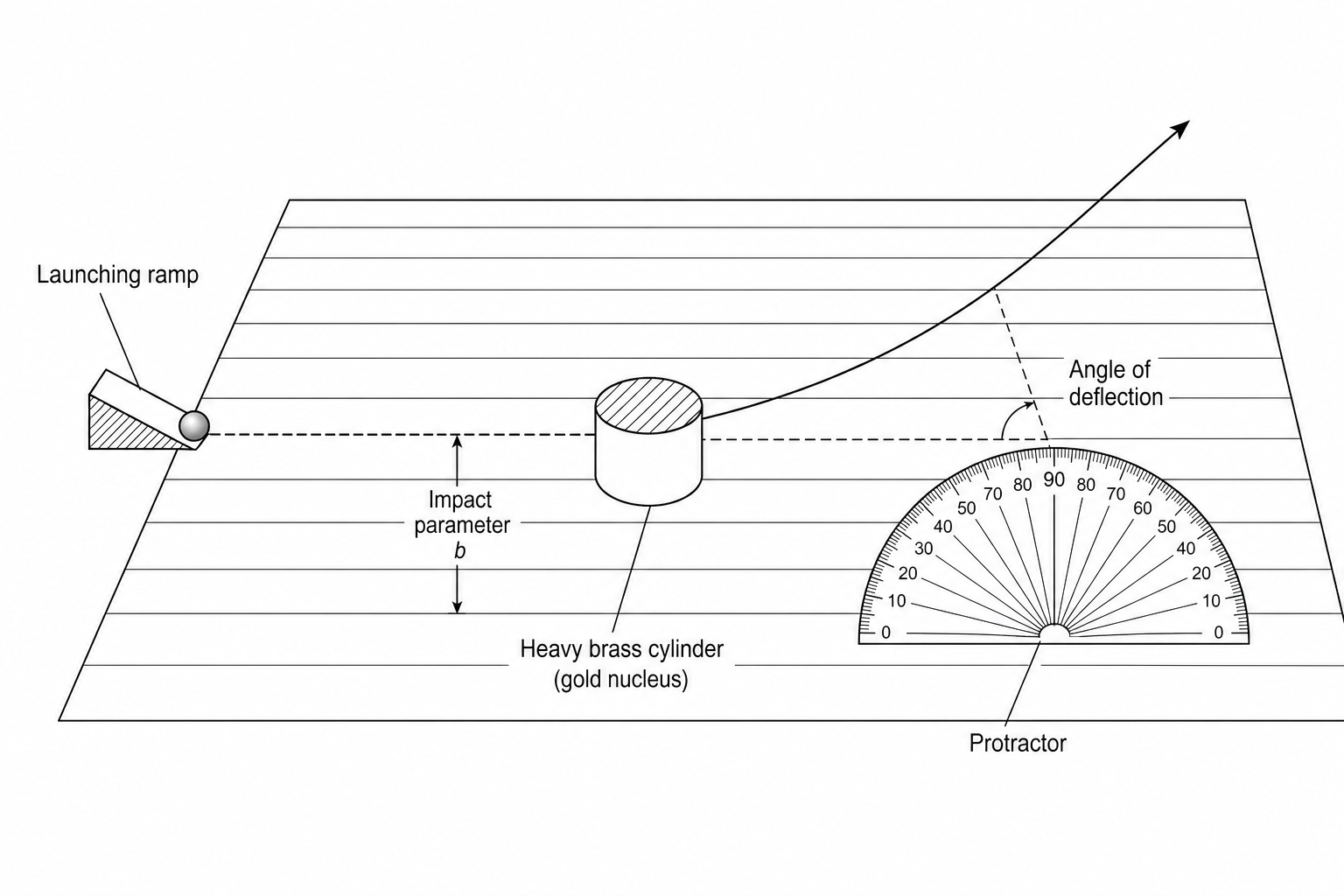

An experimental setup for modeling alpha scattering: A heavy brass cylinder is resting on a sheet of grid paper. A small inclined ramp is positioned to release a steel ball bearing towards the cylinder at different lateral offset distances. A protractor is placed on the paper to measure the angle of deflection of the ball bearing after it interacts with/rolls past the cylinder.

Describe how the students can use this apparatus to demonstrate how the angle of deflection of an alpha particle depends on its initial line of approach.

[2]

Atomic structure and ionising radiation Questions

  1. GCSE
  2. /Physics
  3. /Atomic structure and ionising radiation
