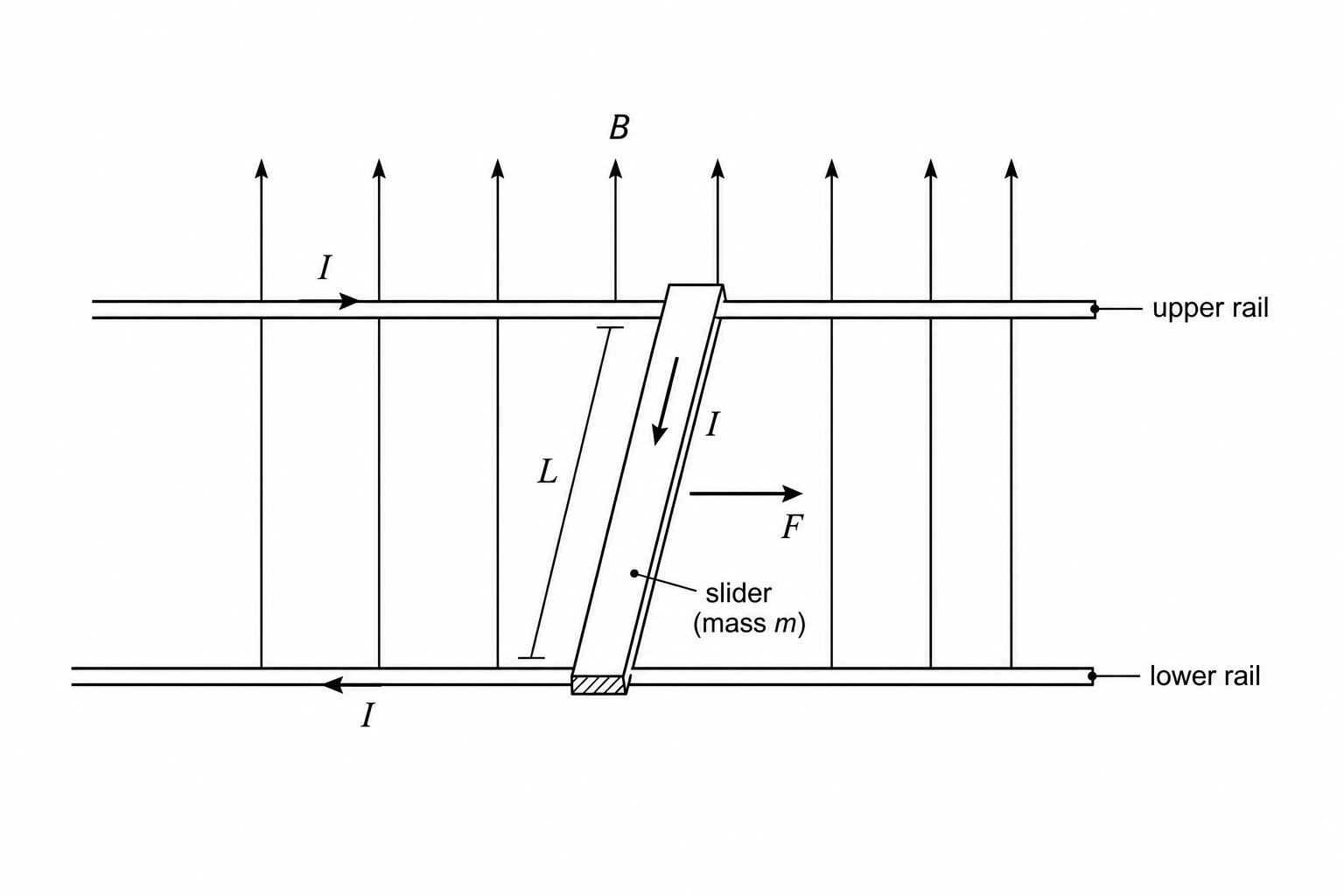

An experimental electromagnetic launcher consists of a conducting slider bridging two parallel horizontal guide rails, as shown in the diagram below.
A uniform vertical magnetic field of flux density B B\,B is directed upwards through the region containing the rails and the slider.
When a constant current is pulsed through the system, the slider accelerates uniformly from rest for a duration of 0.35 s before exiting the magnetic field.
You are given the following experimental parameters:
- Magnetic flux density, B=0.85 TB = 0.85\text{ T}B=0.85 T
- Constant current in the circuit, I=5.0 AI = 5.0\text{ A}I=5.0 A
- Effective length of the slider in the magnetic field, L=6.0 cmL = 6.0\text{ cm}L=6.0 cm
- Mass of the slider, m=15.0 gm = 15.0\text{ g}m=15.0 g
Calculate the maximum velocity of the slider as it exits the magnetic field, assuming resistance and friction are negligible.
