Question 7
H

A metal cube hangs from a string and is held fully submerged in water.

density of water = 1000 kg/m3

gravitational field strength, g=9.8 N/kgg = 9.8\ \text{N/kg}g=9.8 N/kg

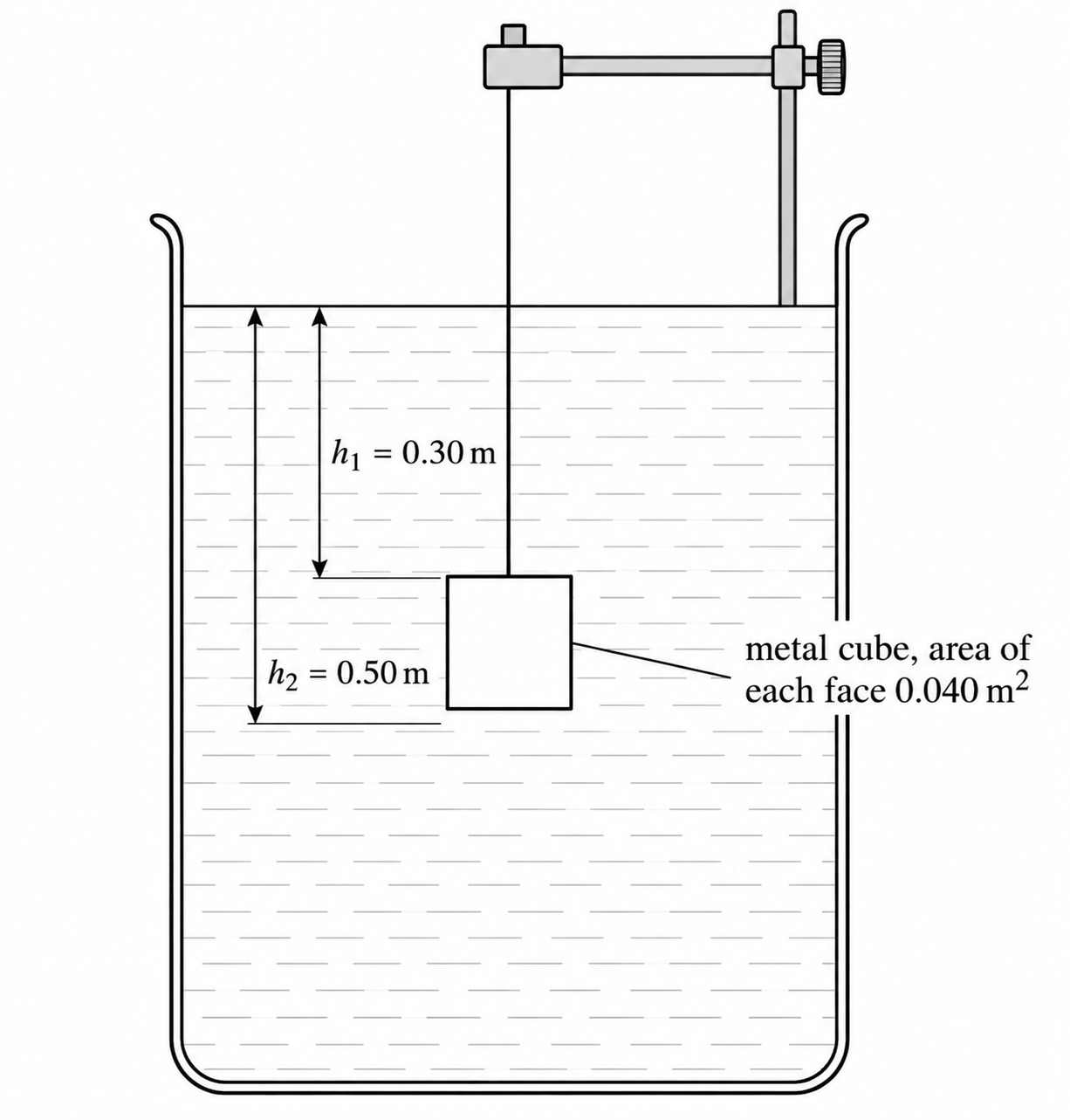

Figure: A metal cube held fully submerged in water by a string


a.

Calculate the pressure due to the water acting on the top face of the cube.

[2]
b.

Calculate the pressure due to the water acting on the bottom face of the cube.

[1]
c.

Use your answers to parts a) and b) to calculate the upthrust on the cube.

[3]
d.

Explain why the resultant force on the cube from the water acts upwards.

[2]
