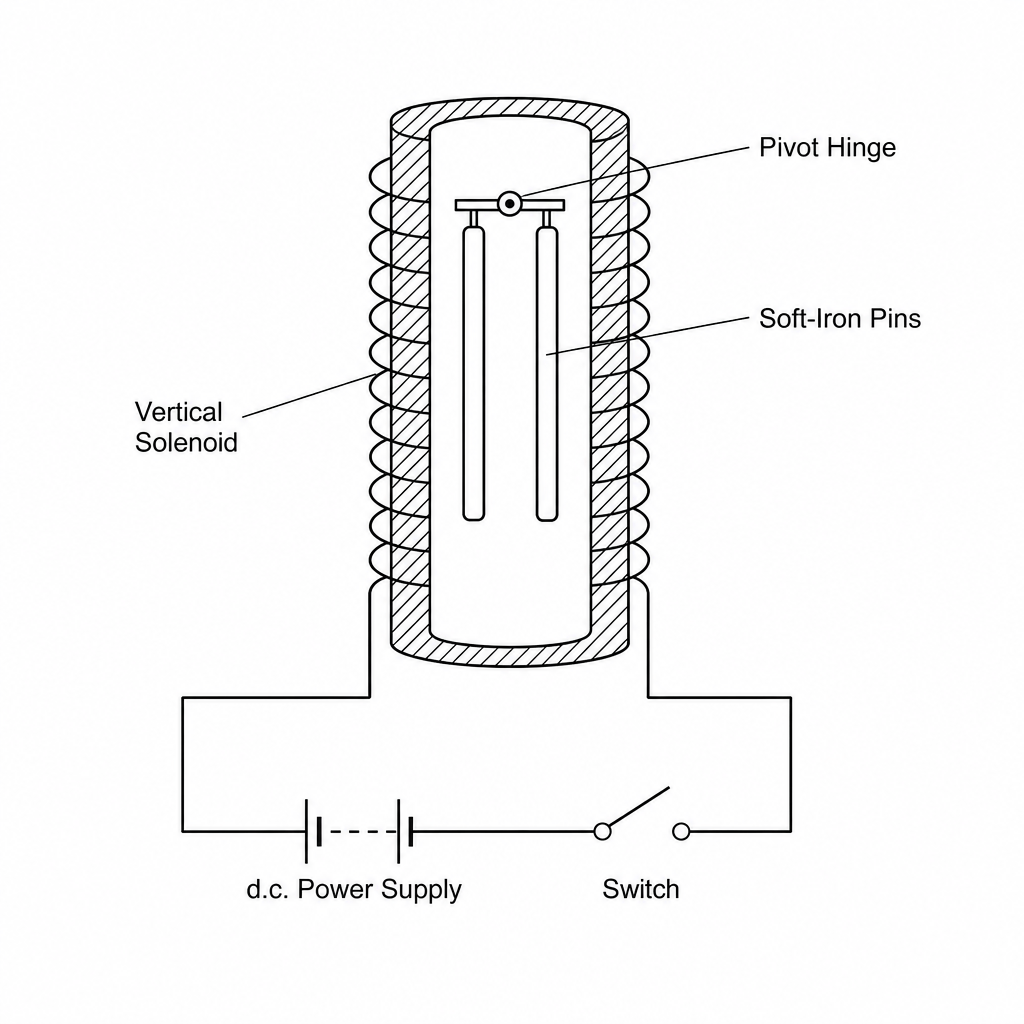

Two identical vertical soft-iron pins are suspended side-by-side from a low-friction pivot hinge at their top ends. They hang inside the core of a vertical solenoid, as shown in the diagram. The solenoid is connected in series with a direct current (d.c.) power supply and a switch.
Explain why the bottom ends of the soft-iron pins swing apart when the switch is closed.
The soft-iron pins are now replaced with geometrically identical steel pins. Describe and explain how the behavior of these steel pins differs from that of the soft-iron pins after the switch is opened again.
