1Medium
0/6

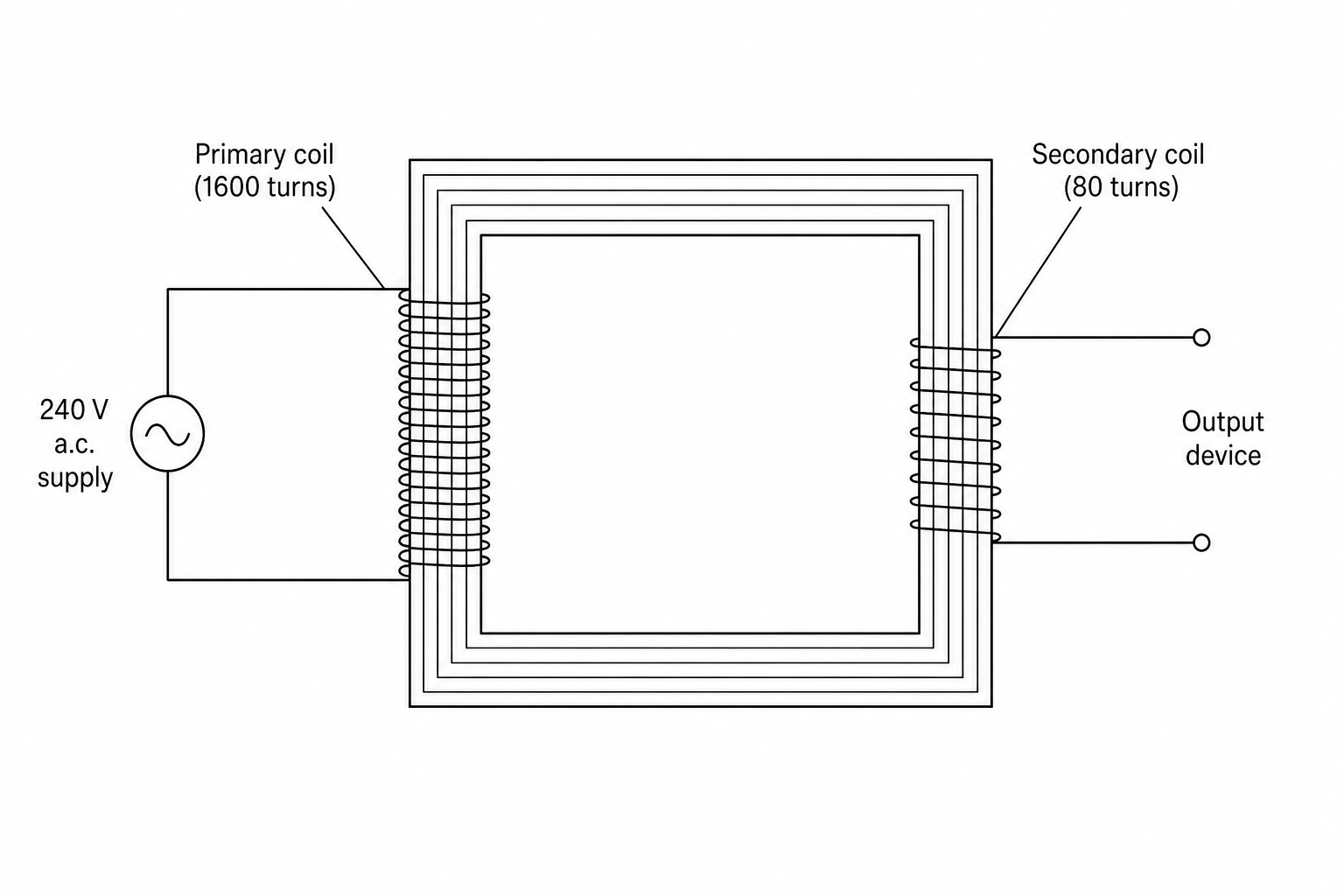

A transformer diagram with a square iron core. The primary coil on the left has 1600 turns and is connected to a 240 V a.c. mains electricity supply. The secondary coil on the right has 80 turns and is connected to an output device.

An alternating current (a.c.) transformer is used to power an electronic device as shown.

a.

What material is used to make the core of the transformer? Give the reason for using this material.

[2]
b.

Determine the current in the secondary coil when the power output of the transformer is 9.0 W9.0\text{ W}9.0 W.

The transformer is 100%100\%100% efficient.

[4]
