Question 6
F

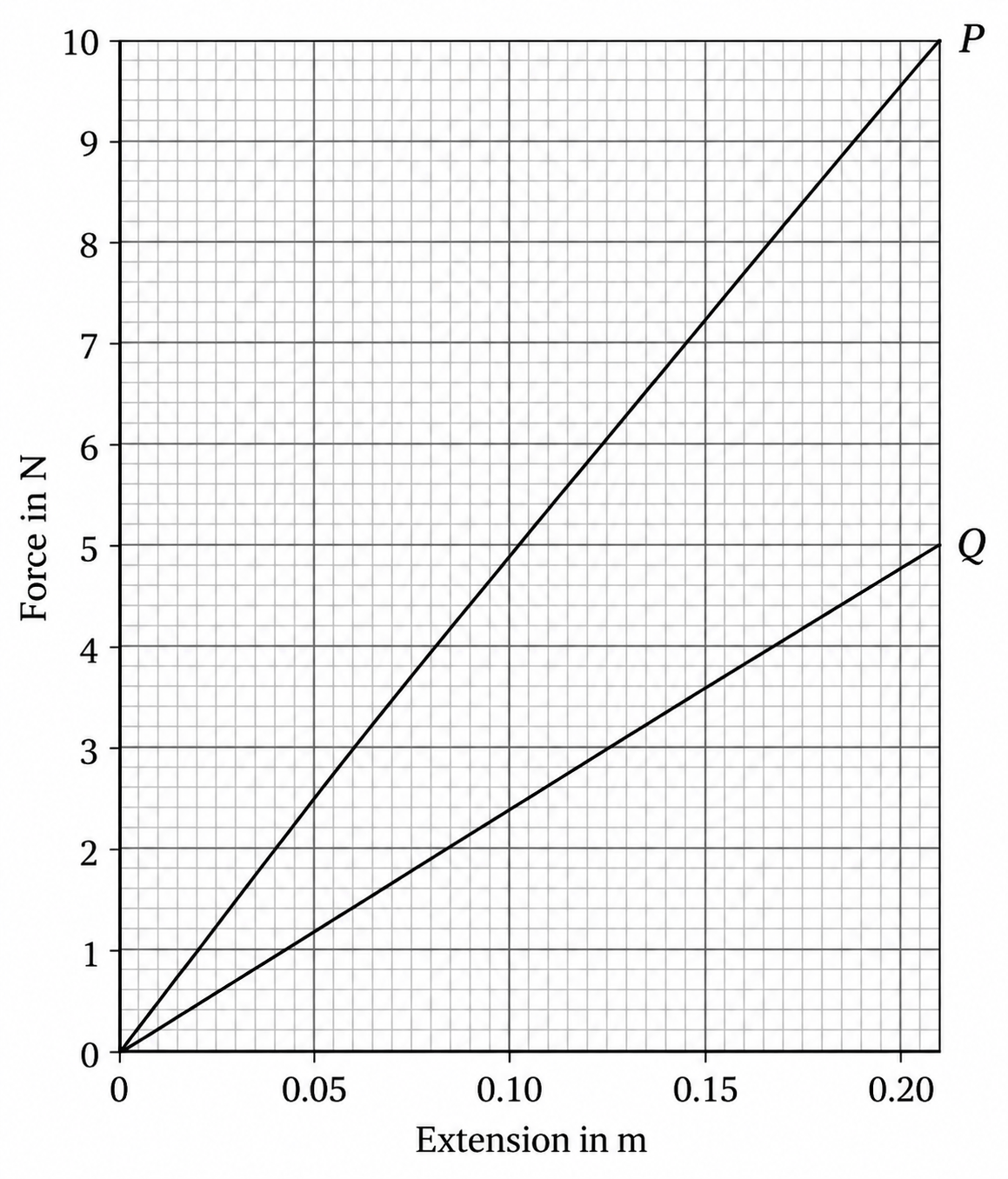

Figure shows how the force applied to two springs, P and Q, varies with the extension of each spring. Neither spring was inelastically deformed.

Figure: The force applied plotted against the extension for two springs, P and Q


a.

Use Figure to determine the spring constant of spring Q.

[3]
b.

Compare spring P with spring Q. In your answer refer to the stiffness of each spring and to the energy stored in each spring at an extension of 0.20 m.

[4]
