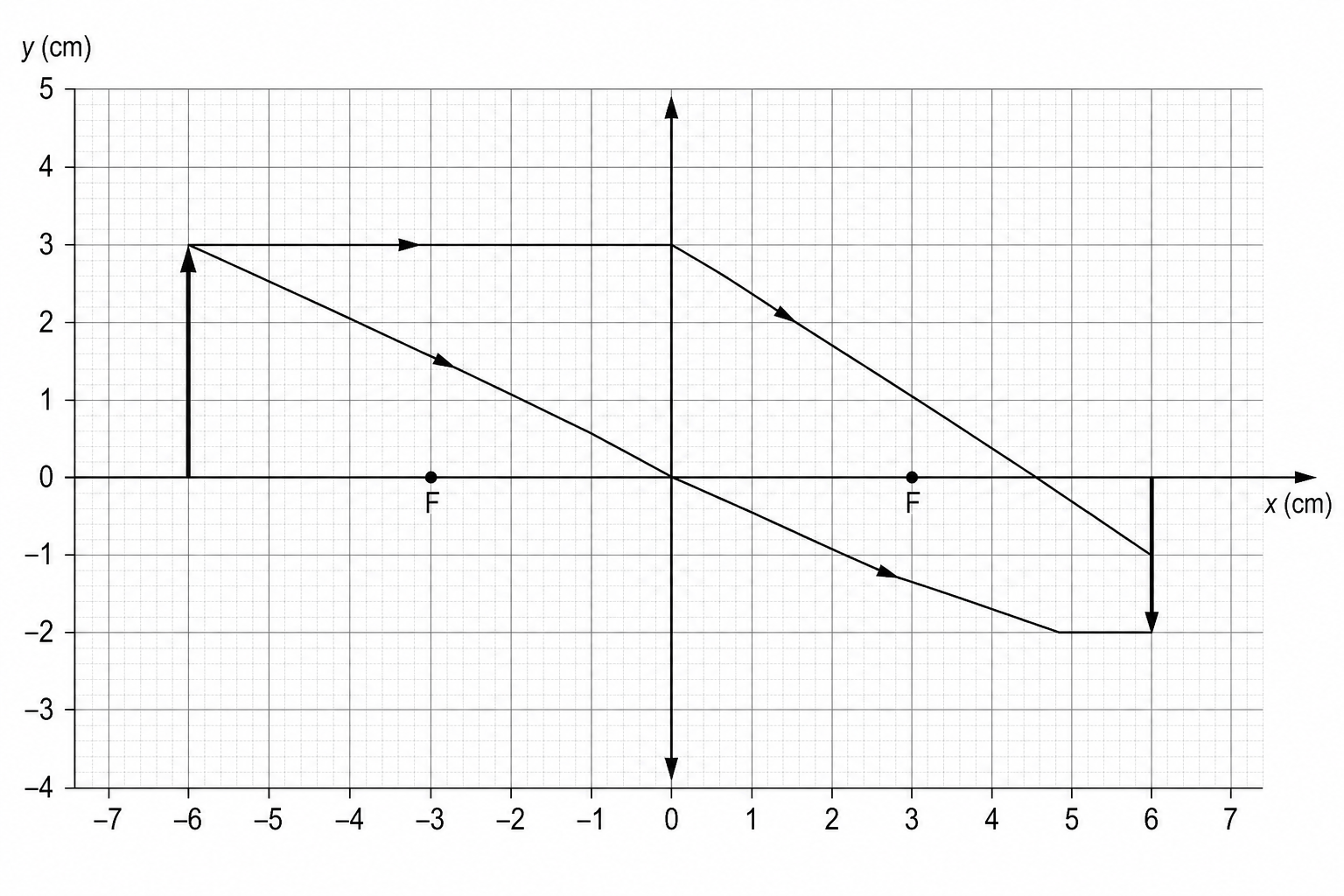

The diagram shows how a lens forms an image of an object. The grid has major grid lines every 1.0 cm and minor grid lines every 0.1 cm.
What type of lens is represented in the diagram?
- Concave
- Convex
- Diverging
Using the grid, find the image height and the object height.
- Image height = _____ cm\text{cm}cm
- Object height = _____ cm\text{cm}cm
Calculate the magnification produced by the lens using the formula: magnification=image heightobject height\text{magnification} = \frac{\text{image height}}{\text{object height}}magnification=object heightimage height
Which two words describe the image?
- Magnified
- Inverted
- Real
- Upright
- Virtual
The object was green. A student looked at the green object through a red filter. Complete the sentences choosing from: black, blue, green, red, white.
- Looking at the green object through a red filter makes the object appear ________.
- This is because the red filter only transmits the light that is ________.
