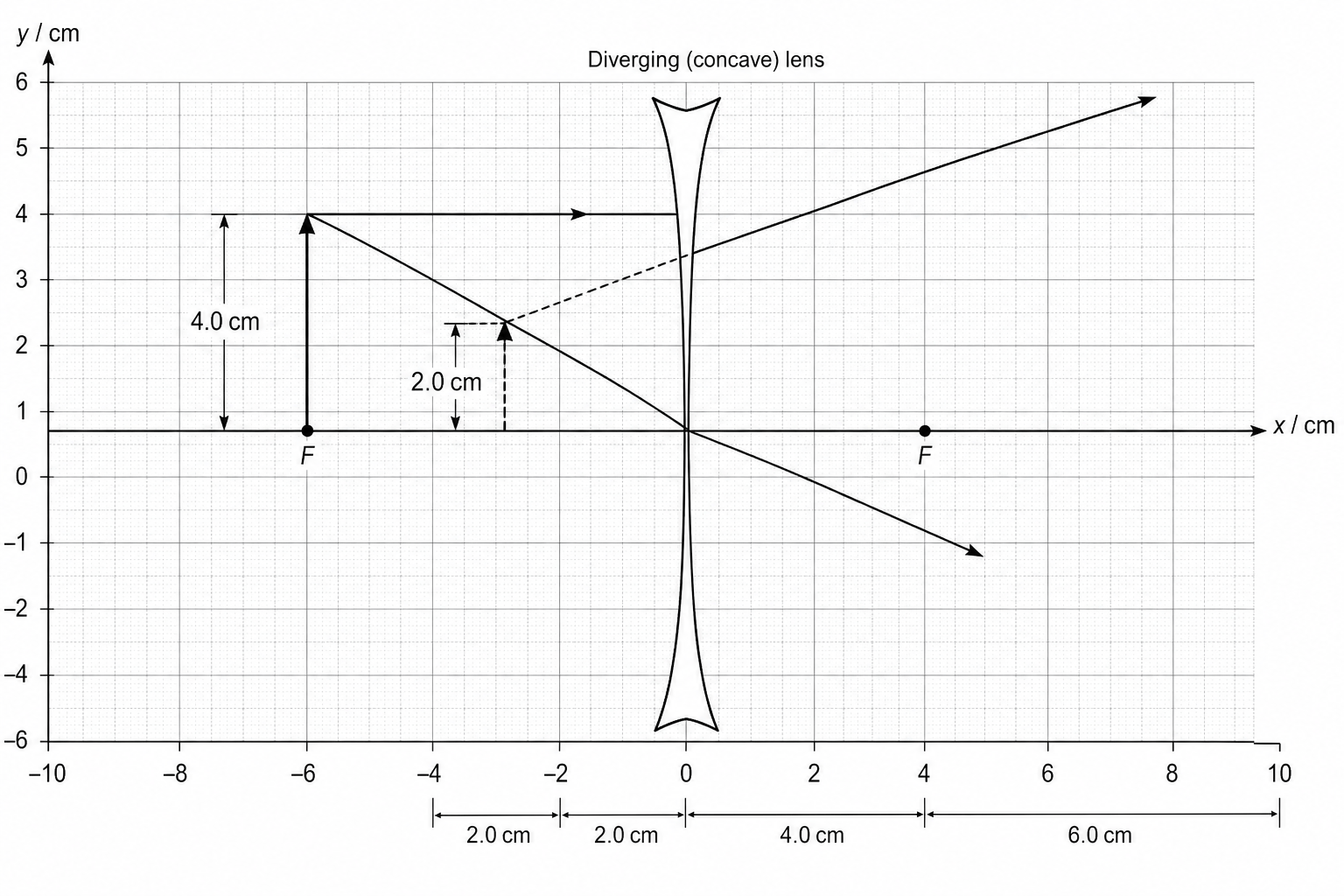

The diagram shows how a lens forms an image of an object. The grid has major grid lines every 1.0 cm and minor grid lines every 0.1 cm.
a.[1]
What type of lens is represented in the diagram?
- Concave
- Convex
- Converging
b.[2]
Using the grid, find the image height and the object height.
- Image height = _____ cm\text{cm}cm
- Object height = _____ cm\text{cm}cm
c.[2]
Calculate the magnification produced by the lens using the formula: magnification=image heightobject height\text{magnification} = \frac{\text{image height}}{\text{object height}}magnification=object heightimage height
d.[2]
Which two words describe the image?
- Diminished
- Inverted
- Real
- Upright
- Virtual
e.[2]
The object was blue. A student looked at the blue object through a red filter. Complete the sentences choosing from: black, blue, green, red, white.
- Looking at the blue object through a red filter makes the object appear ________.
- This is because the red filter only transmits the light that is ________.
