Question 7
F

A student measures how the temperature of hot water in a beaker changes with time. The student then repeats the measurements using an identical beaker wrapped in insulating material. Figure shows the results.

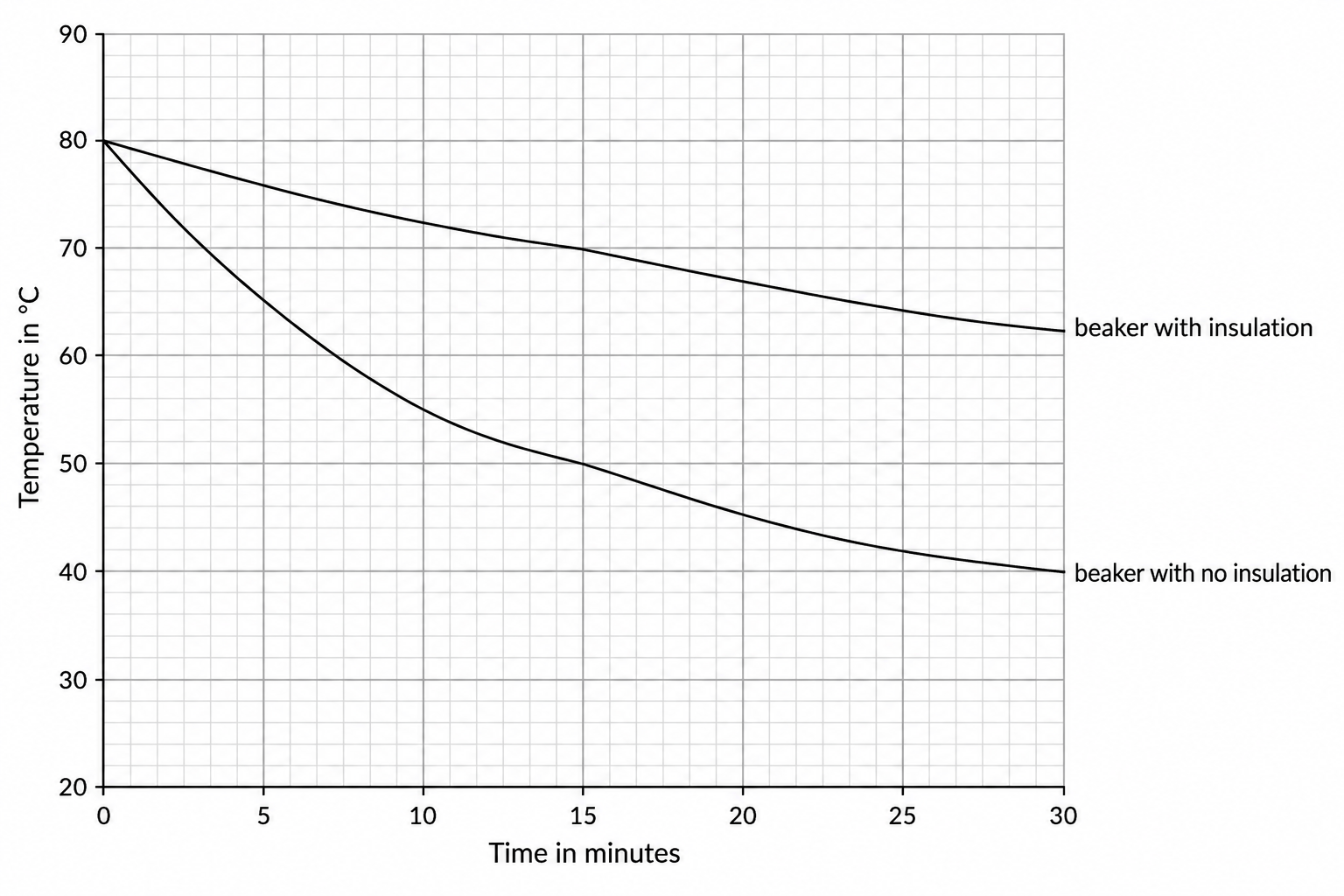

Figure: How the temperature of the water in each beaker changed with time


a.

Determine the temperature of the water in the beaker with no insulation after 15 minutes. Use Figure.

[1]
b.

Determine the difference between the temperatures of the water in the two beakers after 30 minutes. Use Figure.

[2]
c.

Explain why the water in the insulated beaker cools more slowly.

[2]
