Question 1

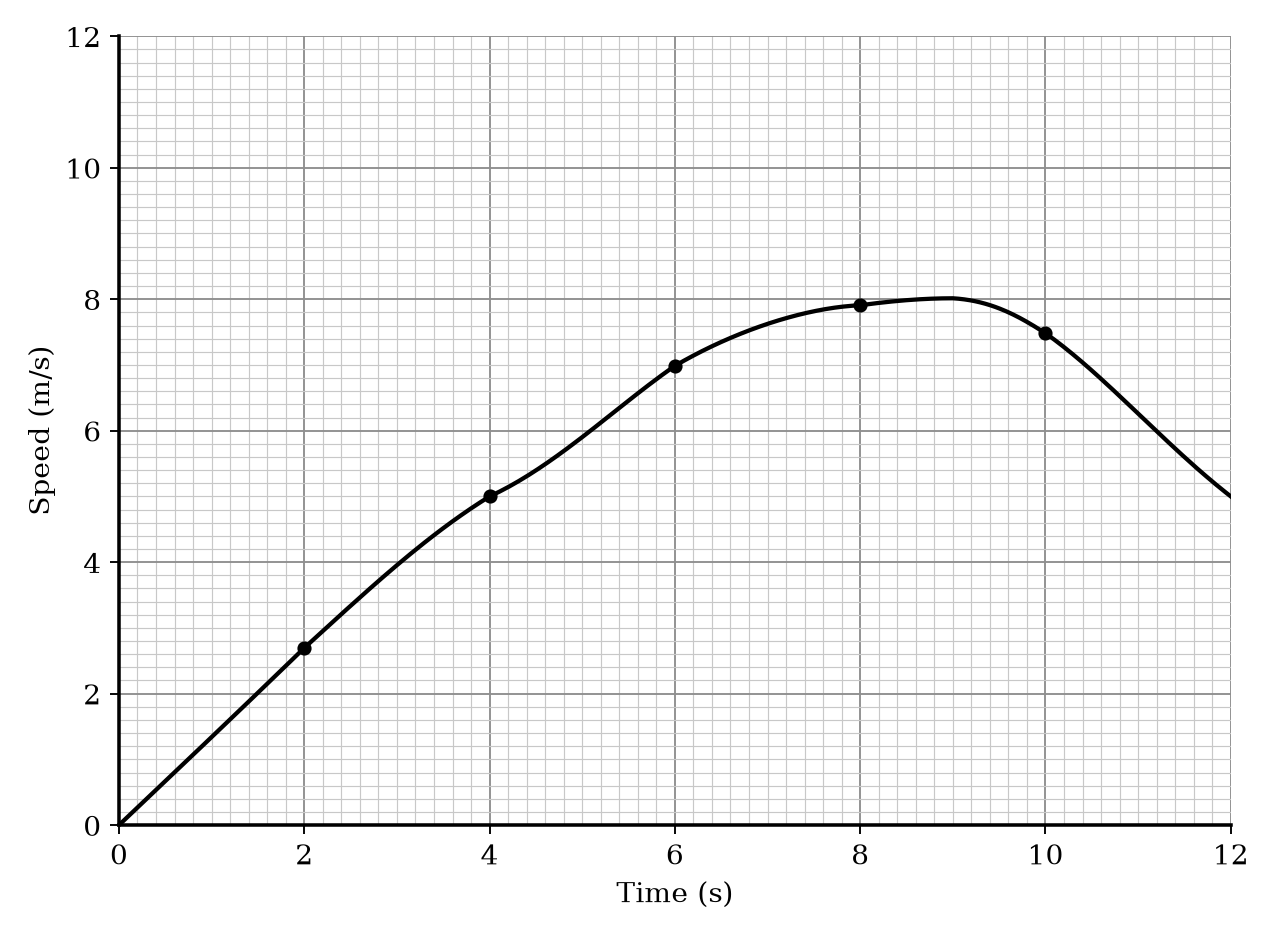

The speed-time graph below represents the motion of a cyclist during a 12-second sprint.

A speed–time graph for a cyclist over 12 seconds, with time in seconds on the horizontal axis and speed in metres per second on the vertical axis.

a.

Work out an estimate for the acceleration of the cyclist when t=6t = 6t=6.

[2]
b.

Use 4 strips of equal width to find an estimate for the distance travelled by the cyclist in 12 seconds.

[3]
Markscheme

Velocity Time Graphs Questions

  1. GCSE
  2. /Maths
  3. /Velocity Time Graphs

23 exam-style questions on OCR GCSE Maths Velocity Time Graphs. Each one has a worked solution and a mark scheme showing where the marks go.
