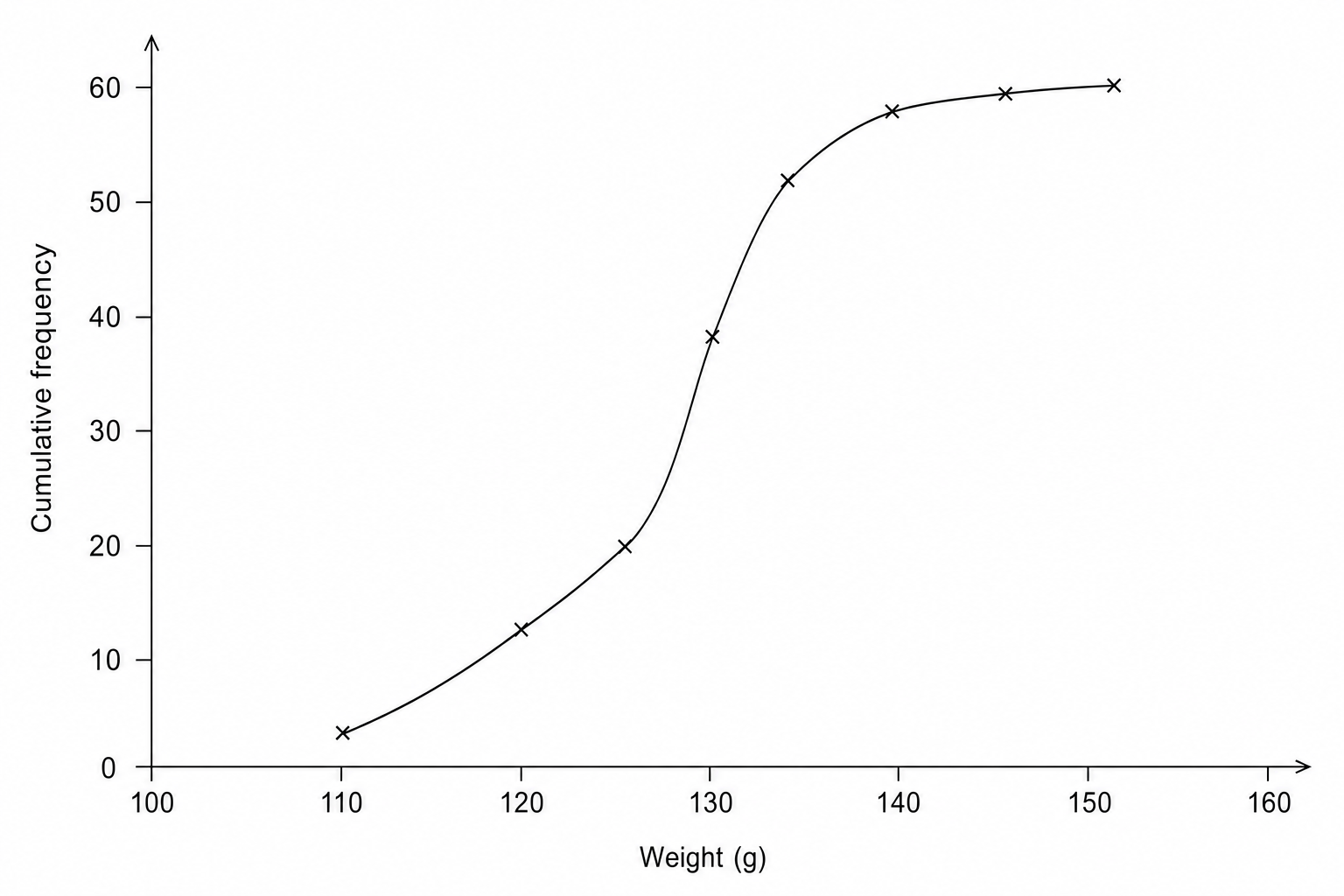

The cumulative frequency graph shows the weight, in grams, of 60 pears.
| Weight (g) | Cumulative frequency |
|---|---|
| 110 | 3 |
| 120 | 12 |
| 125 | 20 |
| 130 | 38 |
| 135 | 52 |
| 140 | 58 |
| 145 | 59 |
| 150 | 60 |
The 60 pears had a minimum weight of 112 grams and a maximum weight of 149 grams.

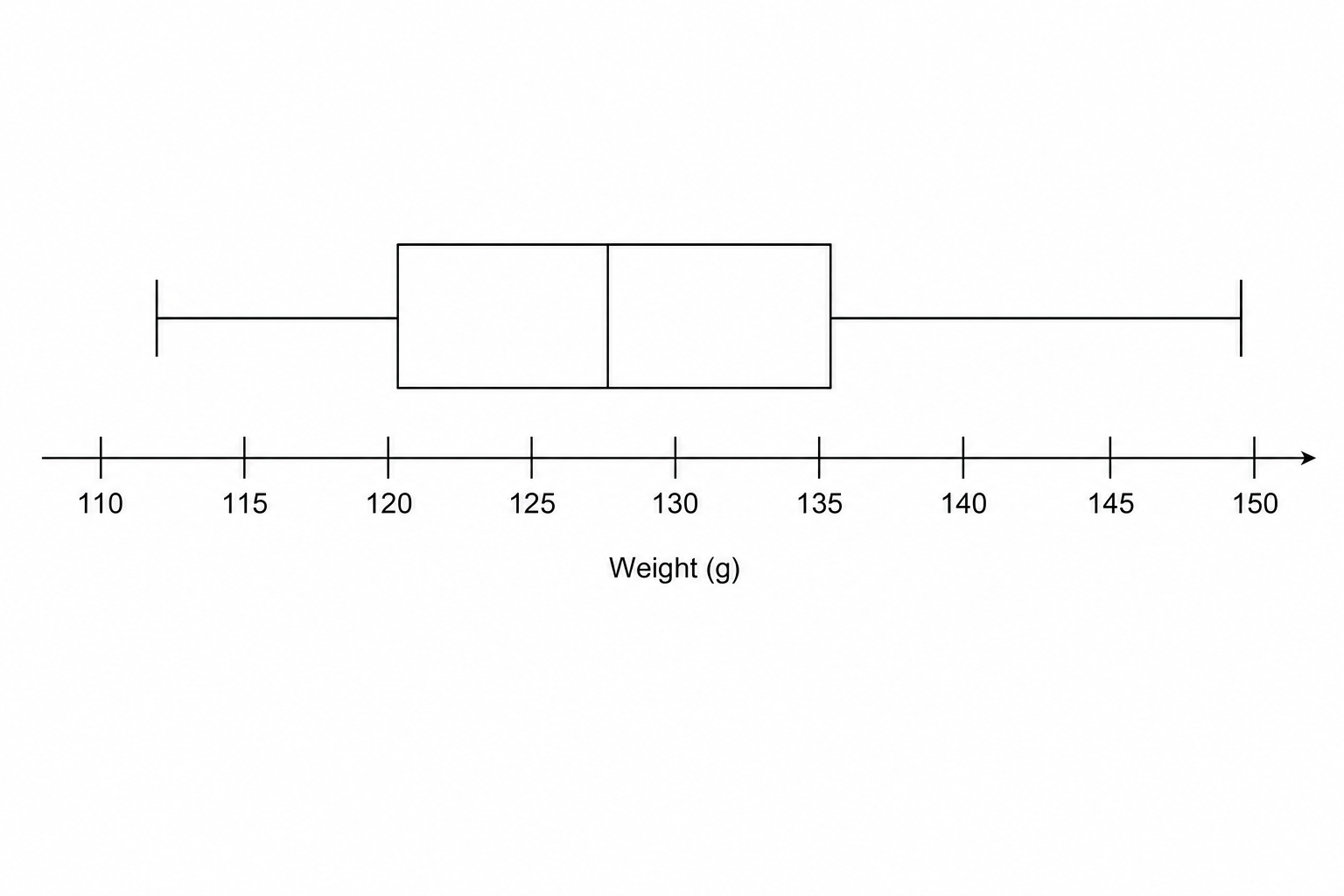

Draw a box plot to show the distribution of the weights of the pears.
Box Plots Questions
Practise OCR GCSE Maths Box Plots with exam-style questions for Foundation and Higher tier. 36 questions, matched to the OCR GCSE Maths (J560) specification and written in the written papers style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
