Direct and Inverse Proportion

List view

Medium

Four graphs are shown below representing the proportionality between $y\,$ and $x$ .

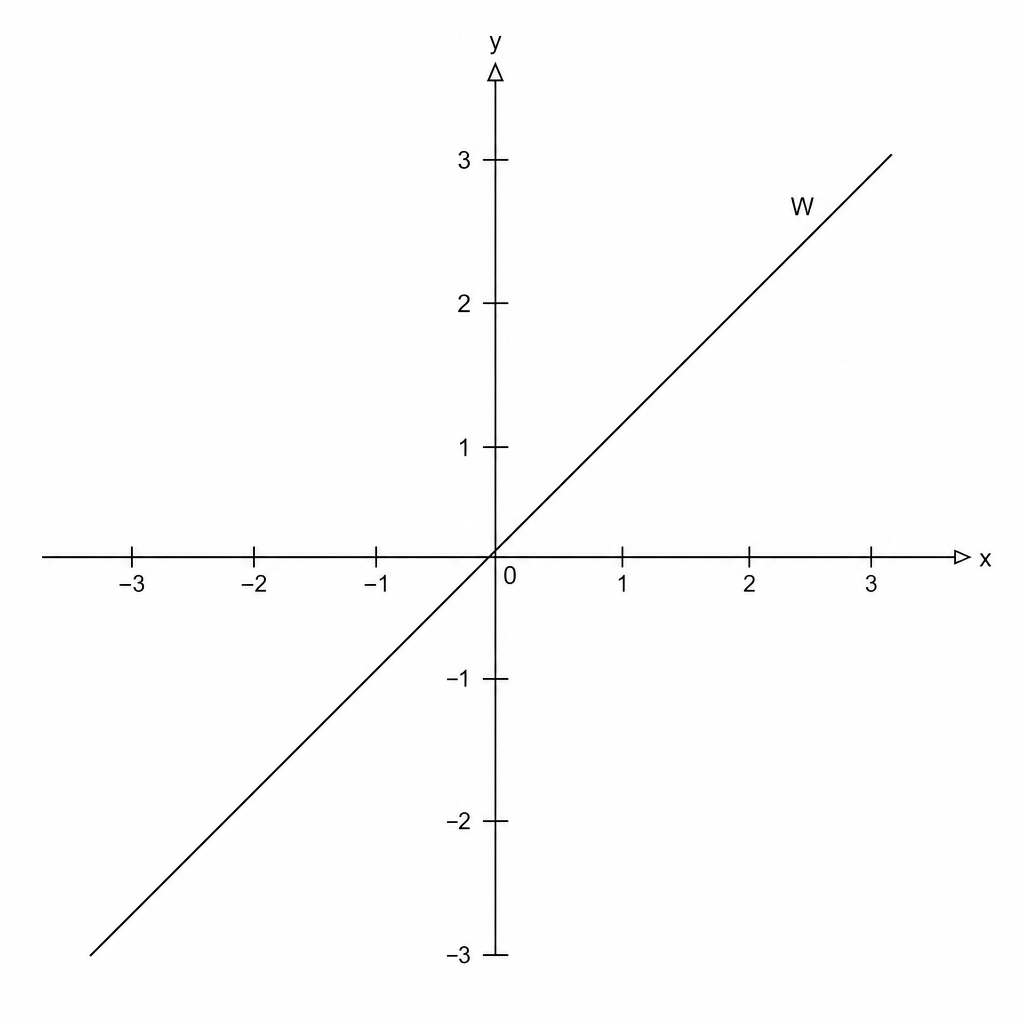

Graph W W

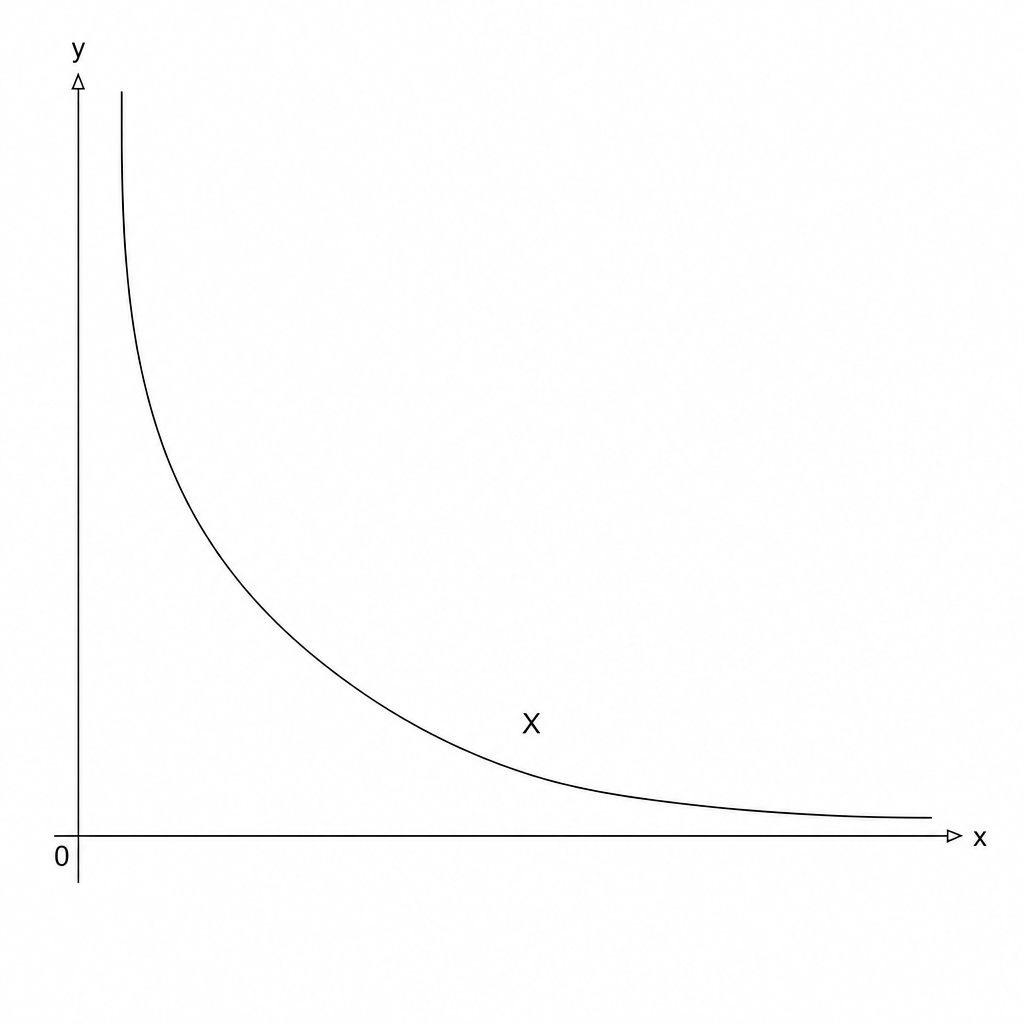

Graph X X

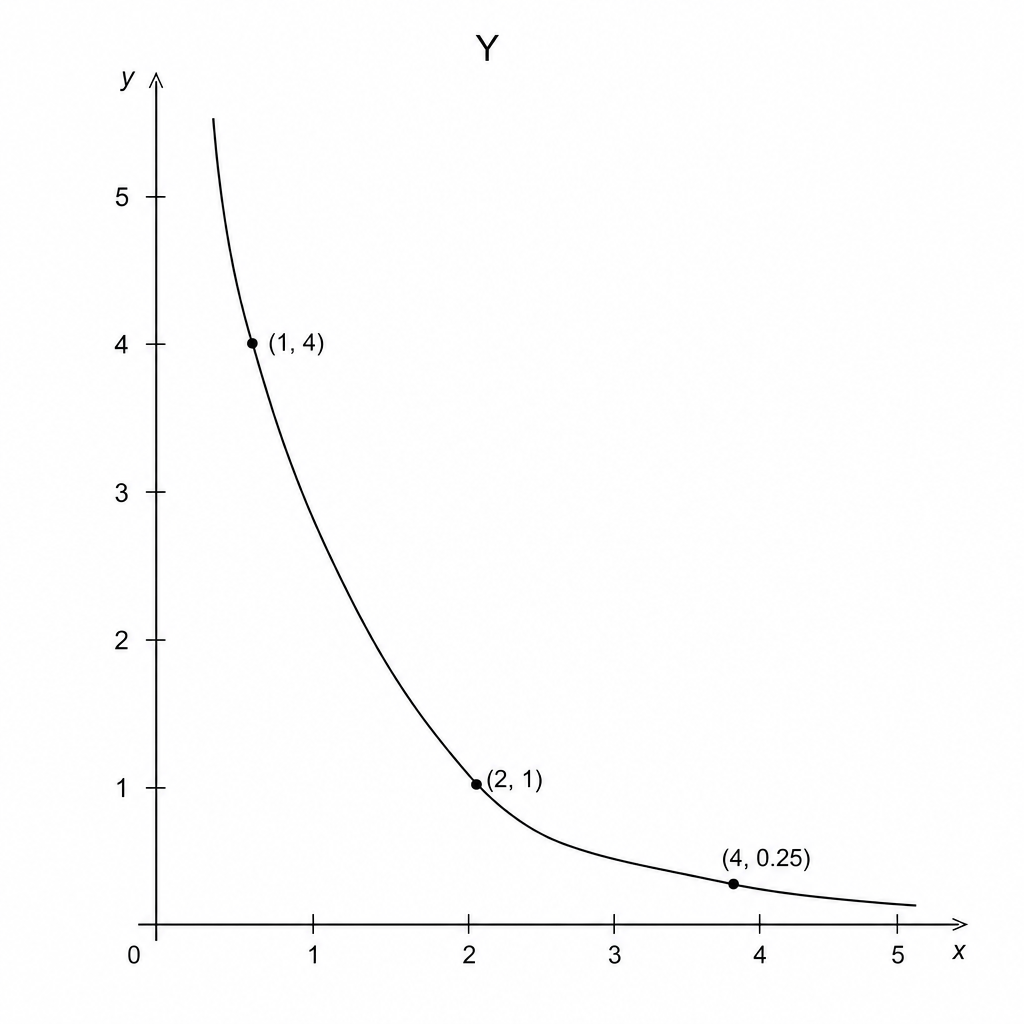

Graph Y Y

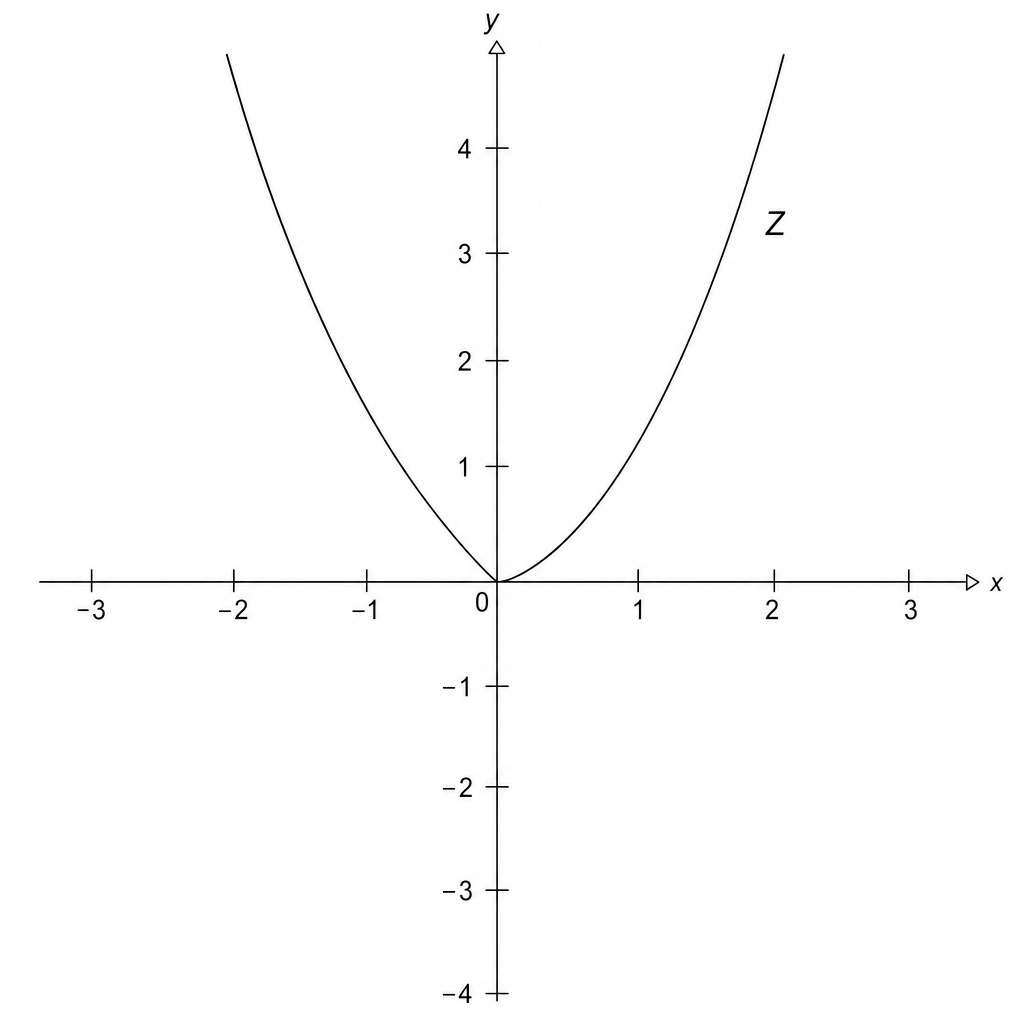

Graph Z Z

Note: Graph W is a straight line through the origin, Graph X is a curve that is asymptotic to the axes, Graph Y is a curve asymptotic to the axes that decreases faster than X, and Graph Z is a parabolic curve.

Match each graph with a statement in the table below.

Proportionality relationship	Graph letter
$y\,$ is directly proportional to $x$
$y\,$ is inversely proportional to $x$
$y\,$ is directly proportional to $x^2$
$y\,$ is inversely proportional to $x^2$

[2]
