Box Plots

EasyMediumHard
1234567891011121314151617181920
Question 3
56%

The table shows some information about the weights, in kg, of some pumpkins grown by Sarah.

MinimumLower QuartileMedianUpper QuartileMaximum
1.53.24.86.58.2
a.

Draw a box plot for this information.

A blank grid for drawing a box plot of pumpkin weights.

[2]
b.

There are also pumpkins grown by Tom. The box plot below shows the distribution of the weights of Tom's pumpkins.

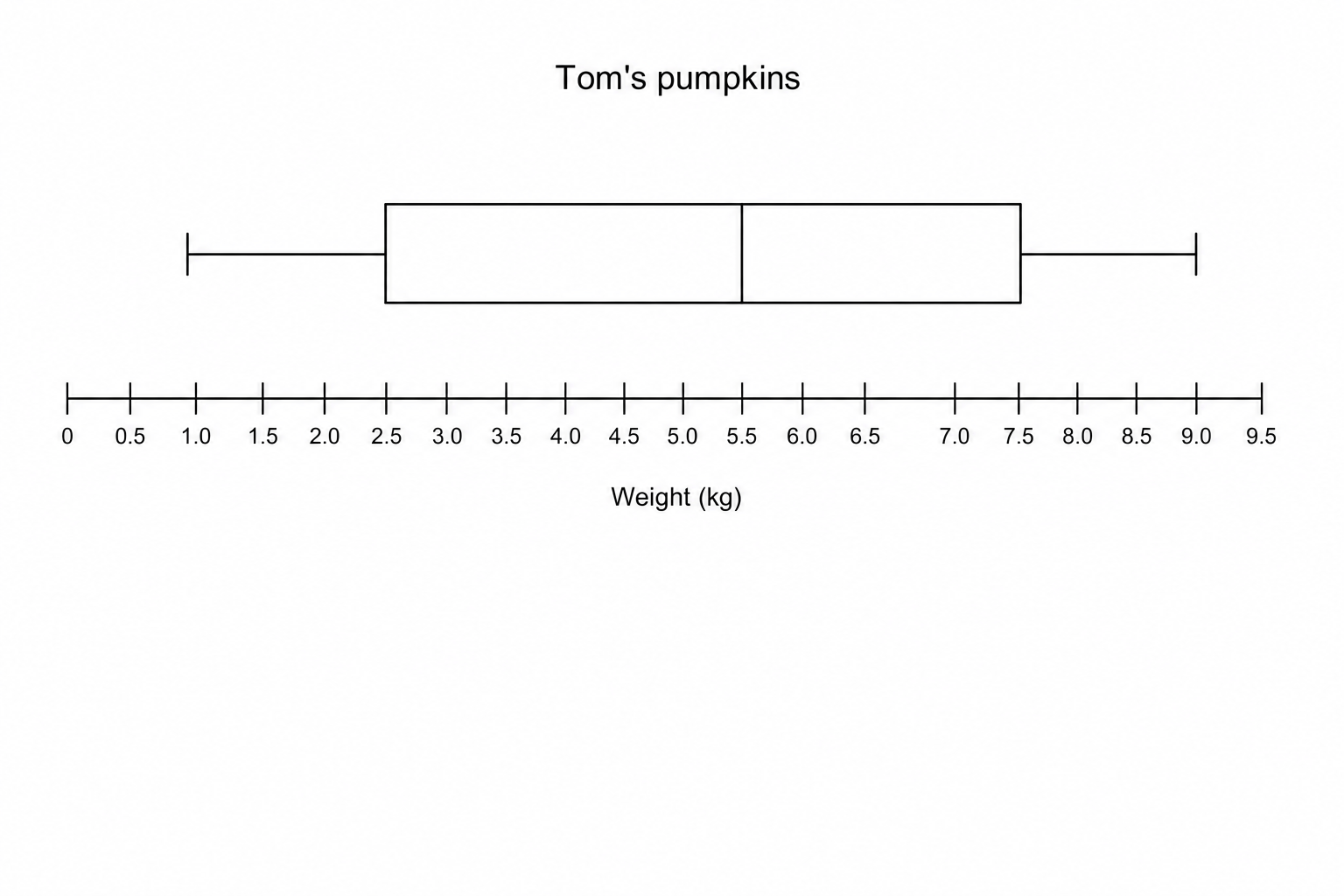

A box plot for Tom's pumpkins showing min 1.0, LQ 2.5, Median 5.5, UQ 7.5, Max 9.0.

Compare the distribution of the weights of Sarah's pumpkins with the distribution of the weights of Tom's pumpkins.

[2]
Video walkthrough
  1. GCSE
  2. /Maths
  3. /Box Plots

27 exam-style questions on Edexcel GCSE Maths Box Plots. Each one has a worked solution and a mark scheme showing where the marks go.
