Circle Theorems

List view

Medium

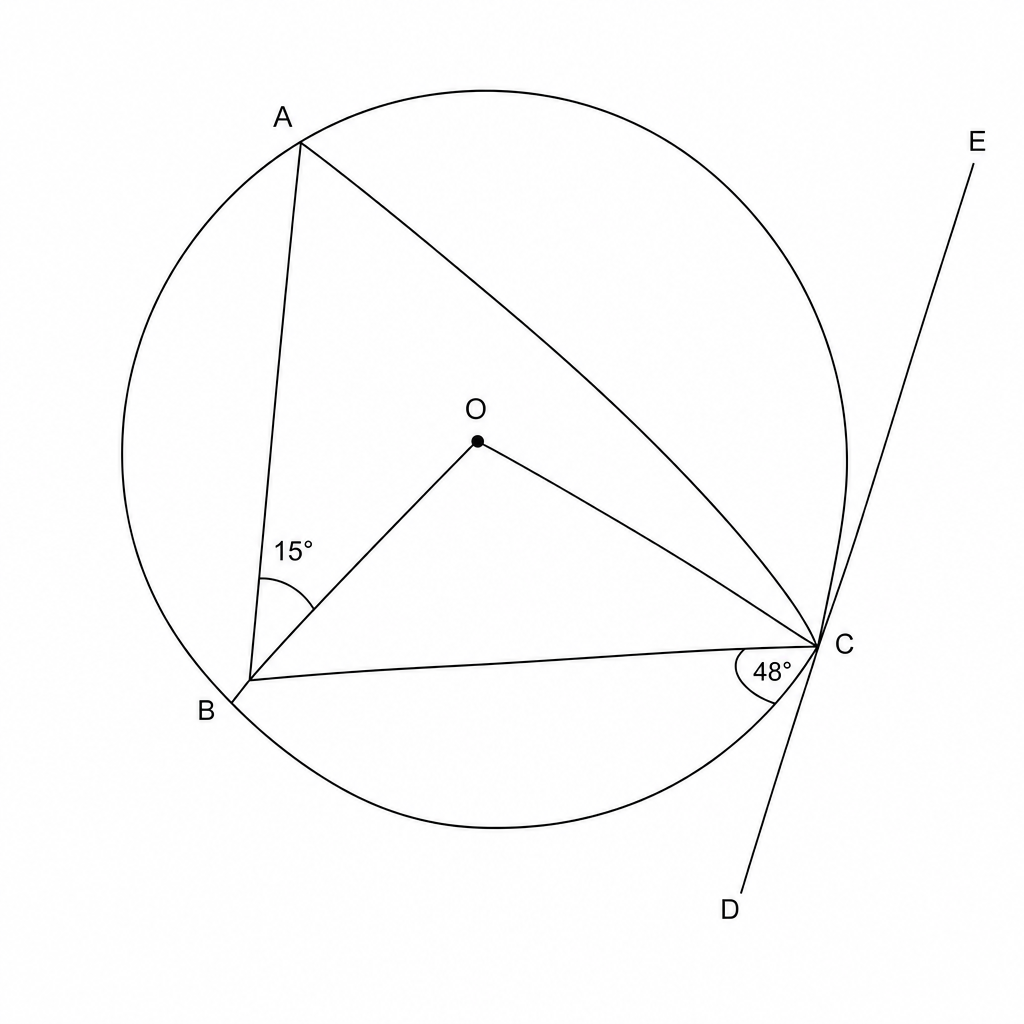

A geometric diagram of a circle with center O. Points A, B, and C are on the circumference. A tangent line DCE touches the circle at point C. Chords AB, BC, AC, OB, and OC are drawn. Angle ABO is labeled as 15 degrees and angle BCE is labeled as 48 degrees.

$A$ , $B\,$ and $C\,$ are points on the circumference of a circle, centre $O$ . $DCE\,$ is a tangent to the circle.

Angle $15^\circ$ Angle $48^\circ$

Find the size of angle $A C O$ .

Give reasons for each stage of your working.

[4]
