Solving Simultaneous Equations Graphically

List view

Hard

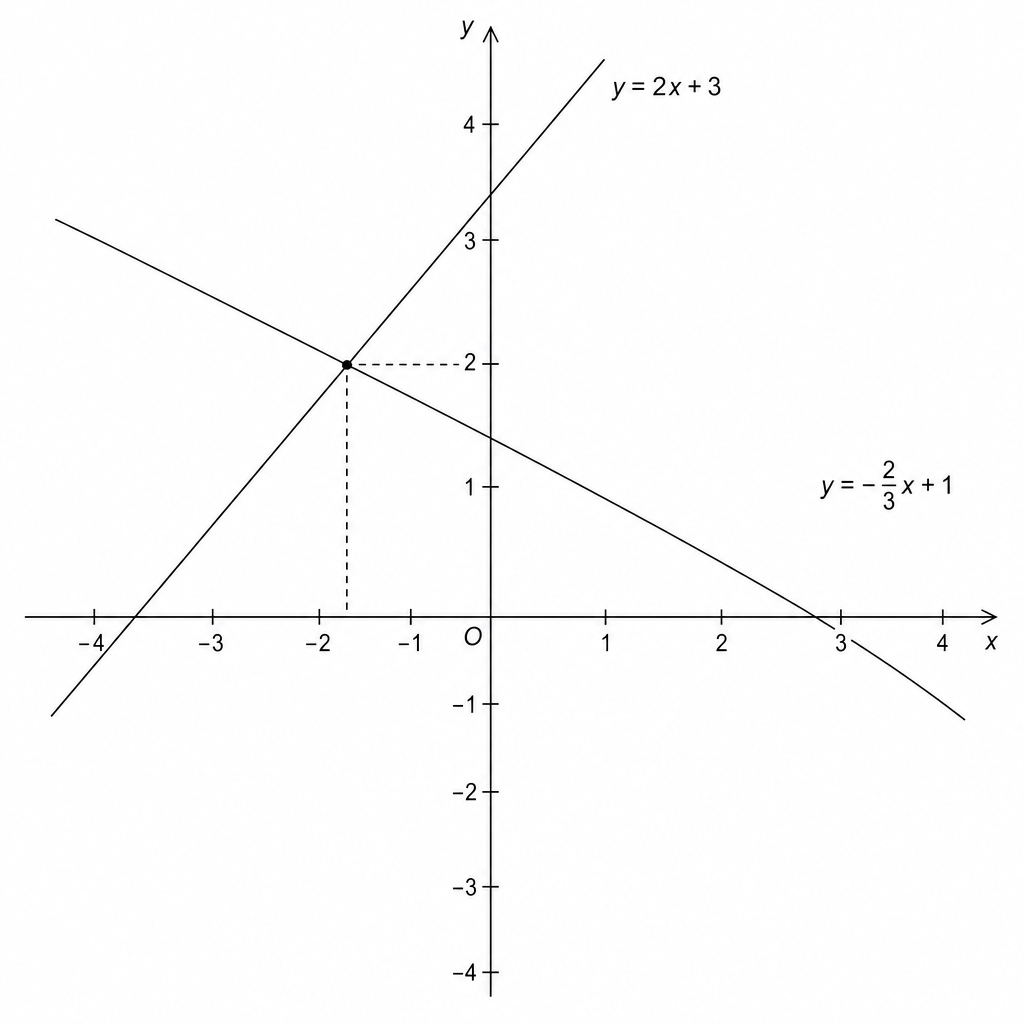

The diagram shows two straight lines. The equation of the lines are $y = 2 x + 3$ and $y=−23x+1\displaystyle y = -\frac{2}{3}x + 1$ .

A Cartesian coordinate system showing two intersecting straight lines. The x-axis and y-axis are labeled, with the origin marked as O. One line has a positive slope and the other has a negative slope. They intersect in the second quadrant, which corresponds to the equations y = 2x + 3 and y = -2/3x + 1.

Work out the coordinates of the point where the line intersect.

[3]

Solving Simultaneous Equations Graphically Questions

Practise Edexcel GCSE Maths Solving Simultaneous Equations Graphically with exam-style questions for Foundation and Higher tier. 20 questions, matched to the Edexcel GCSE Maths (1MA1) specification and written in Paper 1, Paper 2 and Paper 3 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
