Question 7

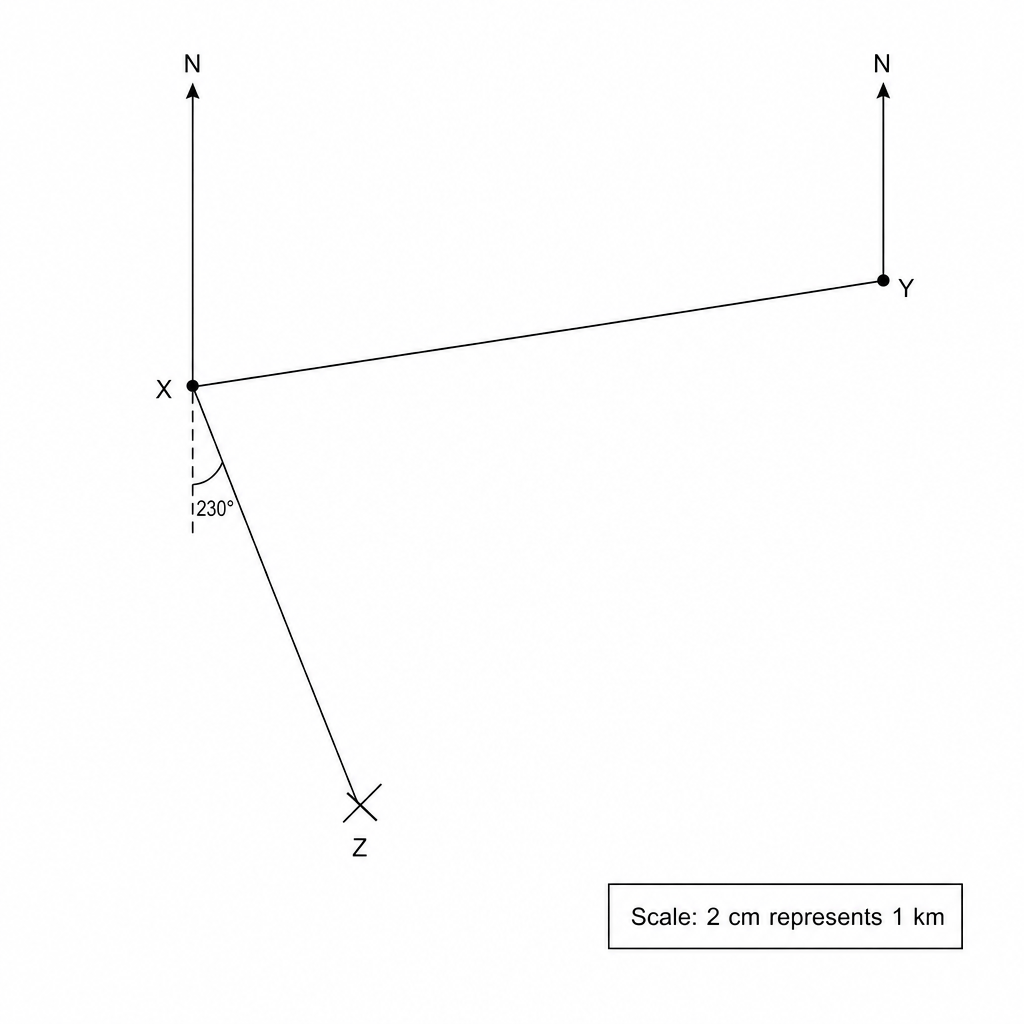

The accurate scale drawing shows the positions of aircraft X X\,X and aircraft YYY.

A scale drawing showing aircraft X and Y joined by a shorter diagonal line, with north arrows and the scale 2 cm represents 1 km.

Scale 2 cm represents 1 km

a.

Find the distance from X X\,X to YYY.

[1]
b.

Measure the bearing of Y Y\,Y from XXX.

[1]
c.

A third aircraft Z Z\,Z is 3 km from X X\,X on a bearing of 230∘ 230^\circ\,230∘

On the diagram, mark the position of aircraft Z Z\,Z with a cross (×\times×).

[2]
