An automated sorting system on a chocolate production line is designed to check the quality of manufactured chocolate bars. Every 8th bar is selected for detailed inspection (e.g., bar numbers 8, 16, 24, and so on). If the bar ID divided by 8 has a remainder of 0, it is routed to the inspection lab. Otherwise, it is sent to the packaging line.

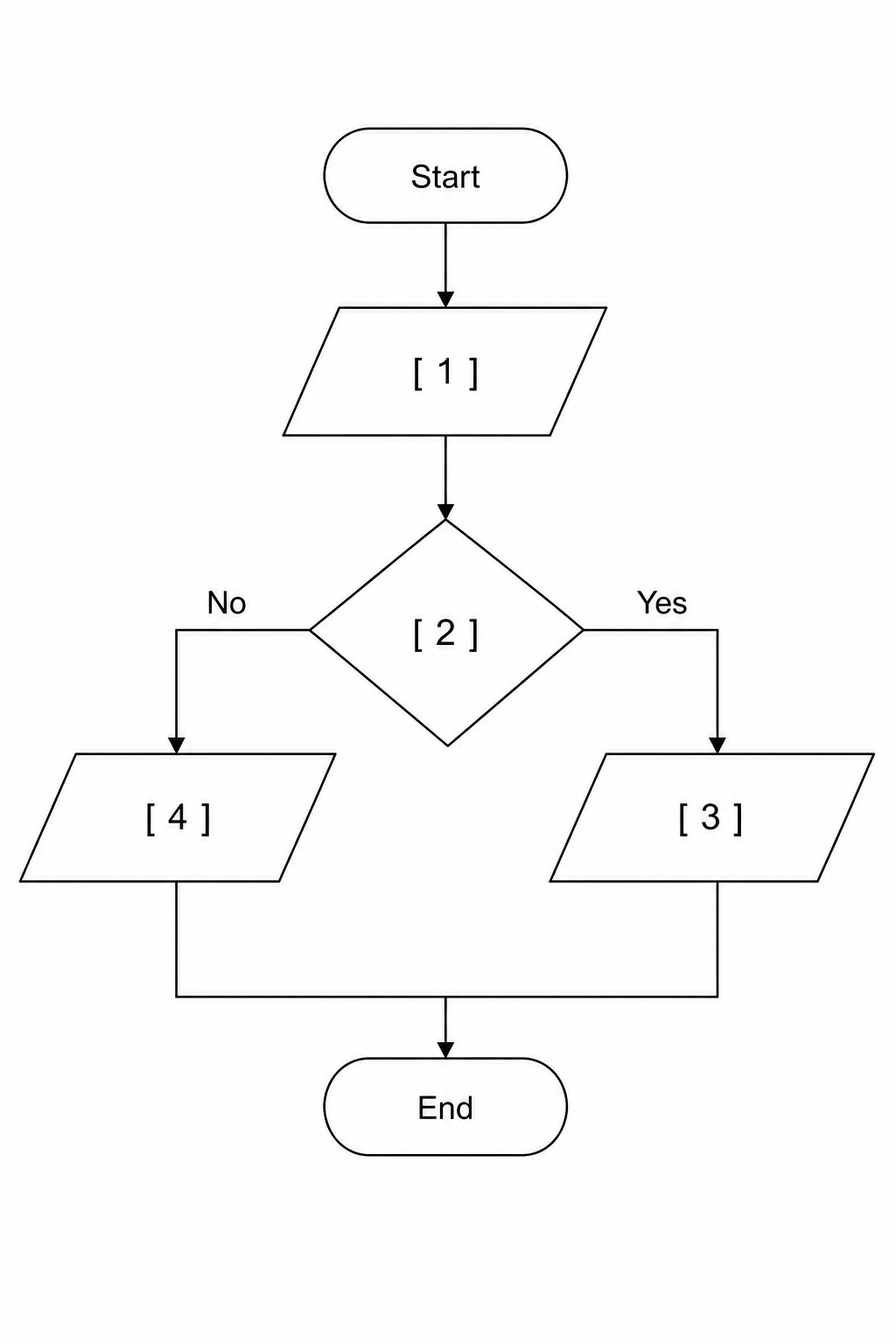

The flowchart for this algorithm is incomplete.
Complete the flowchart by matching the correct statements to the placeholders [ 1 ], [ 2 ], [ 3 ], and [ 4 ].
Choose from the following statements:
OUTPUT "Send to Packaging Line"bar_id MOD 8 == 0?OUTPUT "Send to Inspection Lab"INPUT bar_id
