Designing, creating and refining algorithms
20
0/4

An automated system at airport check-in desks is used to determine if a piece of checked luggage exceeds the standard allowance of 23 kg.

The process is represented by the following flowchart:

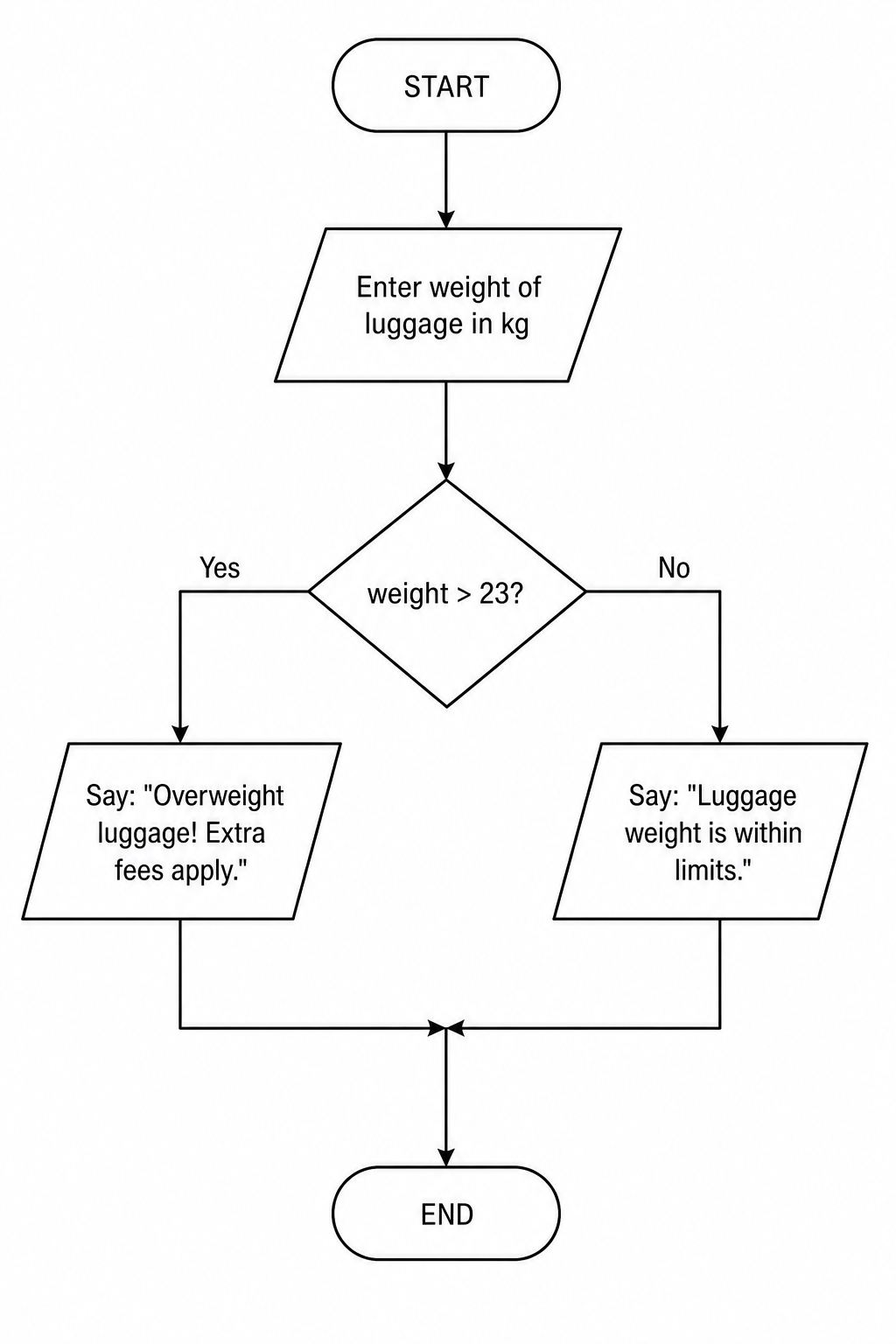

A flowchart starting at an oval START terminal node, proceeding to a parallelogram input box containing "Enter weight of luggage in kg". This connects to a diamond decision node "weight > 23?". The "Yes" arrow leads to a parallelogram output block "Say: 'Overweight luggage! Extra fees apply.'". The "No" arrow leads to a parallelogram output block "Say: 'Luggage weight is within limits.'". Both output blocks then lead to an oval END terminal node.

Rewrite the flowchart as a program.

You must use either:

  • OCR Exam Reference Language, or
  • a high-level programming language that you have studied (e.g. Python, C#, Java).
[4]

Designing, creating and refining algorithms Questions

Practise OCR GCSE Computer Science Designing, creating and refining algorithms with exam-style questions for GCSE Computer Science. 50 questions, matched to the OCR GCSE Computer Science (J277) specification and written in Component 01 and Component 02 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
