An automated bank vault security system uses inputs from a keypad, a biometric scanner, and an emergency lockdown switch to determine whether the vault door lock should release.
The table shows the inputs into the system and the meaning of each input value:
| Letter | Input device | Input of 1 | Input of 0 |
|---|---|---|---|
| E | Emergency lockdown switch | Lockdown is ACTIVE | Lockdown is INACTIVE |
| K | Keypad PIN entry | Code is correct | Code is incorrect |
| F | Fingerprint biometric scanner | Biometric match found | Biometric mismatch |
The lock release mechanism (UUU) is designed to unlock (U=1U = 1U=1) only when the emergency lockdown is INACTIVE, and either the keypad code is correct OR a fingerprint biometric match is found.

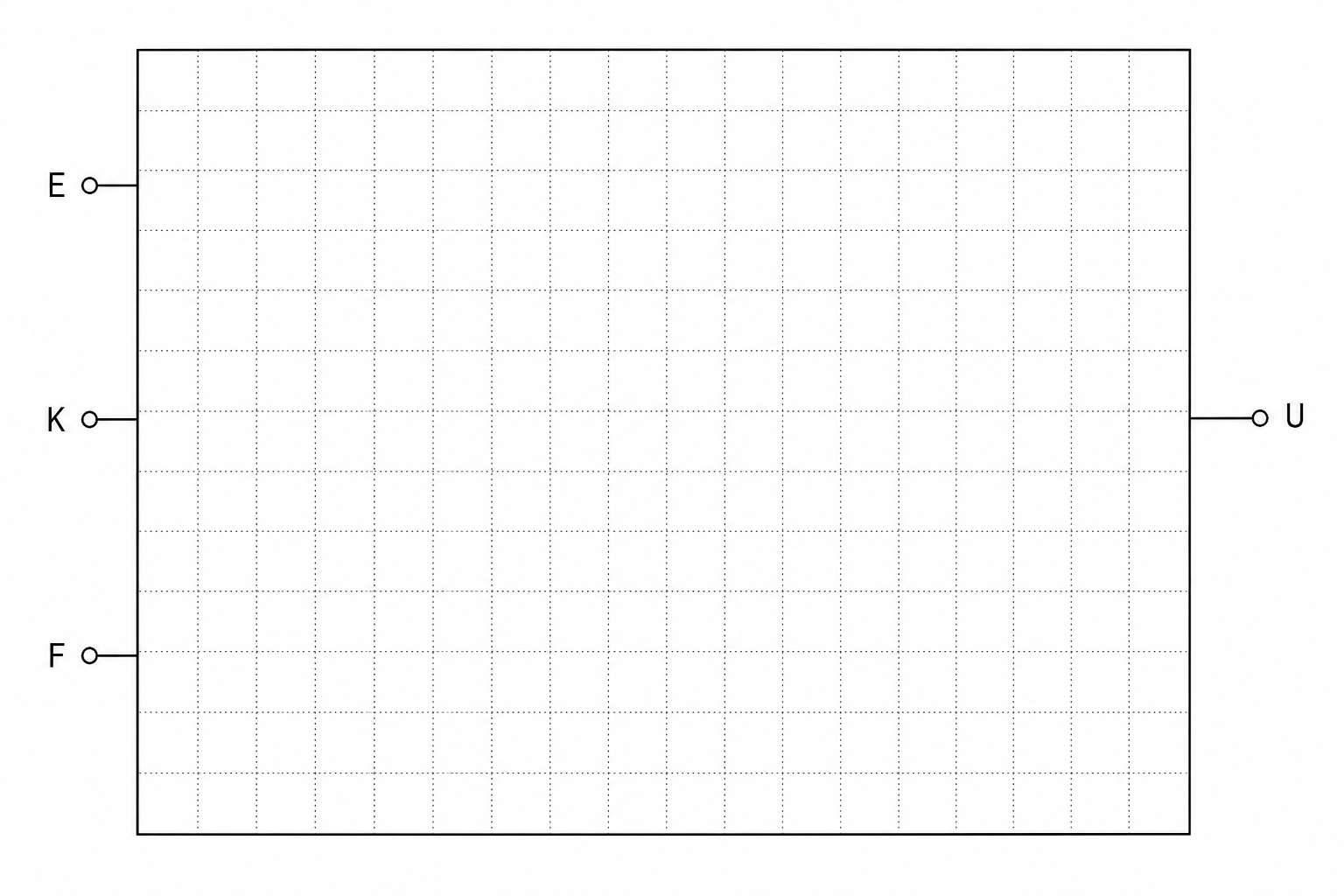

Draw a logic diagram for the vault security system using standard 2-input logic gates (AND, OR, NOT).
