Draw a logic circuit for the following Boolean expression:

Q=(A AND B) OR NOT C Q = (A \text{ AND } B) \text{ OR } \text{NOT } C Q=(A AND B) OR NOT C

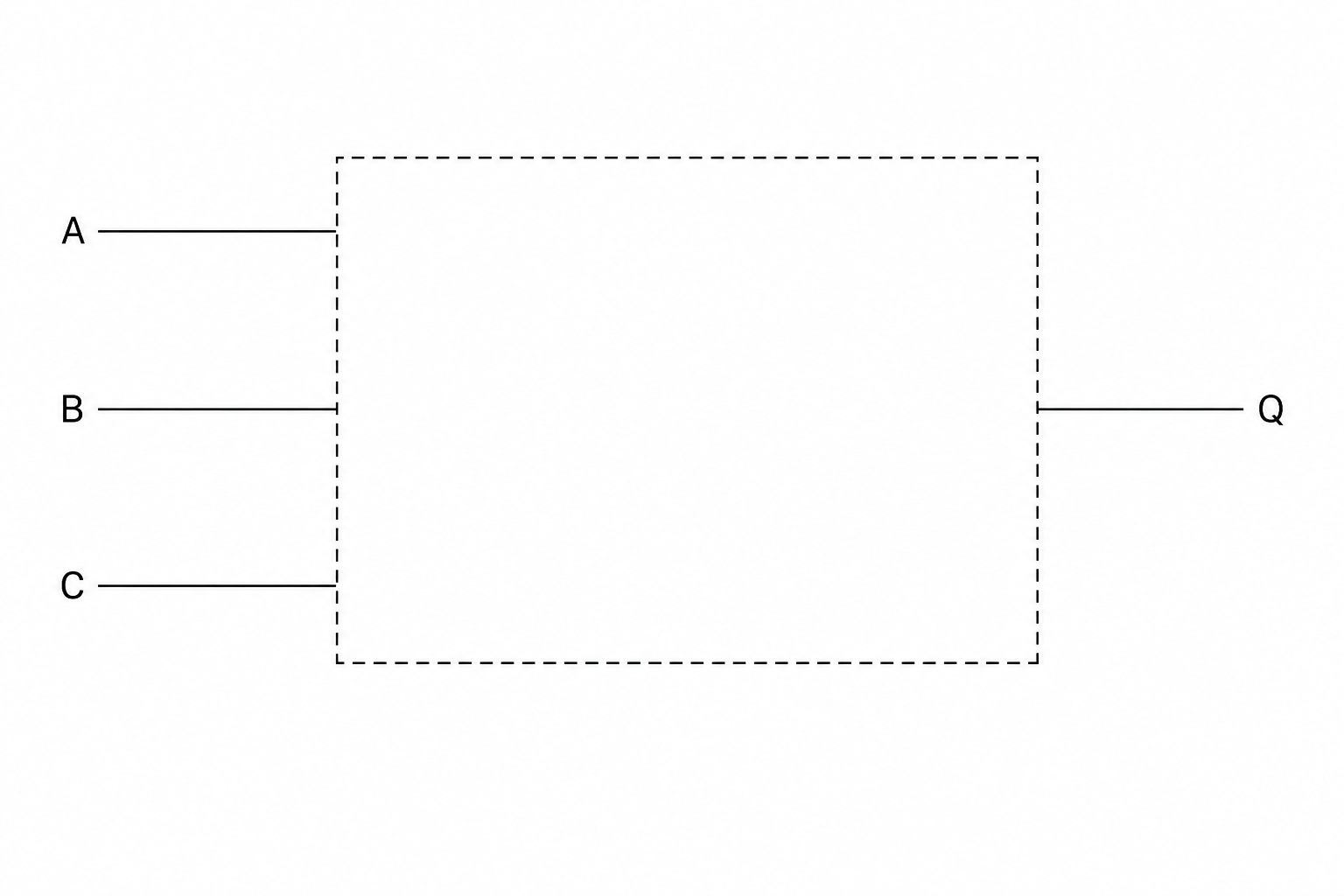

An empty template box for drawing a logic circuit. The inputs A, B, and C are labeled on the left side, and the output Q is labeled on the right side.

[3]

Boolean logic Questions

Practise OCR GCSE Computer Science Boolean logic with exam-style questions for GCSE Computer Science. 27 questions, matched to the OCR GCSE Computer Science (J277) specification and written in Component 01 and Component 02 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
