An environmental monitoring station records sensor status codes. To save bandwidth during transmission, these records are compressed using Run-Length Encoding (RLE).
Each RLE data packet consists of two parts:
- The first 3 bits represent the sensor status code.
- The next 4 bits represent the run length in binary (e.g. a run length of 1 is encoded as
0001and a run length of 6 is encoded as0110).
The data is processed sequentially from the start of Window A to the end of Window B, and the encoding is continuous between windows (meaning if the same status occurs at the end of Window A and the start of Window B, they merge into a single run).

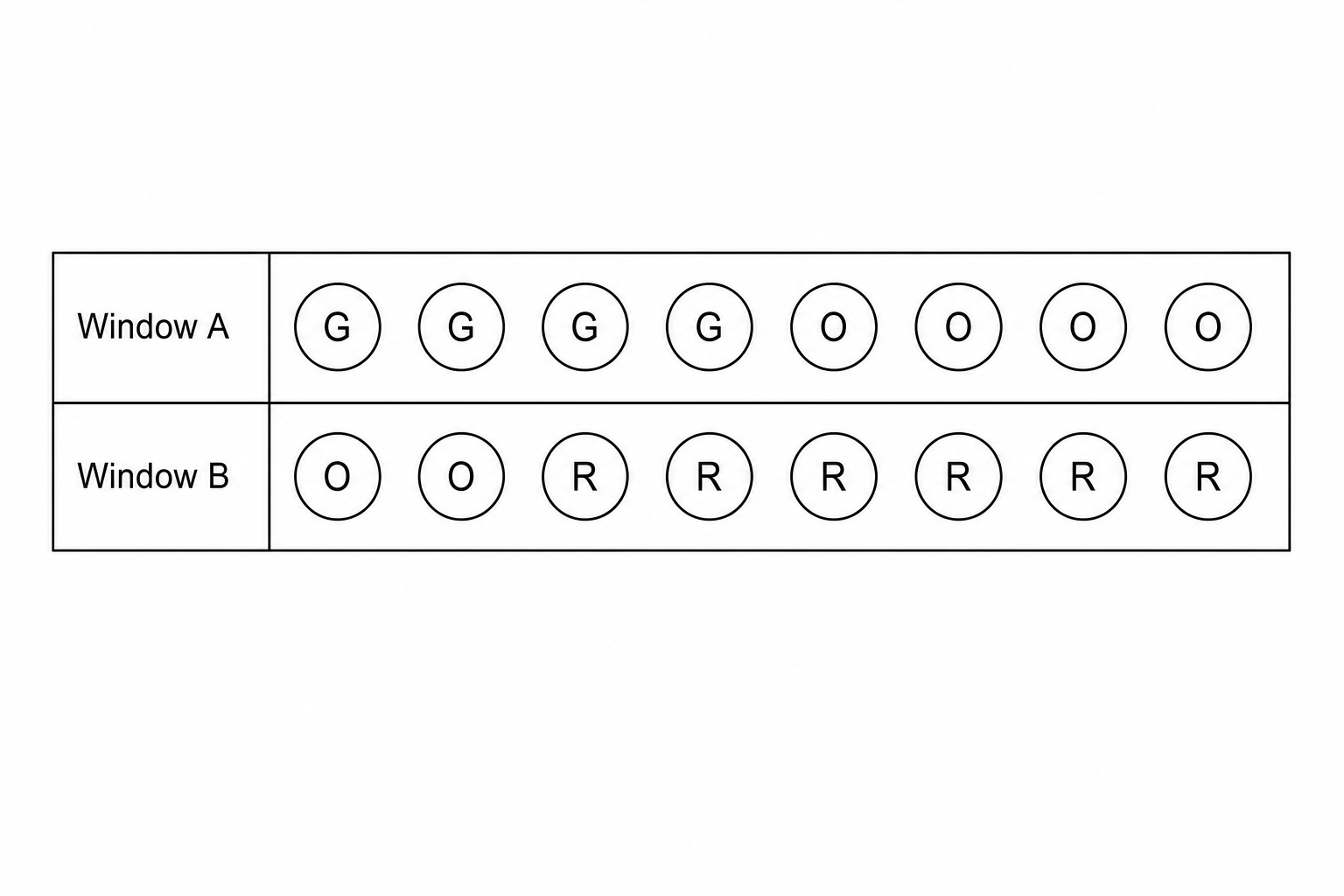

Below is the visual log of the 16 sequential status readings recorded across Window A and Window B:
Status Code Table:
| Status | Label | Binary Code |
|---|---|---|
| Green (Normal) | G | 010 |
| Orange (Warning) | O | 101 |
| Red (Critical) | R | 011 |
Convert the sequence of 16 status readings across both windows into a continuous binary stream using the specified RLE compression method.
