An automated greenhouse ventilation system controls a cooling fan, FFF.

  • The system has two temperature sensors, T1 T1\,T1 and T2T2T2. The fan should turn on if either sensor detects a high temperature.
  • The fan must not turn on if the emergency override switch, EEE, is active (value 1).
  • The output to turn the fan on is FFF.

An incomplete logic circuit for this system is shown below:

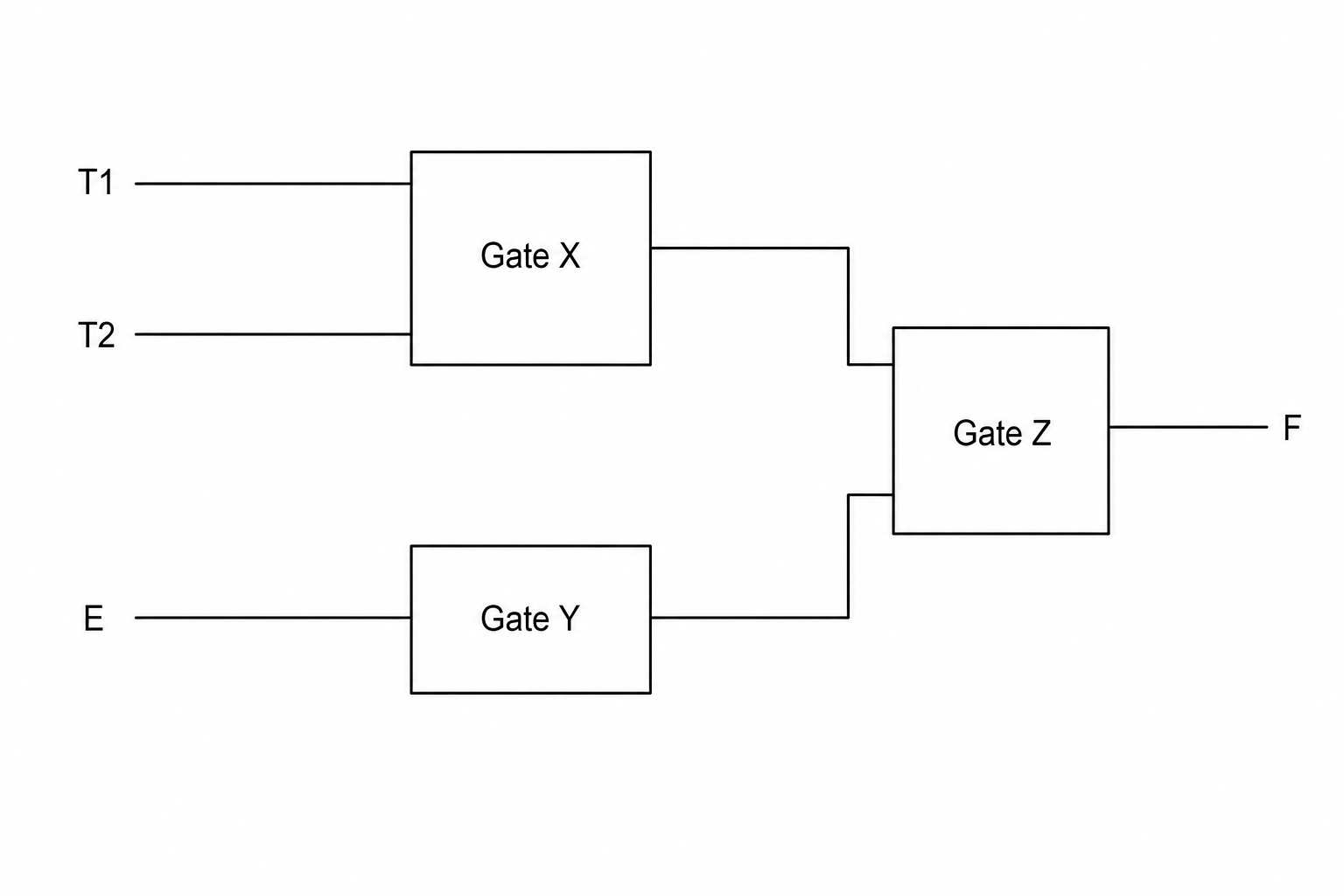

An incomplete logic circuit diagram with inputs T1, T2, and E on the left, and output F on the right. Inputs T1 and T2 are connected to the inputs of Gate X. Input E is connected to the input of Gate Y. The output of Gate X and the output of Gate Y are the two inputs for Gate Z. The output of Gate Z is F.

Identify the three logic gates required to complete this circuit.

  • Gate X:
  • Gate Y:
  • Gate Z:
[3]
