48Easy
0/1

State the type of logic gate labelled G1 G_1\,G1​ in Figure 1.

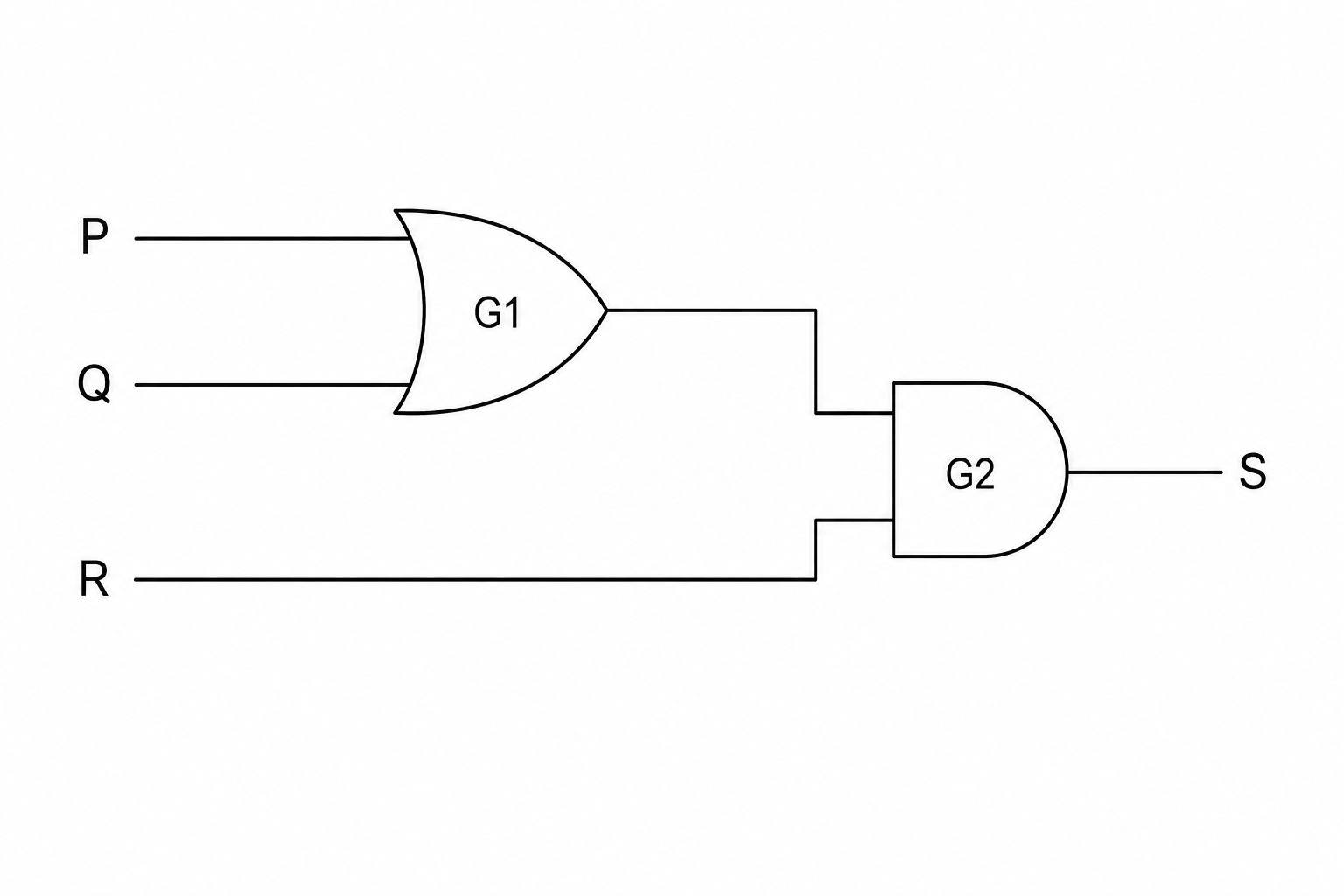

Figure 1: Logic circuit diagram showing three inputs P, Q, and R. Inputs P and Q are connected to a two-input OR gate labelled G1. The output of G1 and input R are connected to a two-input AND gate labelled G2, which produces the final output S.

[1]

Boolean logic Questions

Practise AQA GCSE Computer Science Boolean logic with exam-style questions for GCSE Computer Science. 83 questions, matched to the AQA GCSE Computer Science (8525) specification and written in Paper 1 and Paper 2 style. Every question includes a full worked solution and mark scheme, so you can see where marks are awarded rather than just whether you got the answer right.
