An automated drone safety system uses three inputs to trigger an emergency parachute deployment mechanism.

The parachute deployment mechanism (D) triggers (output is 1) if and only if all of the following conditions are met:

  • the altimeter safety override (A) is off (0)
  • the tilt sensor (T) is on (1)
  • the manual arming switch (M) is on (1)

Complete the logic circuit to represent this system.

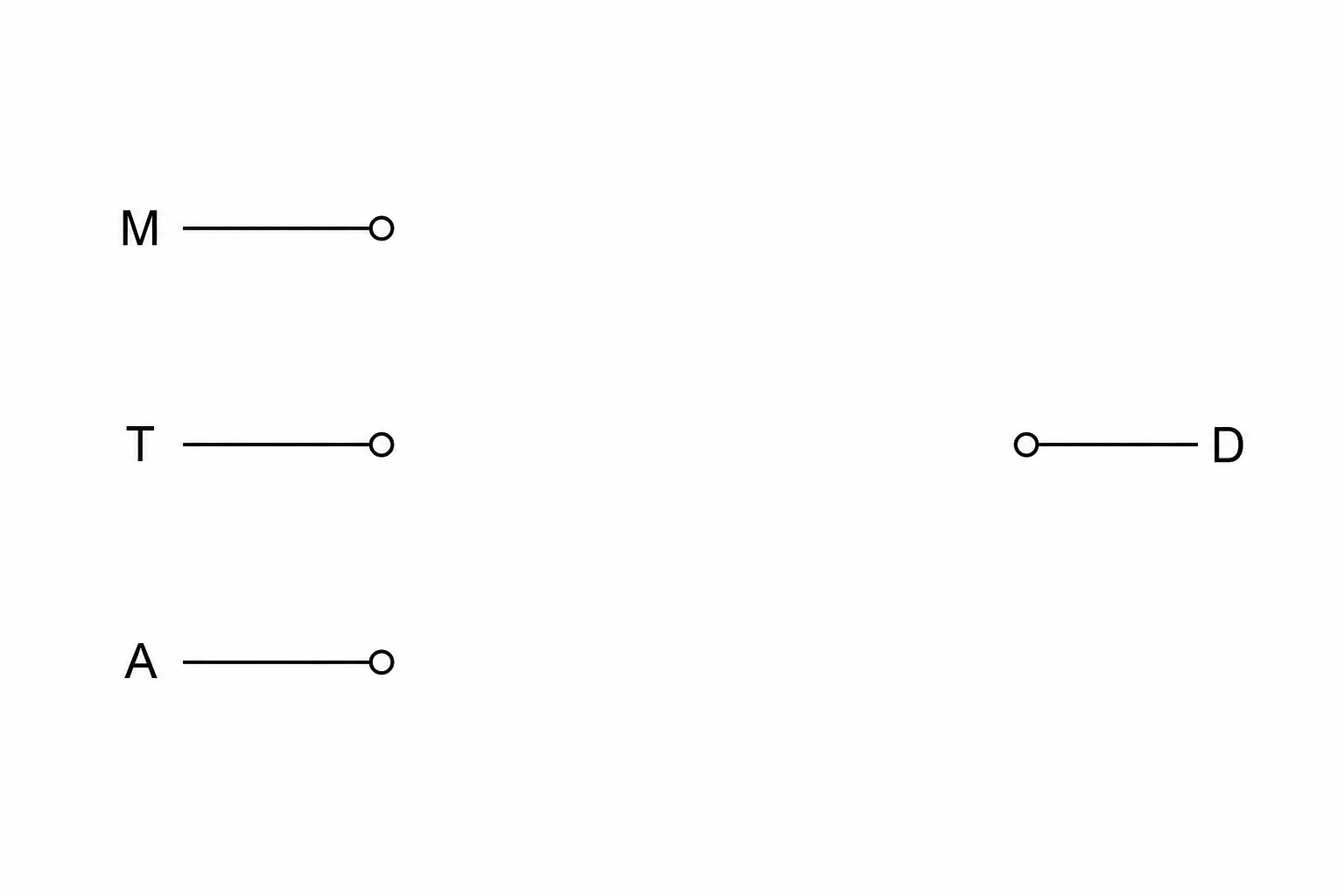

Logic circuit template with inputs M, T, A and output D

Your circuit must use only standard 2-input AND gates and 1-input NOT gates.

[3]
