A bank security system activates an alarm when the master switch is armed (M=1M = 1M=1) and motion is detected (S=1S = 1S=1), OR if the manual panic button is pressed (P=1P = 1P=1) at any time.
Table 1 shows the truth table for this alarm system with inputs:
- M (Master Switch: 0 = Off, 1 = Armed)
- S (Motion Sensor: 0 = Clear, 1 = Detected)
- P (Panic Button: 0 = Not pressed, 1 = Pressed)
- Output A (Alarm: 0 = Quiet, 1 = Sounding)
Table 1
| Master Switch (M) | Motion Sensor (S) | Panic Button (P) | Alarm (A) |
|---|---|---|---|
| 0 | 0 | 0 | 0 |
| 0 | 0 | 1 | 1 |
| 0 | 1 | 0 | 0 |
| 0 | 1 | 1 | 1 |
| 1 | 0 | 0 | 0 |
| 1 | 0 | 1 | 1 |
| 1 | 1 | 0 | 1 |
| 1 | 1 | 1 | 1 |

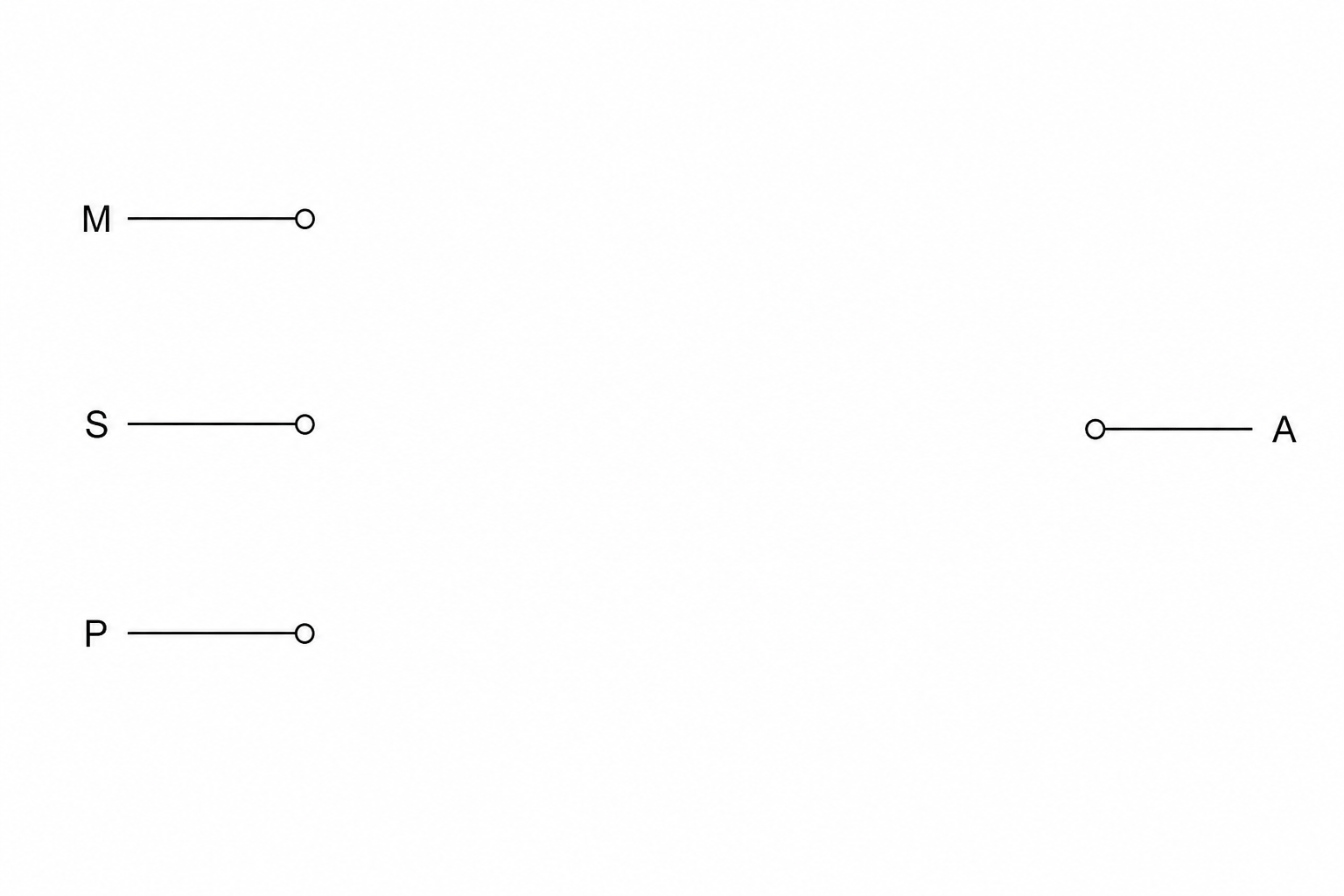

Draw the logic circuit that represents the truth table in Table 1. You must use standard symbols for logic gates.
