7.2 Organisation of an ecosystem

EasyMediumHard
123456789101112131415161718
Question 4
Medium

A student set up a sealed glass chamber containing damp soil, a clover plant (Trifolium repens), and a single woodlouse (Oniscus asellus) to study gas exchange in a closed terrestrial micro-ecosystem. The chamber was equipped with a carbon dioxide (CO2CO_2CO2​) sensor connected to a continuous data logger.

For the first 5 days, the chamber was kept under a bright, constant light source. At the start of Day 5, the chamber was completely wrapped in light-proof black foil. On Day 8, the woodlouse died inside the chamber.

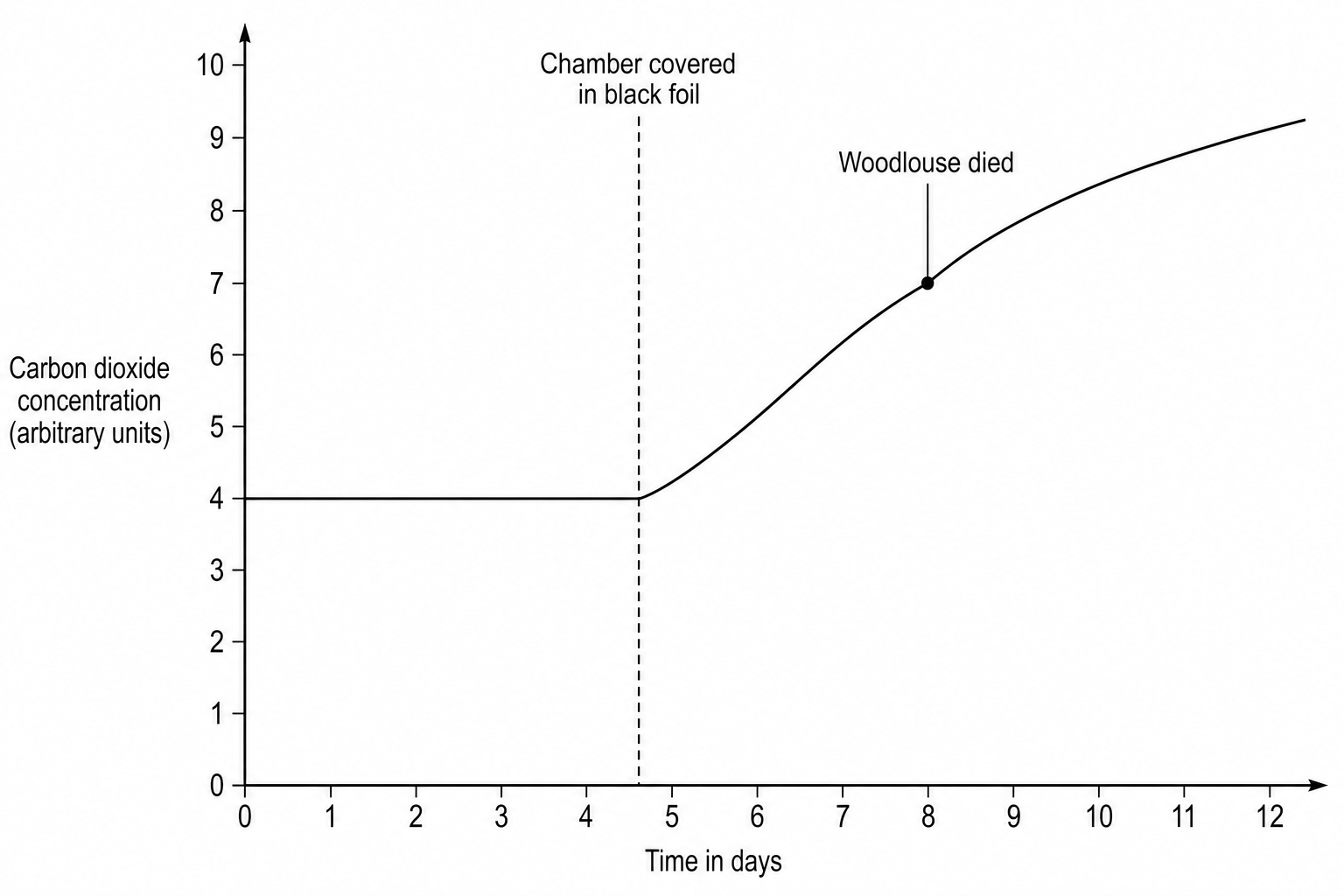

CO2 concentration graph

a.

Explain why the concentration of carbon dioxide in the chamber remained constant between Day 0 and Day 5.

[2]
b.

Suggest why the concentration of carbon dioxide increased between Day 5 and Day 8.

[2]
c.

Explain why the death of the woodlouse on Day 8 caused the carbon dioxide concentration to continue to increase after Day 8.

[3]
