From series voltage sharing to a potential divider

From series voltage sharing to a potential divider

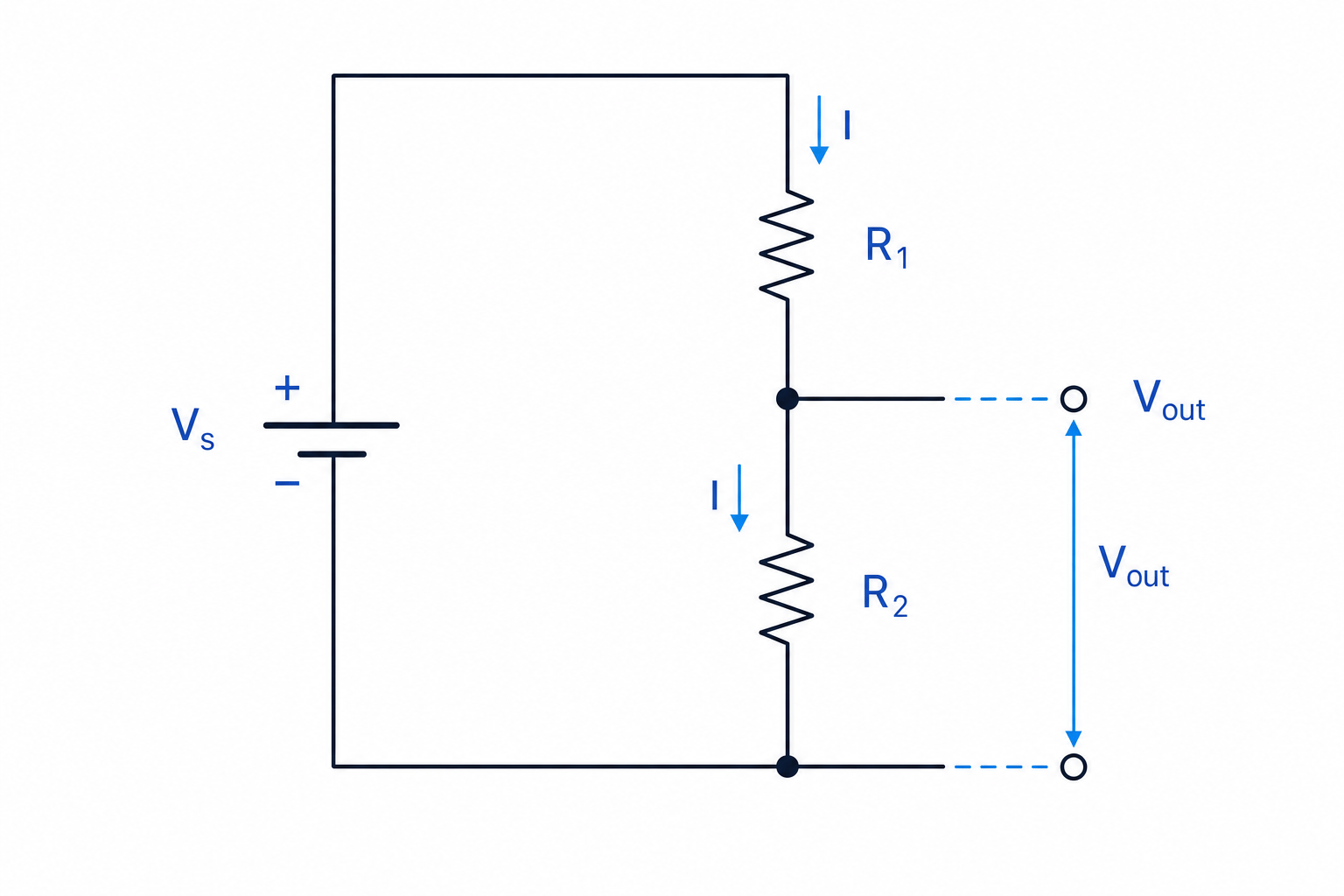

Potential divider circuit with supply Vs, series resistors R1 and R2, and output voltage Vout measured across the lower resistor

A potential divider is a series circuit that produces an output voltage which is a fraction of the supply voltage. Because the resistors are in series, the same current flows through both, so the larger resistance gets the larger share of the voltage.

Potential dividers and sensors Lesson

  1. AS Level
  2. /Physics
  3. /Potential dividers and sensors

Step-by-step lessons covering Edexcel AS Level Physics Potential dividers and sensors for AS Level Physics. Each lesson works through exam-style questions.
