Reading a sinusoidal AC graph

Reading a sinusoidal AC graph

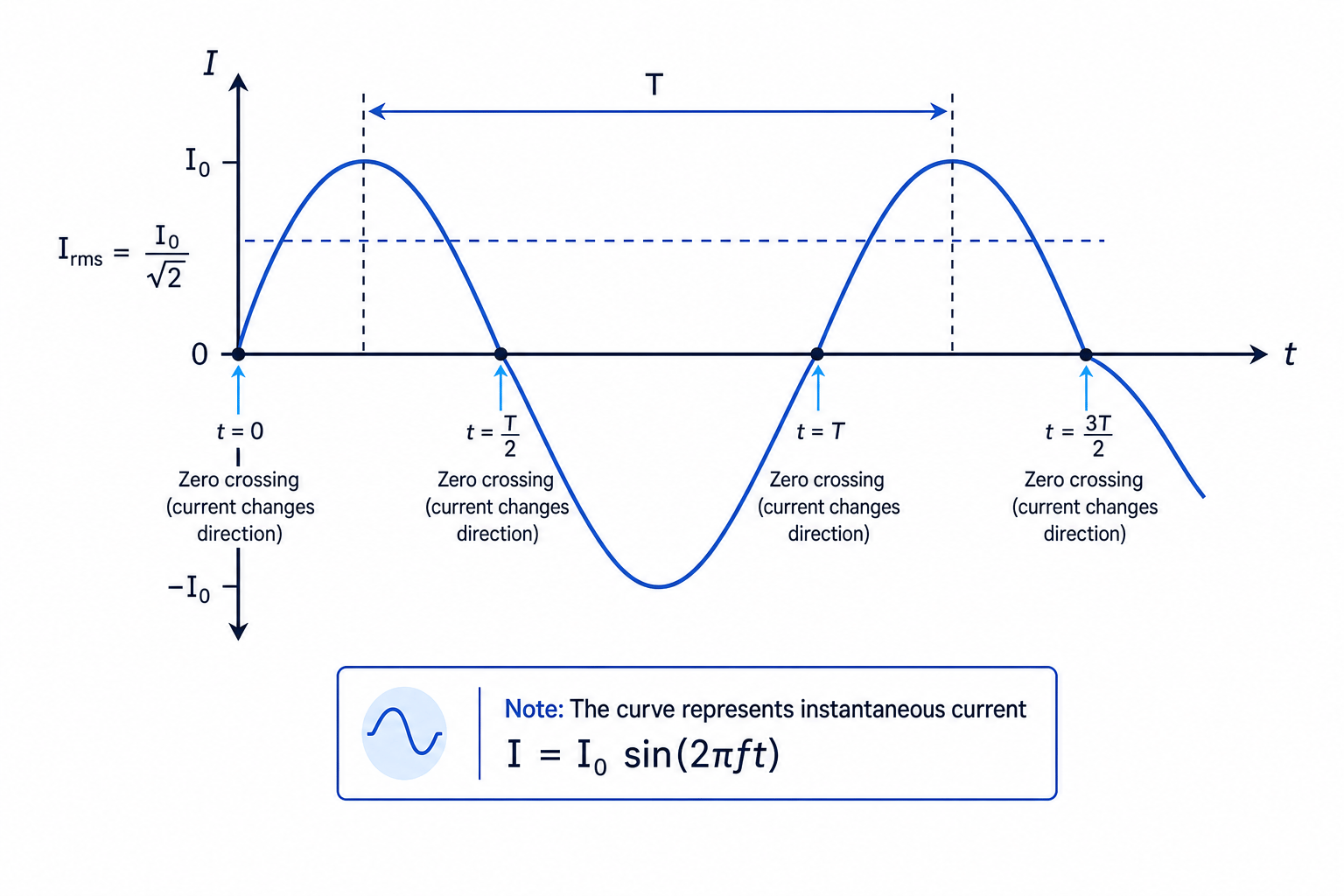

Sine-wave graph of alternating current against time with peak current, rms level, period, and zero crossings labelled

An alternating current changes direction periodically, unlike direct current which flows in one direction only. In many exam questions the waveform is sinusoidal, so the instantaneous current can be written as I=I0sin⁡(2πft)I = I_0 \sin(2\pi ft)I=I0​sin(2πft). The same pattern applies to voltage, with V=V0sin⁡(2πft)V = V_0 \sin(2\pi ft)V=V0​sin(2πft).
