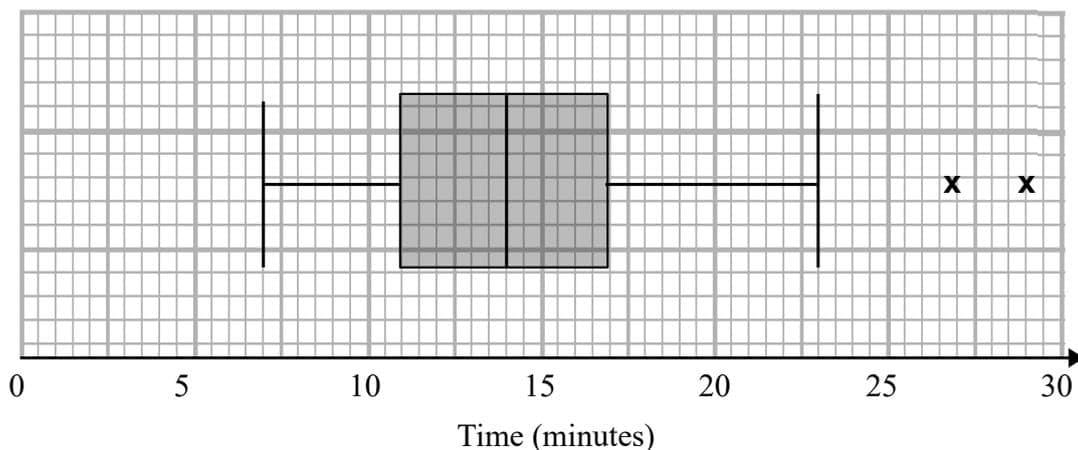

Children from two schools A and B took part in a competition to complete a puzzle. The distribution of times taken, to the nearest minute, by children in school A are shown in the box plot below.
Write down the time by which 75% of the children in school A had completed the puzzle.
State what the two crosses (x) represent on the box plot above. Interpret these in context.
For school B the shortest time taken was 6 minutes, the longest time taken was 22 minutes and the quartiles were 12, 15 and 17 minutes respectively. A value that is greater than Q3+1.5×(Q3−Q1)Q_3 + 1.5 \times (Q_3 - Q_1)Q3+1.5×(Q3−Q1) or smaller than Q1−1.5×(Q3−Q1)Q_1 - 1.5 \times (Q_3 - Q_1)Q1−1.5×(Q3−Q1) is defined as an outlier. Determine if there are any outliers.

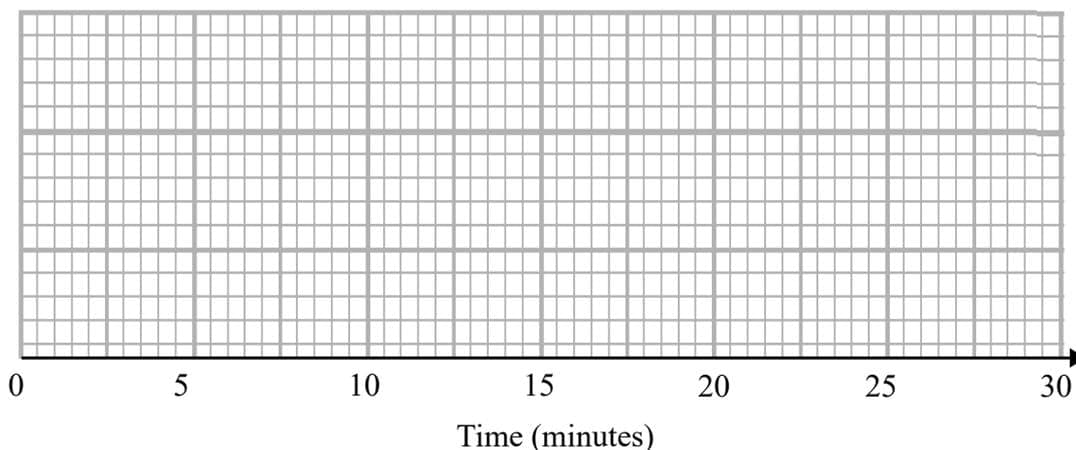

Draw a box plot for this information.
Compare the two distributions.
