10.4 Solving Trigonometric Equations

What you'll learn

  • How to find all solutions to trigonometric equations in a given interval.
  • How to handle shifted or stretched angles such as 2x+10∘2x+10^\circ2x+10∘.
  • How to solve equations involving sin⁡2x\sin^2 xsin2x, cos⁡2x\cos^2 xcos2x or tan⁡2x\tan^2 xtan2x.
  • How to use identities and factorisation without losing valid answers.

The big idea: one trig equation can have several answers

A trigonometric equation is an equation involving a trig function such as sin⁡x\sin xsinx, cos⁡x\cos xcosx or tan⁡x\tan xtanx.

In this topic, angles are measured in degrees, so make sure your calculator is in degree mode. The key challenge is that trig graphs repeat, so one calculator answer is usually not enough.

Definition

Solution interval

A solution interval tells you the range of angles you are allowed to give as answers. For example, 0≤x<360∘0 \le x < 360^\circ0≤x<360∘ means include 0°, include everything up to 360°, but do not include 360° itself.

A graph helps you see why there can be more than one answer. Solving sin⁡(x−30∘)=0.3\sin(x-30^\circ)=0.3sin(x−30∘)=0.3 means finding where the sine curve meets the horizontal line y=0.3y=0.3y=0.3.

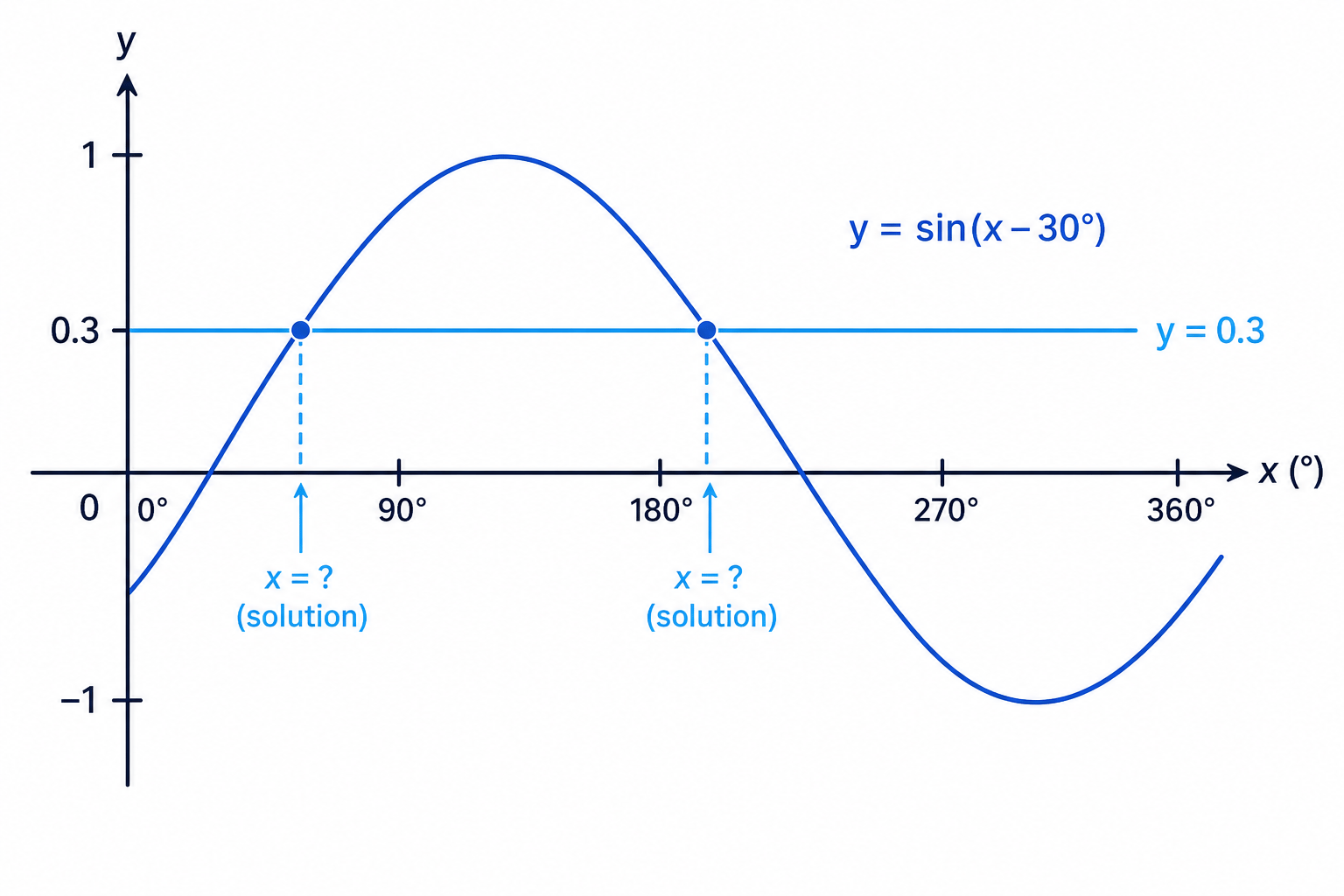

The shifted sine graph intersects the line y=0.3 more than once, showing why a trigonometric equation can have several solutions.

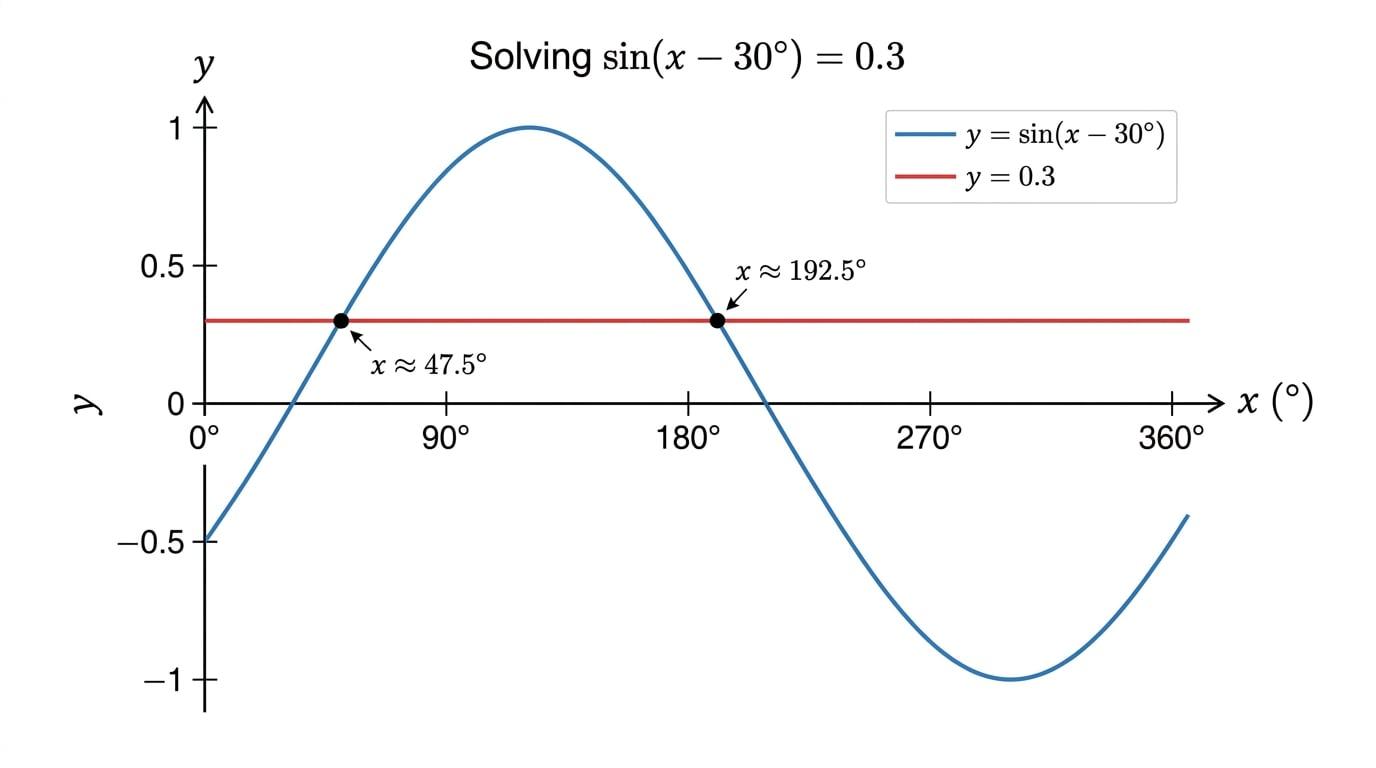

Graph of y = sin(x - 30°) and y = 0.3 showing two intersections

Key Idea

The calculator gives a starting point

Your calculator gives a principal value, which is the first angle it finds. You must then use symmetry and periodicity to find all the other angles in the required interval.

A reliable routine for shifted sine and cosine equations

For equations like cos⁡(2x+10∘)=0.4\cos(2x+10^\circ)=0.4cos(2x+10∘)=0.4, the expression inside the trig function is not just xxx. A good method is to temporarily replace the inside angle with a new letter.

Definition

Period

The period of a trig function is how long it takes before the graph repeats. Sine and cosine repeat every 360°, while tangent repeats every 180°.

Example

Solving a shifted cosine equation

Solve cos⁡(2x+10∘)=0.4\cos(2x+10^\circ)=0.4cos(2x+10∘)=0.4 for 0≤x<180∘0 \le x < 180^\circ0≤x<180∘. Give your answers to one decimal place.

  1. Let the inside angle be uuu:

    u=2x+10∘u = 2x+10^\circu=2x+10∘
  2. Convert the interval for xxx into an interval for uuu. If 0≤x<180∘0 \le x < 180^\circ0≤x<180∘, then:

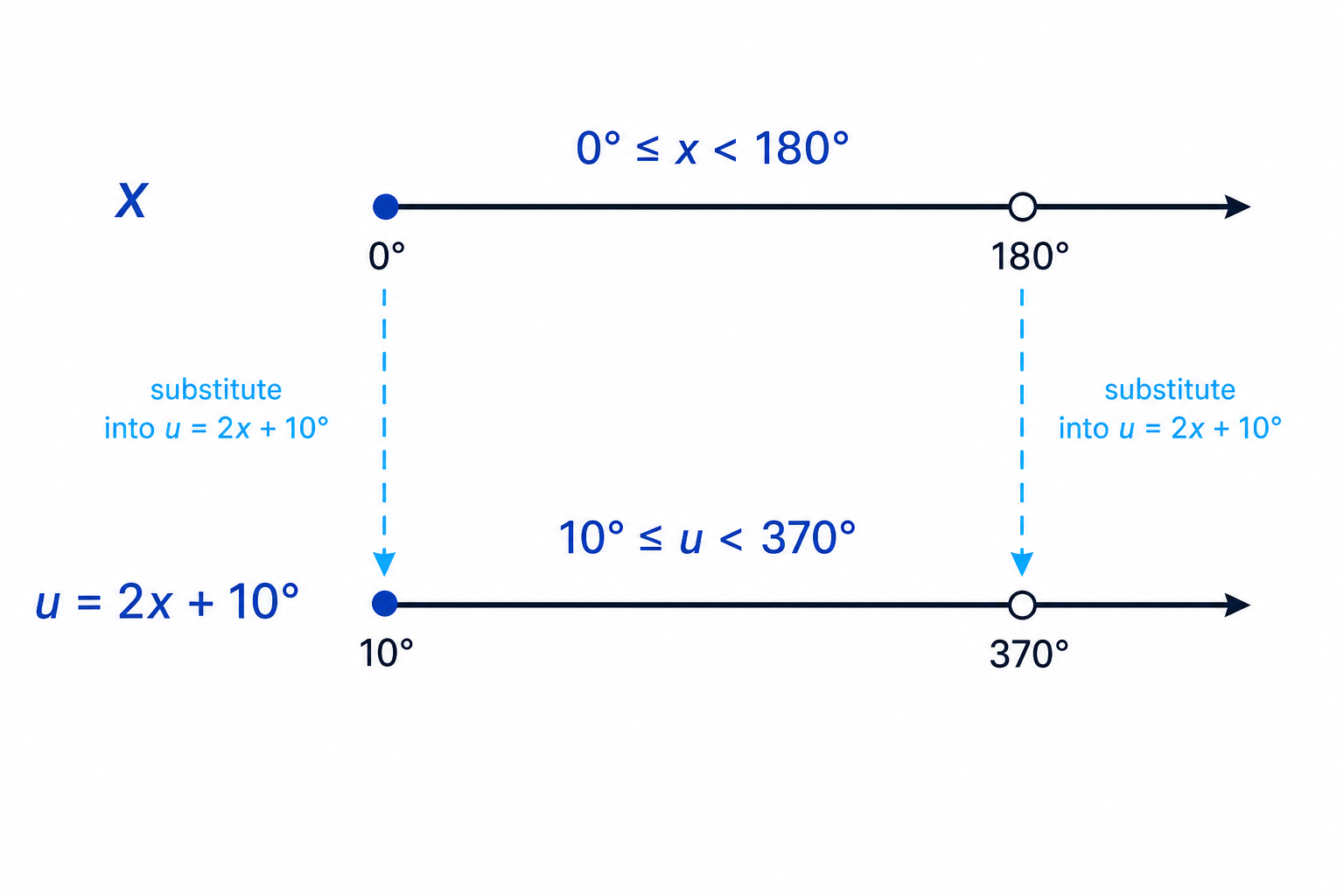

The substitution u=2x+10^\circ stretches and shifts the original x-interval to the corresponding u-interval.

$$
10^\circ \le u < 370^\circ
$$

3. Use your calculator to find the principal value:

$$
\arccos(0.4)=66.4218\ldots^\circ
$$

4. Cosine is positive in quadrants I and IV, so within 10∘≤u<370∘10^\circ \le u < 370^\circ10∘≤u<370∘:

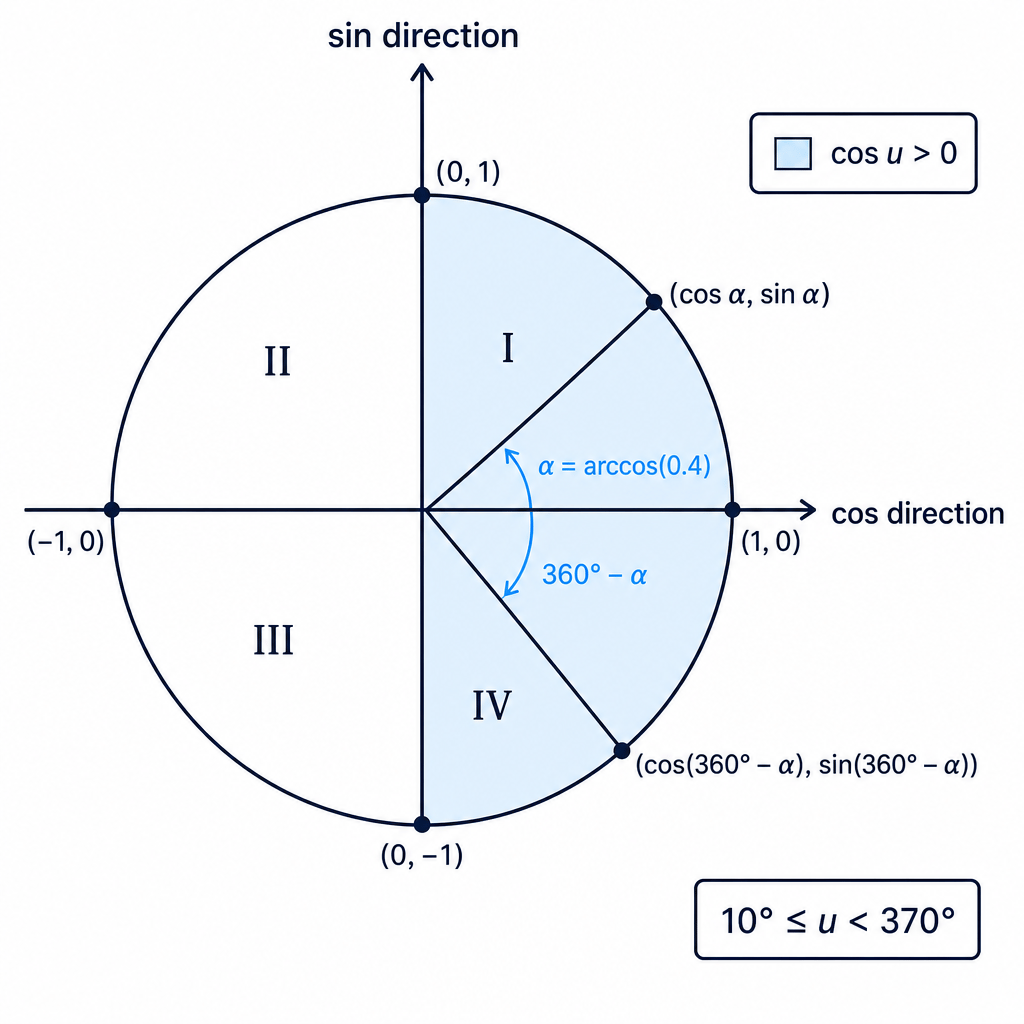

Cosine is positive in quadrants I and IV, giving two possible u-angles in the interval.

$$
u = 66.4218\ldots^\circ,\quad 293.5781\ldots^\circ
$$

5. Convert back to xxx using u=2x+10∘u=2x+10^\circu=2x+10∘:

$$
\begin{aligned}
x &= \frac{66.4218\ldots-10}{2}=28.2109\ldots^\circ \\
x &= \frac{293.5781\ldots-10}{2}=141.7890\ldots^\circ
\end{aligned}
$$

6. Round to one decimal place:

$$
x = 28.2^\circ,\ 141.8^\circ
$$
Tip

Work with the inside angle first

If the equation contains sin⁡(3θ−20∘)\sin(3\theta-20^\circ)sin(3θ−20∘), solve for the whole angle 3θ−20∘3\theta-20^\circ3θ−20∘ first. Only divide by 3 and add 20° at the end.

Tangent equations: remember the shorter period

Tangent behaves differently from sine and cosine because tan⁡x\tan xtanx repeats every 180°. This often makes tangent equations quicker, but it is easy to miss a solution if you only use the calculator answer.

Example

Solving a shifted tangent equation

Solve tan⁡(θ+40∘)=−1.8\tan(\theta+40^\circ)=-1.8tan(θ+40∘)=−1.8 for −180∘≤θ<180∘-180^\circ \le \theta < 180^\circ−180∘≤θ<180∘. Give your answers to one decimal place.

  1. Let the inside angle be uuu:

    u=θ+40∘u=\theta+40^\circu=θ+40∘
  2. Convert the interval. If −180∘≤θ<180∘-180^\circ \le \theta < 180^\circ−180∘≤θ<180∘, then:

    −140∘≤u<220∘-140^\circ \le u < 220^\circ−140∘≤u<220∘
  3. Find one calculator solution:

    arctan⁡(−1.8)=−60.9453…∘\arctan(-1.8)=-60.9453\ldots^\circarctan(−1.8)=−60.9453…∘
  4. Since tangent has period 180°, add or subtract 180° until you have all values in the interval:

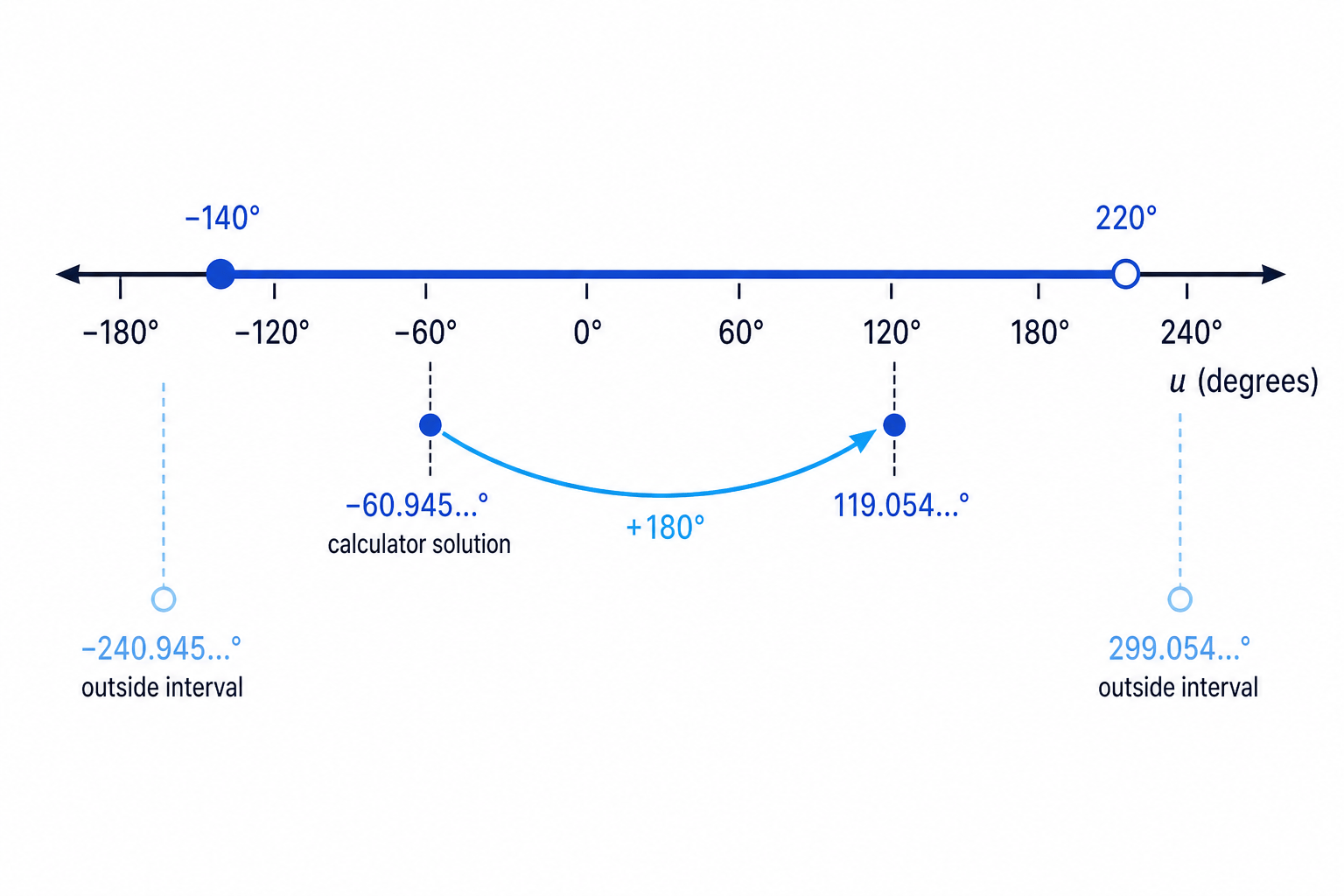

Tangent solutions repeat every 180^\circ, so the calculator solution must be shifted by multiples of 180^\circ within the allowed interval.

$$
u=-60.9453\ldots^\circ,\quad 119.0546\ldots^\circ
$$

5. Convert back to θ\thetaθ using θ=u−40∘\theta=u-40^\circθ=u−40∘:

$$
\theta=-100.9453\ldots^\circ,\quad 79.0546\ldots^\circ
$$

6. Round to one decimal place:

$$
\theta=-100.9^\circ,\ 79.1^\circ
$$

Squared trig functions

A squared trig function means the whole trig value is squared. For example, tan⁡2x\tan^2 xtan2x means (tan⁡x)2(\tan x)^2(tanx)2, not tan⁡(x2)\tan(x^2)tan(x2).

When you square-root both sides, remember the positive and negative possibilities.

Example

Solving a squared tangent equation

Solve tan⁡2x=5\tan^2 x=5tan2x=5 for 0≤x<360∘0 \le x < 360^\circ0≤x<360∘. Give your answers to one decimal place.

  1. Square-root both sides:

    tan⁡x=±5\tan x=\pm\sqrt{5}tanx=±5​
  2. Find the reference angle:

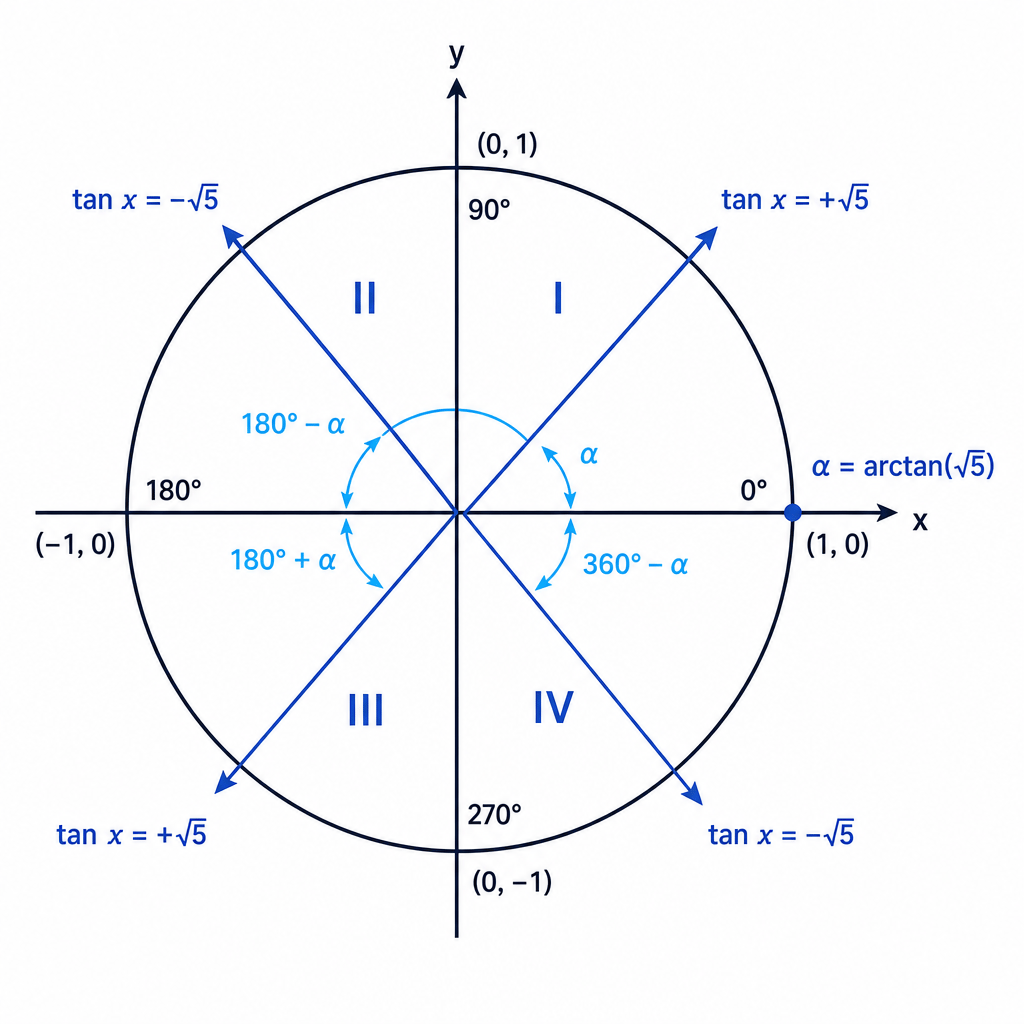

The four tangent solutions come from using the same reference angle in all four quadrants after taking both positive and negative square roots.

$$
\arctan(\sqrt{5})=65.9051\ldots^\circ
$$

3. For tan⁡x=5\tan x=\sqrt{5}tanx=5​, tangent is positive in quadrants I and III:

$$
x=65.9051\ldots^\circ,\quad 245.9051\ldots^\circ
$$

4. For tan⁡x=−5\tan x=-\sqrt{5}tanx=−5​, tangent is negative in quadrants II and IV:

$$
x=114.0948\ldots^\circ,\quad 294.0948\ldots^\circ
$$

5. Round to one decimal place:

$$
x=65.9^\circ,\ 114.1^\circ,\ 245.9^\circ,\ 294.1^\circ
$$
Common Mistake

Forgetting the negative square root

From tan⁡2x=5\tan^2 x=5tan2x=5, do not only write tan⁡x=5\tan x=\sqrt{5}tanx=5​. You also need tan⁡x=−5\tan x=-\sqrt{5}tanx=−5​.

Using identities to make quadratics

An identity is an equation that is true for all allowed values of the variable. The most useful identity here is:

sin⁡2x+cos⁡2x=1\sin^2 x+\cos^2 x=1sin2x+cos2x=1

So:

sin⁡2x=1−cos⁡2x\sin^2 x=1-\cos^2 xsin2x=1−cos2x

and:

cos⁡2x=1−sin⁡2x\cos^2 x=1-\sin^2 xcos2x=1−sin2x

A quadratic equation is an equation involving a squared term, such as c2c^2c2. In trig equations, you might make a quadratic in sin⁡x\sin xsinx or cos⁡x\cos xcosx.

Example

Changing to a quadratic in cosine

Solve 3sin⁡2x=5cos⁡x+13\sin^2 x=5\cos x+13sin2x=5cosx+1 for 0≤x<360∘0 \le x < 360^\circ0≤x<360∘. Give your answers to one decimal place.

  1. Since the right-hand side contains cos⁡x\cos xcosx, rewrite sin⁡2x\sin^2 xsin2x using sin⁡2x=1−cos⁡2x\sin^2 x=1-\cos^2 xsin2x=1−cos2x:

    3(1−cos⁡2x)=5cos⁡x+13(1-\cos^2 x)=5\cos x+13(1−cos2x)=5cosx+1
  2. Rearrange into a quadratic:

    3−3cos⁡2x=5cos⁡x+13cos⁡2x+5cos⁡x−2=0\begin{aligned} 3-3\cos^2 x &= 5\cos x+1 \\ 3\cos^2 x+5\cos x-2 &= 0 \end{aligned}3−3cos2x3cos2x+5cosx−2​=5cosx+1=0​
  3. Factorise the quadratic:

    (3cos⁡x−1)(cos⁡x+2)=0(3\cos x-1)(\cos x+2)=0(3cosx−1)(cosx+2)=0
  4. Solve each factor:

    cos⁡x=13orcos⁡x=−2\cos x=\frac{1}{3}\quad \text{or}\quad \cos x=-2cosx=31​orcosx=−2
  5. Reject cos⁡x=−2\cos x=-2cosx=−2 because cosine values must be between -1 and 1. Now solve cos⁡x=13\cos x=\frac{1}{3}cosx=31​:

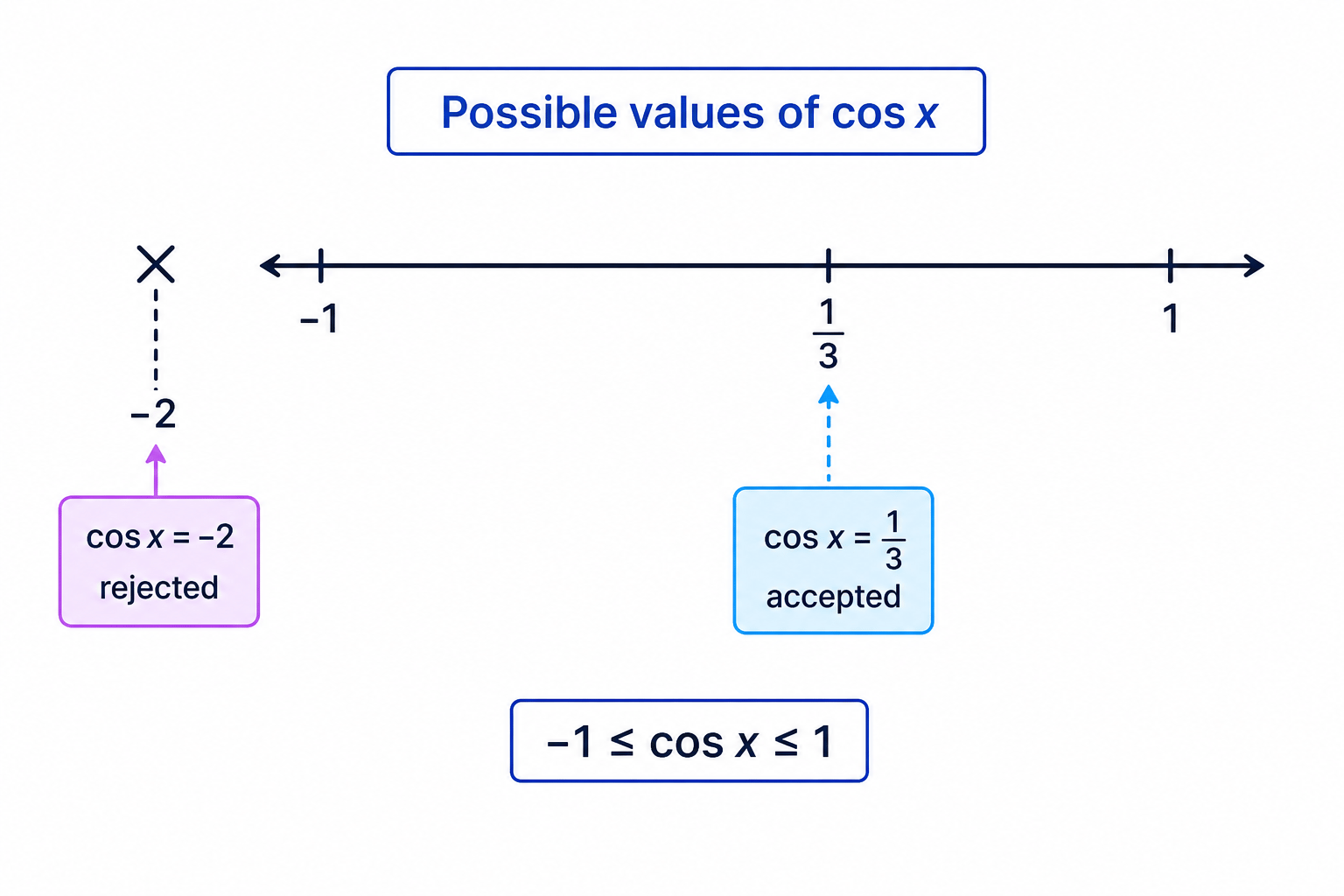

Cosine values must lie between -1 and 1, so \cos x=-2 is impossible for a real angle.

$$
x=70.5287\ldots^\circ,\quad 289.4712\ldots^\circ
$$

6. Round to one decimal place:

$$
x=70.5^\circ,\ 289.5^\circ
$$
Common Mistake

Check possible trig values

For real angles, sin⁡x\sin xsinx and cos⁡x\cos xcosx must lie between -1 and 1. If a quadratic gives sin⁡x=1.4\sin x=1.4sinx=1.4 or cos⁡x=−2\cos x=-2cosx=−2, reject that branch.

Factorising without losing solutions

Some equations mix tangent with sine or cosine. The safest method is usually to rewrite tan⁡x\tan xtanx as sin⁡xcos⁡x\frac{\sin x}{\cos x}cosxsinx​, then factorise.

Example

Do not divide away a solution

Solve 2tan⁡x=3sin⁡x2\tan x=3\sin x2tanx=3sinx for 0≤x<360∘0 \le x < 360^\circ0≤x<360∘. Give your answers to one decimal place where appropriate.

  1. Rewrite tangent as sine over cosine:

    2sin⁡xcos⁡x=3sin⁡x\frac{2\sin x}{\cos x}=3\sin xcosx2sinx​=3sinx
  2. Multiply by cos⁡x\cos xcosx. The original equation is already undefined when cos⁡x=0\cos x=0cosx=0, so 90° and 270° cannot be answers:

    2sin⁡x=3sin⁡xcos⁡x2\sin x=3\sin x\cos x2sinx=3sinxcosx
  3. Bring everything to one side and factorise:

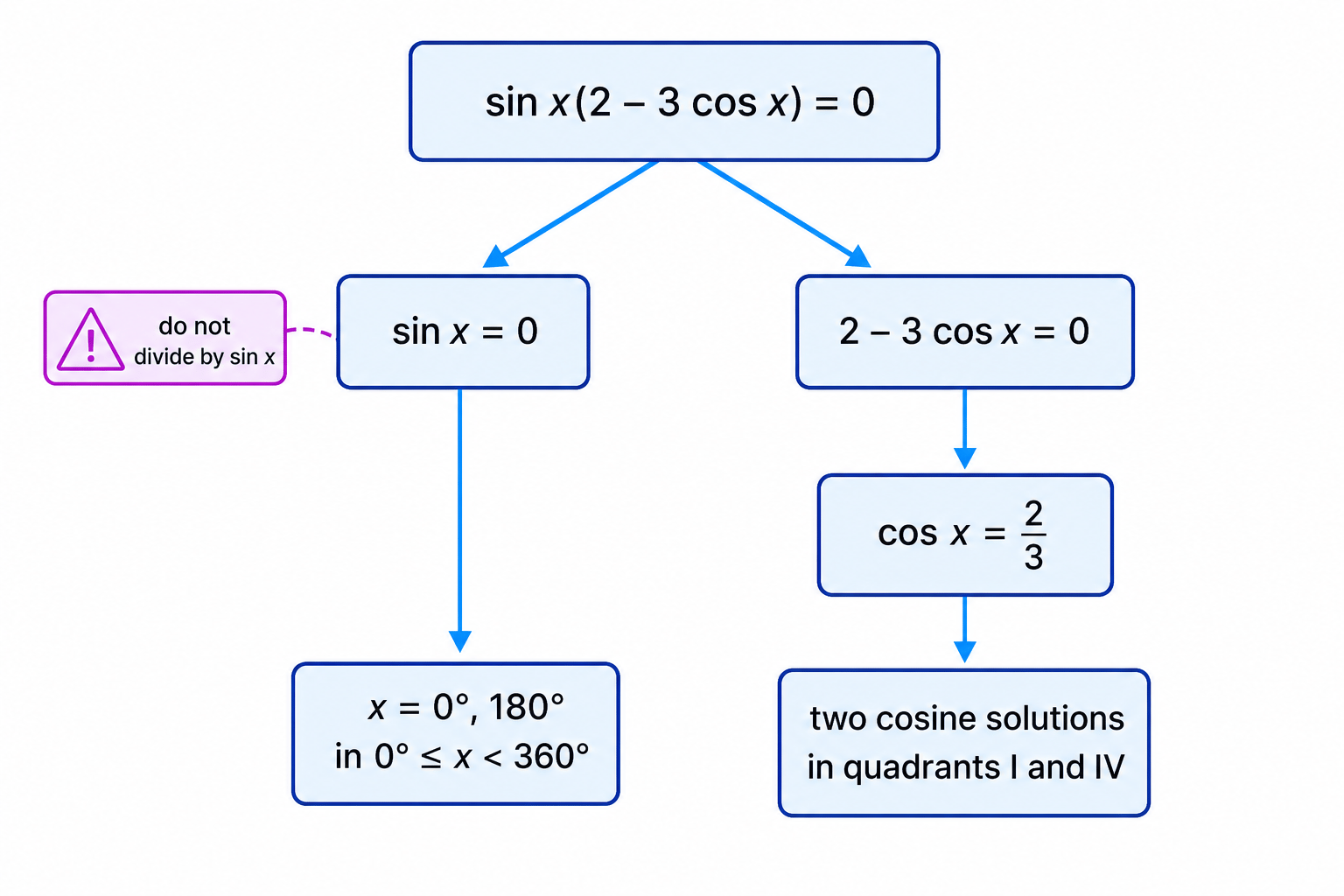

Factorising creates two branches of solutions, avoiding the loss of answers that would happen if dividing by \sin x.

$$
\sin x(2-3\cos x)=0
$$

4. Solve each factor:

$$
\sin x=0\quad \text{or}\quad \cos x=\frac{2}{3}
$$

5. Find the values in 0≤x<360∘0 \le x < 360^\circ0≤x<360∘:

$$
x=0^\circ,\ 48.1896\ldots^\circ,\ 180^\circ,\ 311.8103\ldots^\circ
$$

6. Round where needed:

$$
x=0^\circ,\ 48.2^\circ,\ 180^\circ,\ 311.8^\circ
$$
Common Mistake

Dividing by a trig factor

If you divide both sides by sin⁡x\sin xsinx, you lose the solutions where sin⁡x=0\sin x=0sinx=0. Factorising keeps those solutions visible.

Double-angle equations

A double angle is an angle such as 2x2x2x. Treat 2x2x2x as the angle you are solving for first, then divide by 2 at the end.

Example

Solving a double-angle equation

Solve 2sin⁡(2x)tan⁡(2x)=cos⁡(2x)+12\sin(2x)\tan(2x)=\cos(2x)+12sin(2x)tan(2x)=cos(2x)+1 for 0≤x<180∘0 \le x < 180^\circ0≤x<180∘. Give your answers to two decimal places.

  1. Let c=cos⁡(2x)c=\cos(2x)c=cos(2x). Also use tan⁡(2x)=sin⁡(2x)cos⁡(2x)\tan(2x)=\frac{\sin(2x)}{\cos(2x)}tan(2x)=cos(2x)sin(2x)​ and sin⁡2(2x)=1−cos⁡2(2x)\sin^2(2x)=1-\cos^2(2x)sin2(2x)=1−cos2(2x):

    2(1−c2)c=c+1\frac{2(1-c^2)}{c}=c+1c2(1−c2)​=c+1
  2. Multiply by ccc and rearrange:

    2−2c2=c2+c3c2+c−2=0\begin{aligned} 2-2c^2 &= c^2+c \\ 3c^2+c-2 &= 0 \end{aligned}2−2c23c2+c−2​=c2+c=0​
  3. Factorise:

    (3c−2)(c+1)=0(3c-2)(c+1)=0(3c−2)(c+1)=0
  4. So:

    cos⁡(2x)=23orcos⁡(2x)=−1\cos(2x)=\frac{2}{3}\quad \text{or}\quad \cos(2x)=-1cos(2x)=32​orcos(2x)=−1
  5. Since 0≤x<180∘0 \le x < 180^\circ0≤x<180∘, the inside angle satisfies 0≤2x<360∘0 \le 2x < 360^\circ0≤2x<360∘:

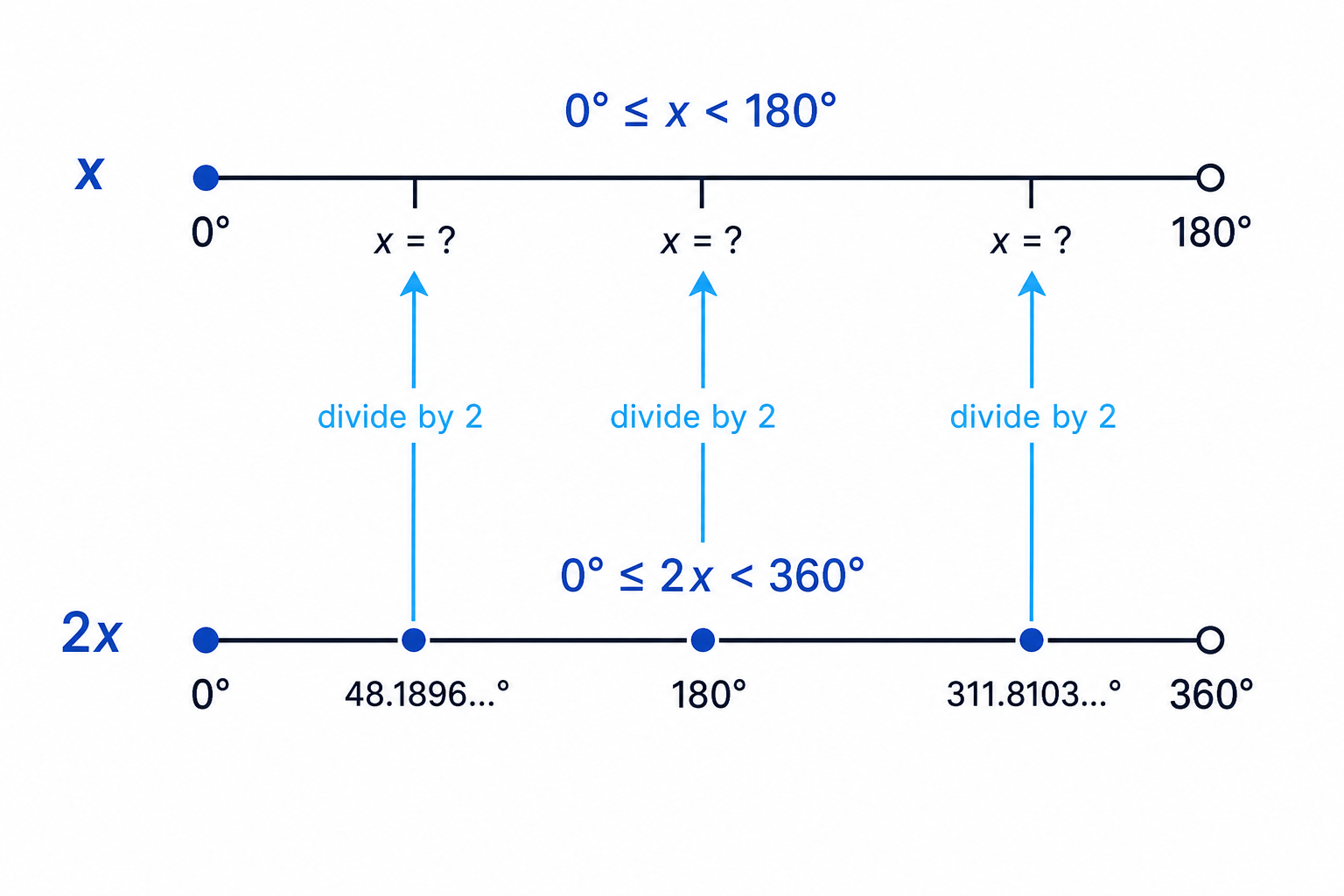

For a double-angle equation, solve for 2x over the doubled interval before halving the answers.

$$
2x=48.1896\ldots^\circ,\ 180^\circ,\ 311.8103\ldots^\circ
$$

6. Divide by 2:

$$
x=24.09^\circ,\ 90^\circ,\ 155.91^\circ
$$
Exam technique

In the exam

  1. Write down the interval for the inside angle before using your calculator.

  2. Use symmetry or the period of the trig function to find every possible angle.

  3. If the equation can be factorised, factorise instead of dividing by a trig expression.

  4. Substitute or mentally check your answers in the original equation, especially if you multiplied by something involving trig.

Self review

Check yourself

  • Which trig functions have period 360°, and which has period 180°?

  • Why does tan⁡2x=4\tan^2 x=4tan2x=4 lead to two separate equations?

  • In an equation like 4sin⁡xcos⁡x=2sin⁡x4\sin x\cos x=2\sin x4sinxcosx=2sinx, why might dividing by sin⁡x\sin xsinx be dangerous?
