Electromagnetism

Question 7

A flat coil has 300 turns and a cross-sectional area of $2.50 \times 10^{-4}\text{ m}^2$ .

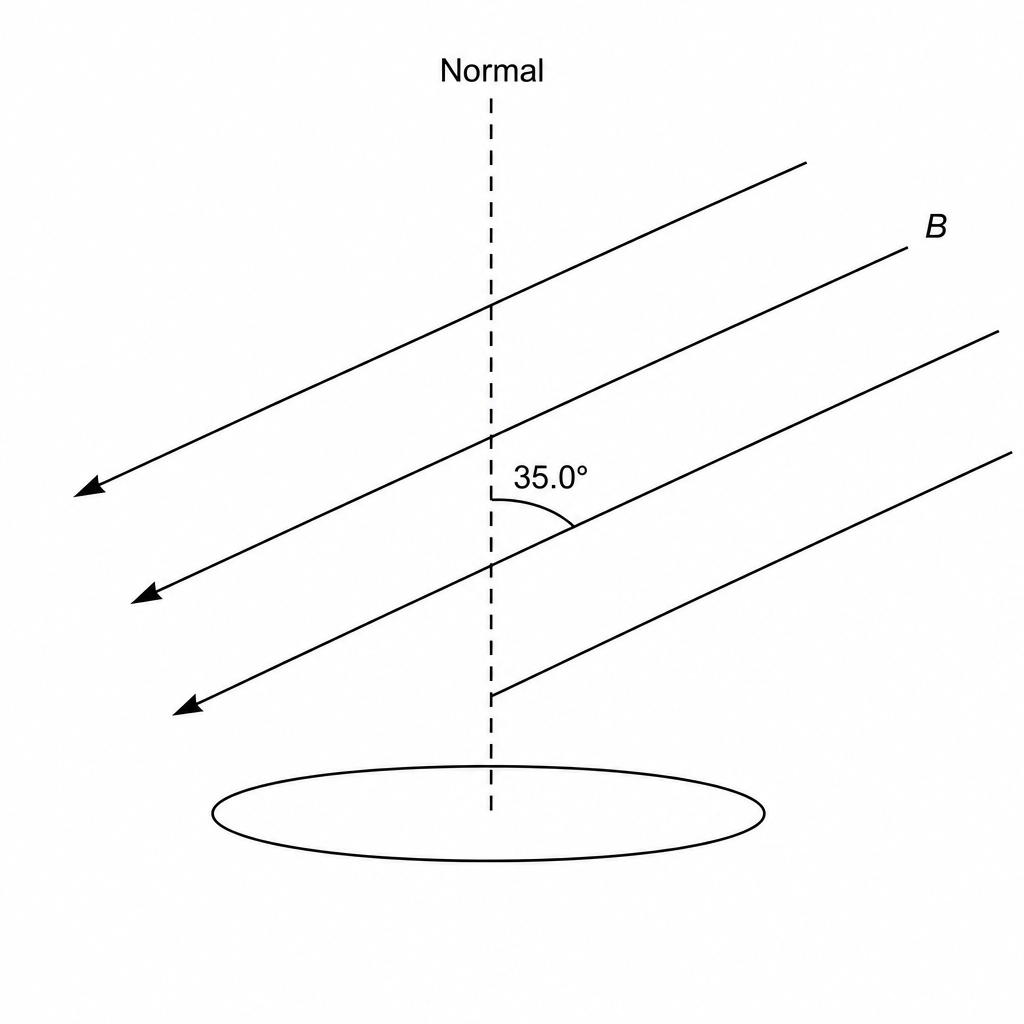

A flat horizontal coil has 300 turns. A dashed vertical line represents the normal to the plane of the coil. Several parallel magnetic field lines pass through the coil, pointing downwards and to the left, making an angle of 35.0° with the vertical normal line.

The coil is placed horizontally in a uniform magnetic field. The magnetic flux density is $T0.0400\text{ T}$ . The magnetic field is at an angle of $35.0∘35.0^\circ$ to the vertical.

What is the magnetic flux linkage for this coil?

[3]
