Force-extension graphs and elastic energy
x

Reading a force-extension graph

Reading a force-extension graph

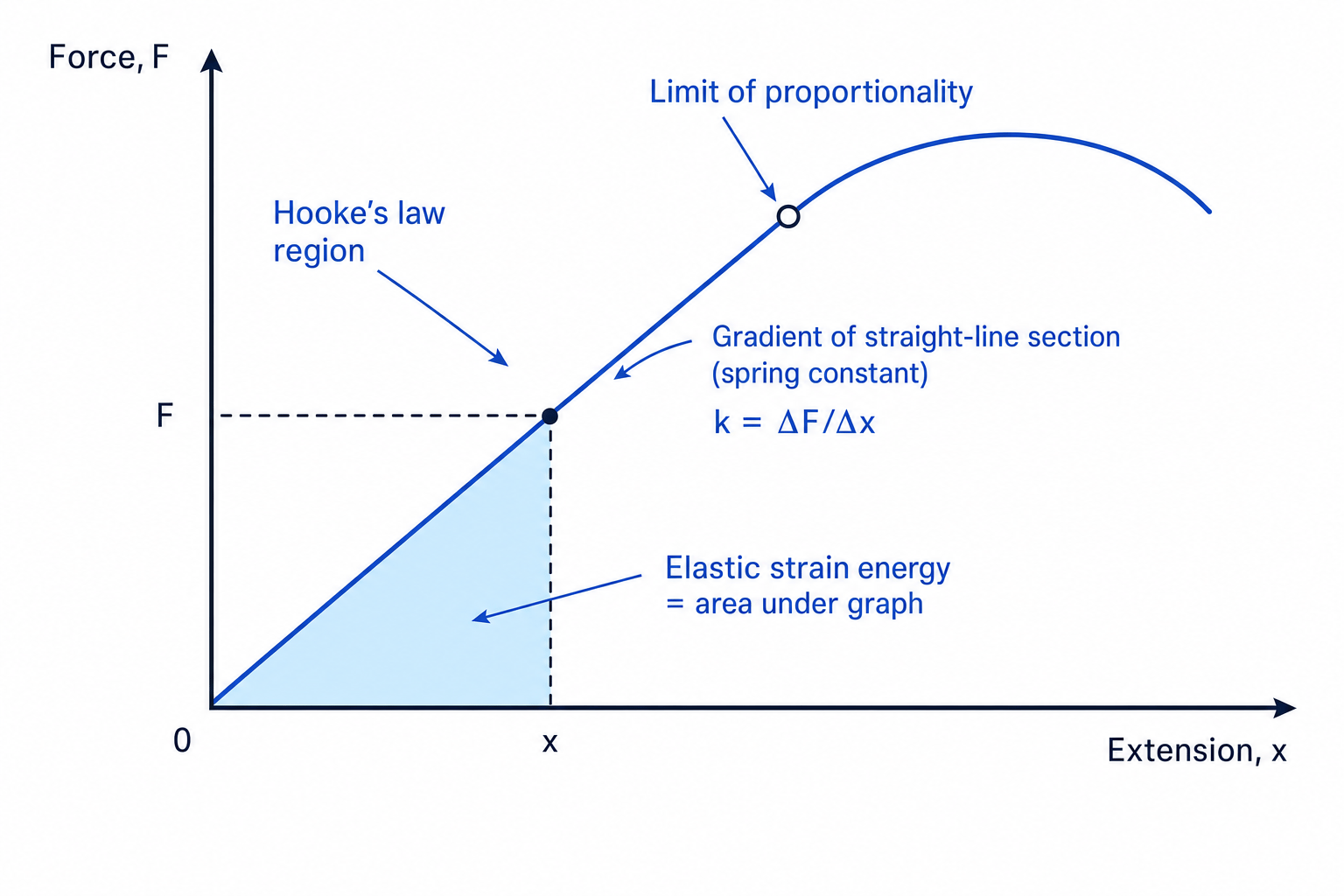

Force-extension graph with a straight Hooke's law region from the origin, a labelled limit of proportionality, the gradient labelled as spring constant, and the shaded area under the graph showing elastic strain energy

A force-extension graph shows how the stretching force on a spring, wire, or rubber band changes as it gets longer. The horizontal axis represents extension xxx, while the vertical axis represents force FFF.

Force-extension graphs and elastic energy Lesson

  1. A Level
  2. /Physics
  3. /Force-extension graphs and elastic energy

Step-by-step lessons on Edexcel A Level Physics Force-extension graphs and elastic energy. Each one builds up to exam-style questions. Physics is one of the most mathematically demanding A Levels -- at least 40% of the marks across the three papers require maths skills at Level 2 (GCSE) standard or above, so build calculation and graph-handling fluency alongside the conceptual content from the start.
