Inside the X-ray tube

Inside the X-ray tube

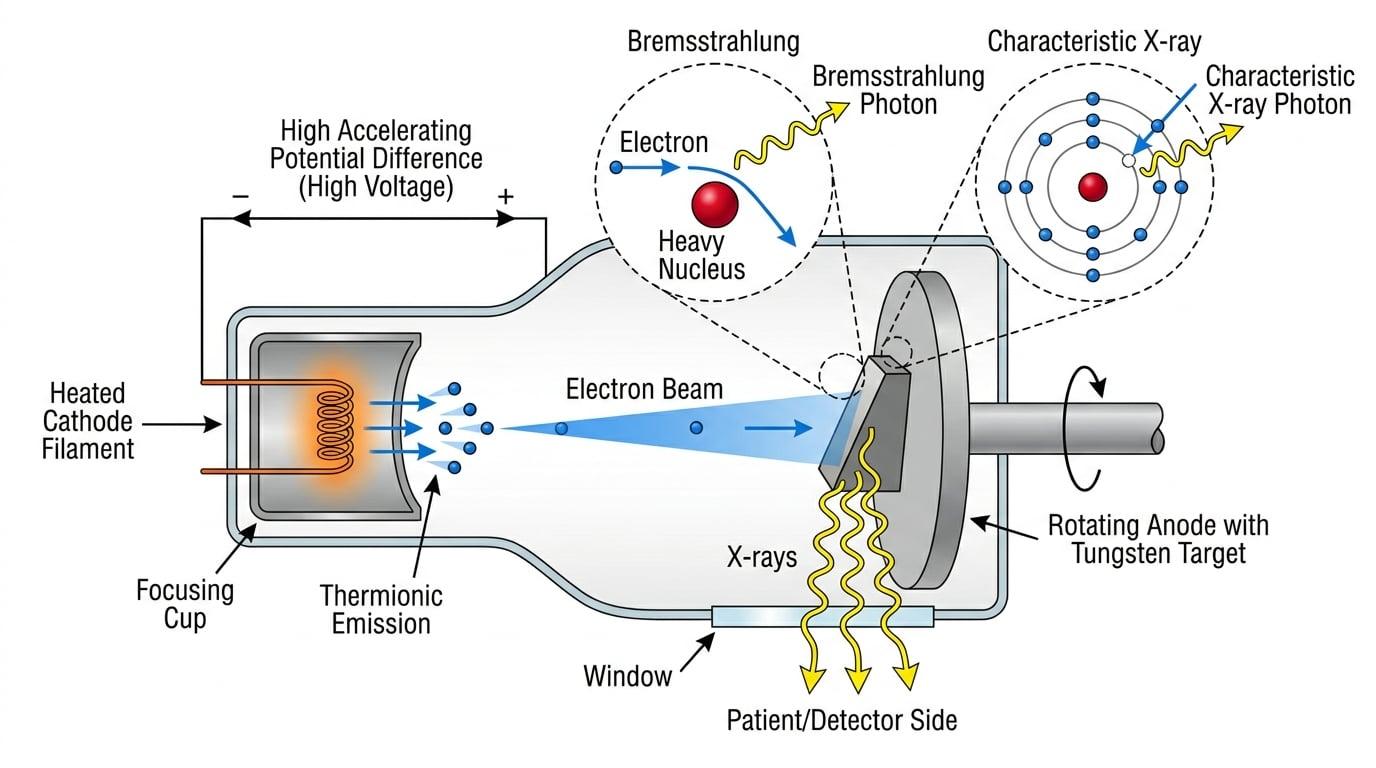

Side-view diagram of a diagnostic X-ray tube with heated cathode, accelerating electrons, angled tungsten target, and X-rays emerging A diagnostic X-ray tube uses a heated cathode filament to release electrons by thermionic emission. A large accelerating potential difference drives these electrons onto a tungsten anode at high speed.
