What a MOSFET is

What a MOSFET is

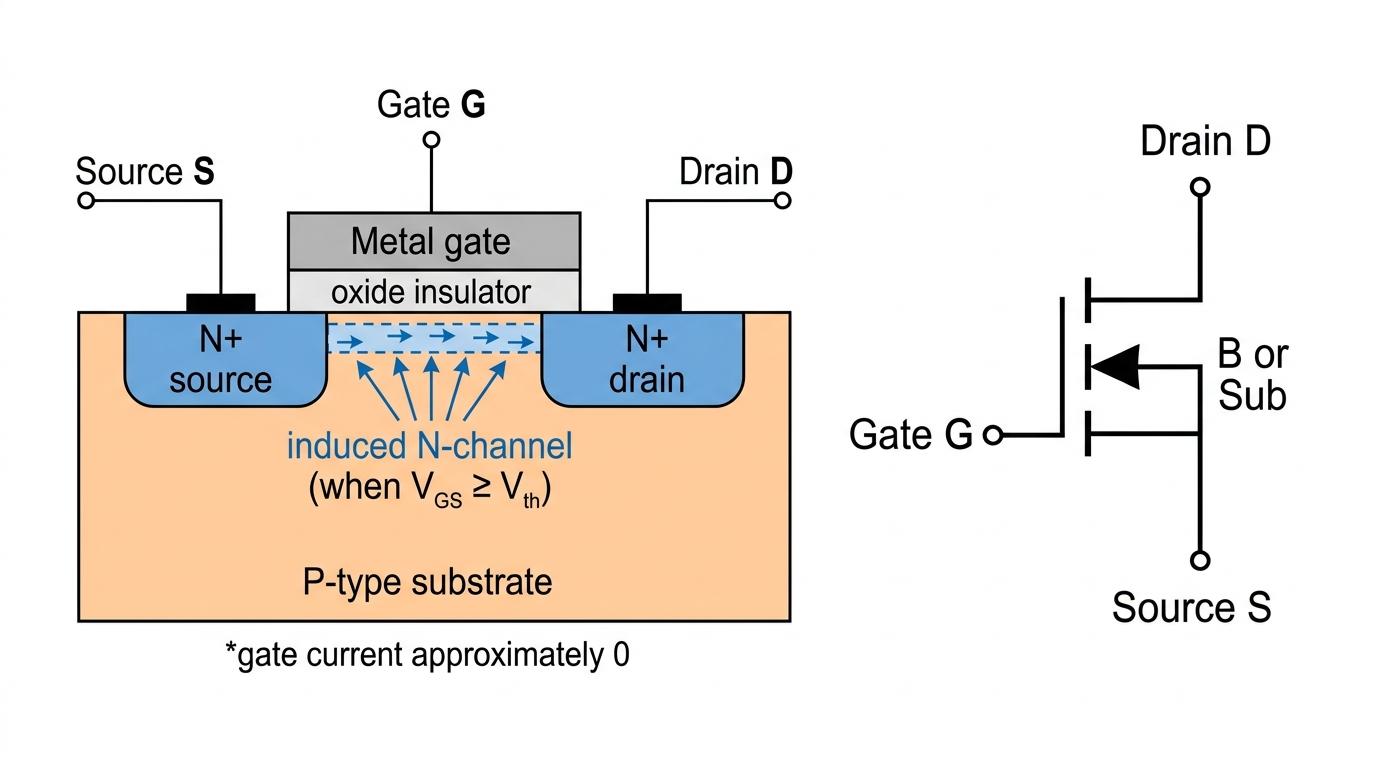

Cross-section of an N-channel enhancement MOSFET showing gate, oxide layer, source, drain, P-type substrate, and an induced channel for positive gate voltage

For A-level Physics, you only need the N-channel, enhancement mode MOSFET. It has three terminals: Gate, Source, and Drain.
