3.2 Box Plots

EasyMedium
1234567891011121314151617181920212223242526
Question 3

In a study of how students use their mobile telephones, the phone usage of a random sample of 11 students was examined for a particular week.

The total length of calls, y y\,y minutes, for the 11 students was

14, 22, 31, 34, 45, 49, 52, 54, 58, 74, 108 14,\ 22,\ 31,\ 34,\ 45,\ 49,\ 52,\ 54,\ 58,\ 74,\ 108 14, 22, 31, 34, 45, 49, 52, 54, 58, 74, 108

A value greater than Q3+1.5(Q3−Q1)Q_3+1.5(Q_3-Q_1)Q3​+1.5(Q3​−Q1​) or smaller than Q1−1.5(Q3−Q1)Q_1-1.5(Q_3-Q_1)Q1​−1.5(Q3​−Q1​) is defined as an outlier.

a.

Find the median and quartiles for these data.

[3]
b.

Show that 108 is the only outlier.

[2]
c.

Draw a box plot for these data, indicating clearly the position of the outlier.

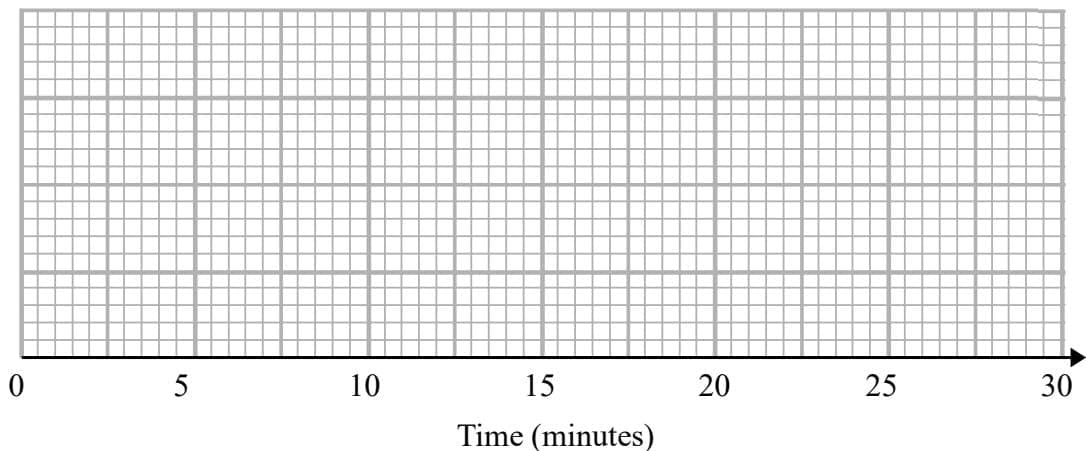

A grid for drawing a box plot. The grid is 10 units wide and 4 units high, with each unit divided into 10 smaller squares, totaling 100 squares.

[3]
Markscheme

3.2 Box Plots Questions

  1. A Level
  2. /Maths
  3. /3.2 Box Plots

27 exam-style questions on Edexcel A Level Maths 3.2 Box Plots. Each one has a worked solution and a mark scheme showing where the marks go.
