Question 4
Easy

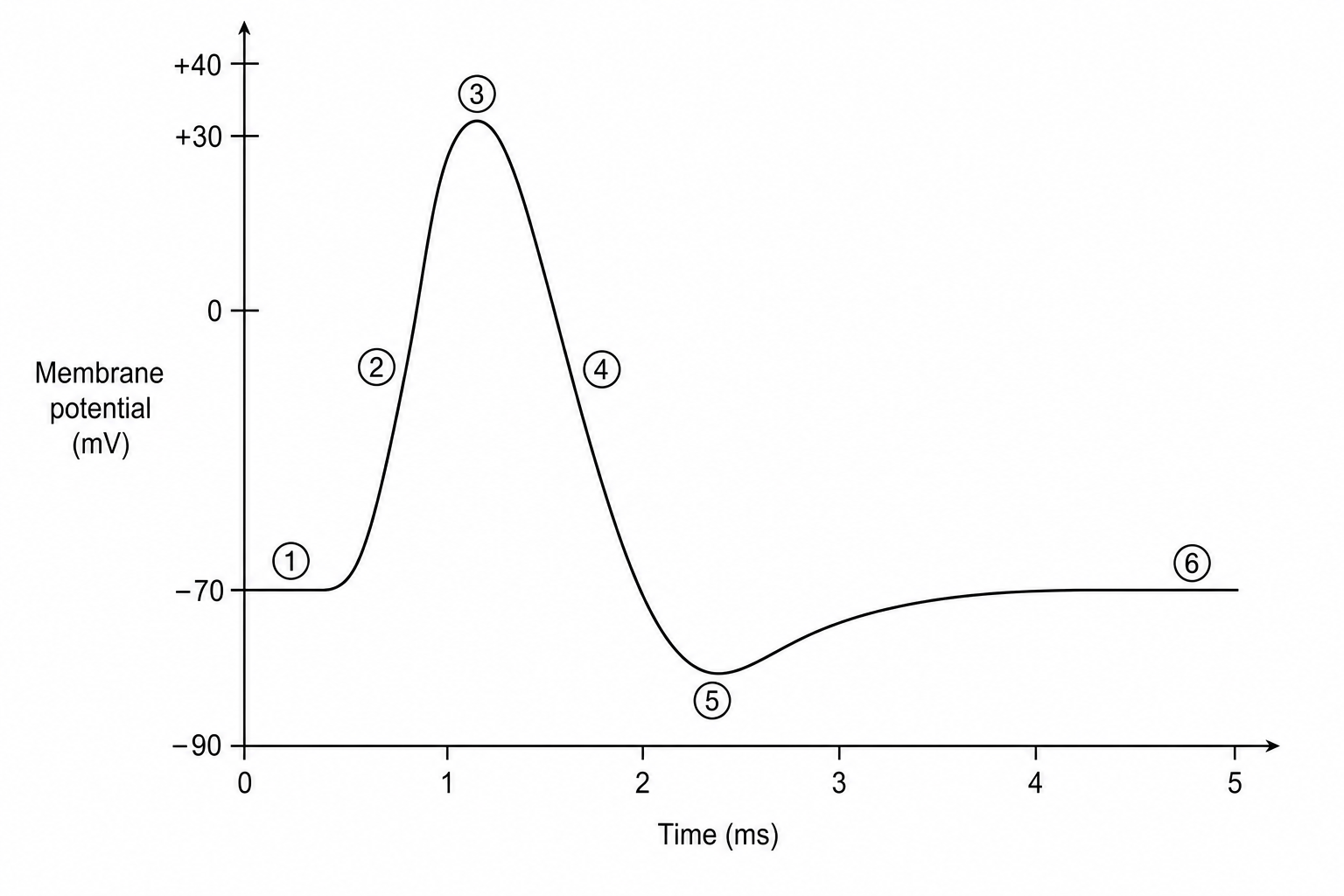

The graph represents the potential difference across the membrane of an axon during an action potential.

Action potential graph

Which row in the table correctly describes the events occurring at the specified position on the graph?

Position on graphVoltage-gated Na+\text{Na}^+Na+ channelsVoltage-gated K+\text{K}^+K+ channelsDirection of net diffusion
A2OpenClosedNa+\text{Na}^+Na+ into the cell
B4OpenOpenK+\text{K}^+K+ out of the cell
C5ClosedClosedK+\text{K}^+K+ into the cell
D1OpenClosedNa+\text{Na}^+Na+ out of the cell

Row A

Row B

Row C

Row D
