Question 12

In a study on marine microbiology, researchers investigated the metabolic activity of microbial communities surrounding deep-sea hydrothermal vents. They measured the concentrations of two key metabolic enzymes, RubisCO and methyl-coenzyme M reductase (MCR), across different marine environments.

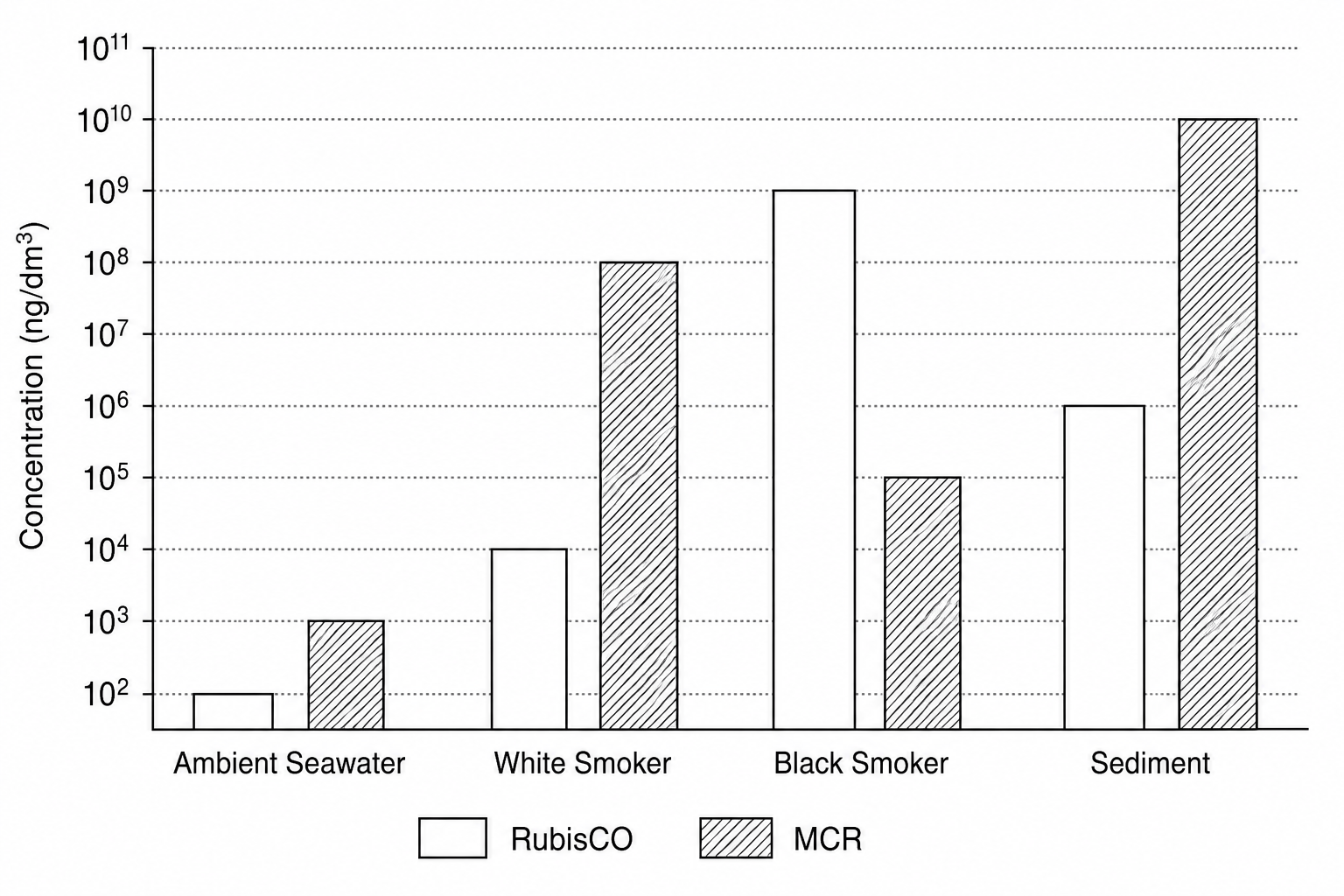

The results are shown in the logarithmic bar chart below:

Logarithmic bar chart of Enzyme Concentrations

a.

Calculate the order of magnitude by which the concentration of MCR in the sediment is higher than the concentration of RubisCO in the white smoker fluid. Show your working.

[3]
b.

A transmission electron micrograph of a spherical archaeal cell isolated from a hydrothermal vent sample is also analyzed. In the image:

  • The scale bar represents 3 μm3\ \mu\text{m}3 μm and has a measured length of 1.6 cm1.6\text{ cm}1.6 cm on paper.
  • The diameter of the spherical archaeal cell has a measured length of 5.6 cm5.6\text{ cm}5.6 cm on paper.

Calculate the actual volume of this archaeal cell. Assuming it is perfectly spherical, use the formula for the volume of a sphere:

V=43πr3 V = \frac{4}{3}\pi r^3 V=34​πr3

Give your answer to four significant figures. Show your working.

[4]
